2563500
Part Number: 2563500
Product Information
Extended Description

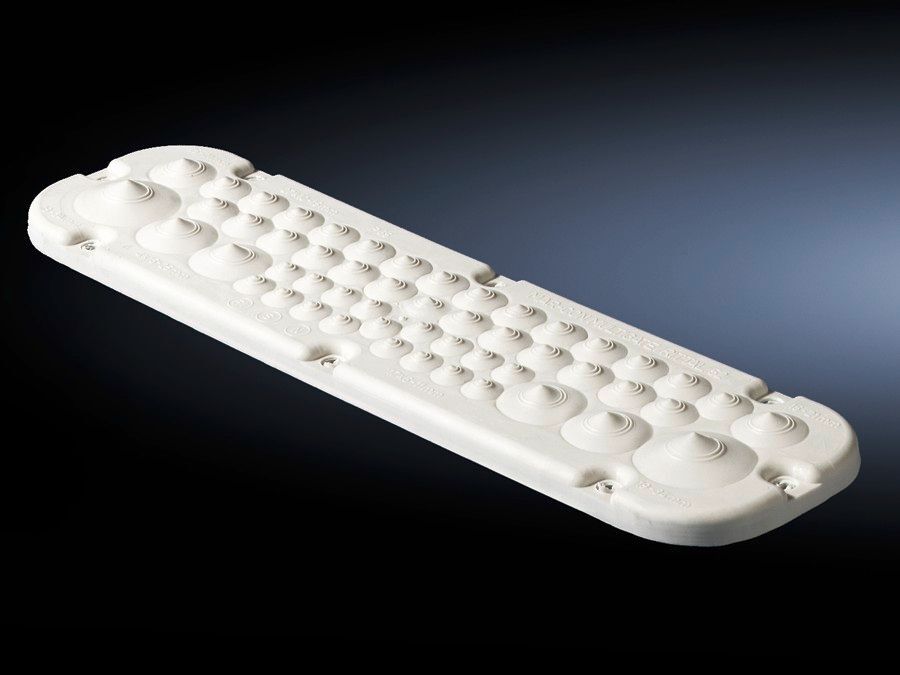

2563500 Rittal: SZ Plastic cable gland plate, with membranes, WD: 534x149 mm, size: 5
Article number
SZ 2563.500
Product description
Simply pierce the plastic with a sharp object, and pull through the cable.
Material
Plastic to UL 94-V0 | Halogen free
Colour
Similar to RAL 7035
Note
The allocation of gland plate sizes is indicated on the relevant enclosures
Dimensions
Width: 534 mm | Depth: 149 mm
To fit
Enclosure type: AE
Gland plate
Size: 5
Protection category to IEC 60 529
IP 65
No. of cable entries and Ø (mm) min.-max.
18 x 5-9
Packs of
1 pc(s).
Weight/pack
0.96 kg
Customs tariff number
39269097
EAN
4028177325616
ETIM 9
EC000211
ETIM 8
EC000211
ECLASS 8.0
27142421
Product description
SZ Plastic cable gland plate, with membranes, WD: 534x149 mm, size: 5
