2686600
Part Number: 2686600
Manufacturer
Rittal
Part number
2686600
Alt Part Number
TP 2686.600
Product Information
Extended Description

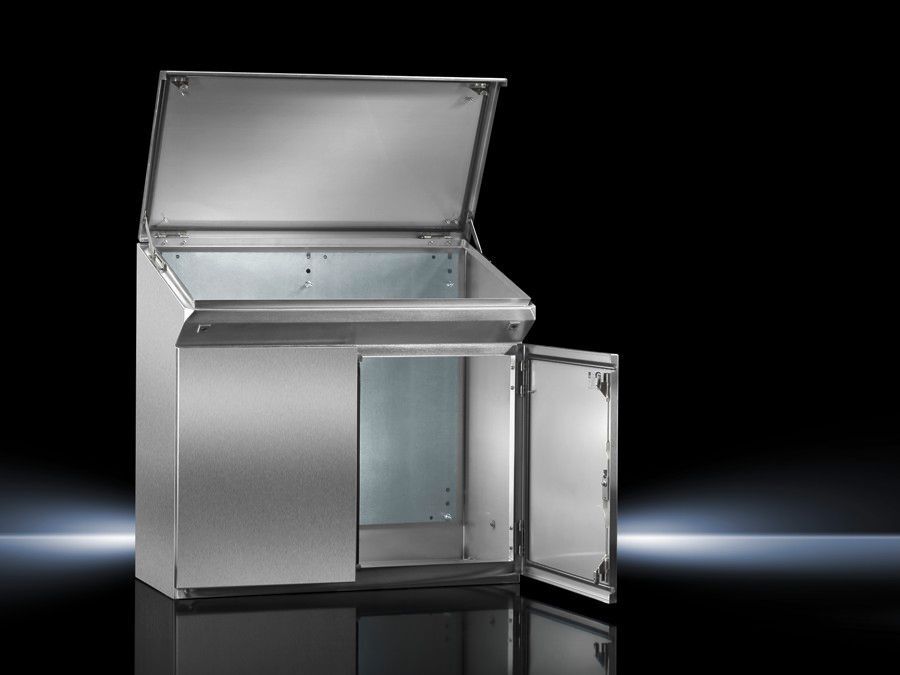

2686600 Rittal: TP One-piece console, WHD: 1200x960x400/D2: 480 mm, stainless steel, 1.4301
Article number
TP 2686.600
Material
Enclosure: Stainless steel 1.4301 (AISI 304), 1.5 mm | Door or double door and console lid: Stainless steel 1.4301 (AISI 304), 2.0 mm | Mounting plate: Sheet steel, 3.0Â mm
Surface finish
Enclosure, door, console lid and gland plates: Brushed, grain 400 | Mounting plate: Zinc-plated
Supply includes
Enclosure, solid back and sides | Door or double door at front, with locking rod | Console lid with lid stay and cam lock latched in the enclosure | Locks with double-bit insert | Gland plates, divided | Mounting plate
Dimensions
Width:Â 1,200 mm | Height:Â 960 mm
Dimensions mounting plate (W x H)
1,130 mm x 780 mm
Depth (top)
480 mm
Depth (bottom)
400 mm
Number of doors
2
IP protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 12
Basic material
Stainless steel 1.4301 (AISIÂ 304)
Dimensions
Width:Â 1,200 mm | Height:Â 960 mm | Depth (top):Â 480 mm | Depth (bottom):Â 400 mm
Packs of
1 pc(s).
Weight/pack
90.3 kg
Customs tariff number
94032080
EAN
4028177031432
ETIM 9
EC000784
ETIM 8
EC000784
ECLASS 8.0
27180504
Product description
TP One-piece console, WHD: 1200x960x400/D2: 480 mm, stainless steel, 1.4301
