2694500
Part Number: 2694500
Manufacturer
Rittal
Part number
2694500
Alt Part Number
TP 2694.500
Product Information
Extended Description

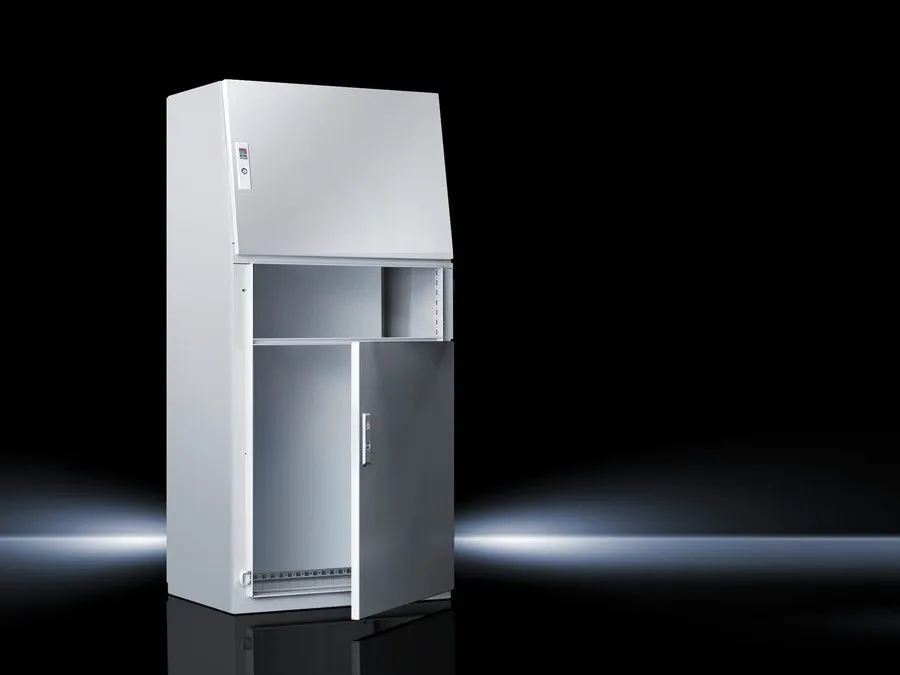

2694500 Rittal: TP Universal console, WHD: 600x1300x500 mm, Sheet steel, with short front door
Article number
TP 2694.500
Design
with short front door
Product modification
The universal console comes with the new mounting plate of the baying enclosure system VX25.
Material
Enclosure, gland plates: Sheet steel 1.5 mm | Door: Sheet steel, 2.0 mm | Mounting plate: Sheet steel, 3.0 mm
Surface finish
Enclosure and door: Dipcoat primed, powder-coated on the outside, textured paint | Mounting plate and gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure with door(s) | Mounting plate | Gland plates
Dimensions
Width: 600 mm | Height: 1,300 mm
Dimensions mounting plate (W x H)
499 mm x 1,196 mm
Depth (top)
417.5 mm
Depth (bottom)
500 mm
IK Code
IK08
Note
For universal console with short front door: The desk section should be fitted in order to maintain the protection category.
IP protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 12
Basic material
Sheet steel
Dimensions
Width: 600 mm | Height: 1,300 mm | Depth (top): 417.5 mm | Depth (bottom): 500 mm
Packs of
1 pc(s).
Weight/pack
77 kg
Customs tariff number
94032080
EAN
4028177031487
ETIM 9
EC000784
ETIM 8
EC000784
ECLASS 8.0
27180504
Product description
TP Universal console, WHD: 600x1300x500 mm, Sheet steel, with short front door
