2735560
Part Number: 2735560
Manufacturer
Rittal
Part number
2735560
Alt Part Number
FT 2735.560
Product Information
Extended Description

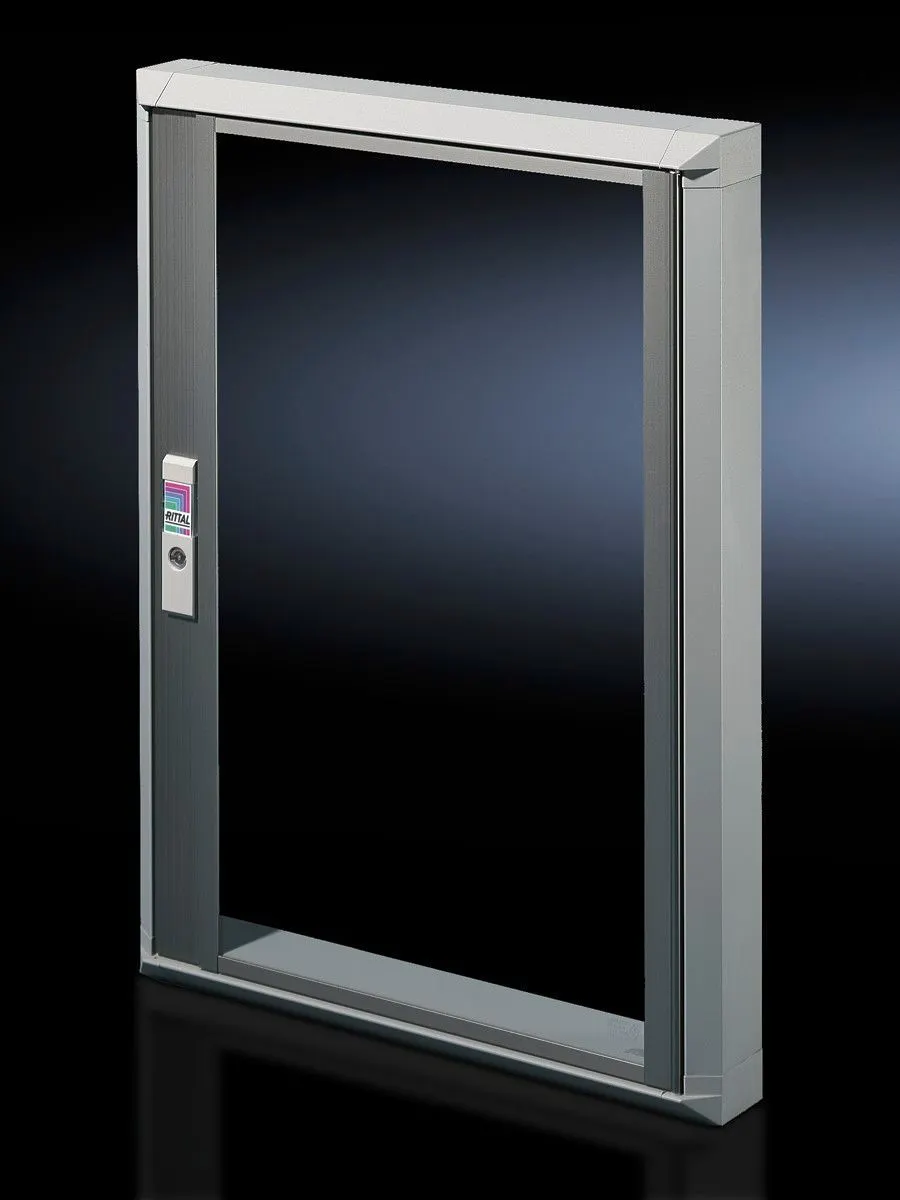

2735560 Rittal: FT System window, for VX, TS, VX SE, 30 section, WHD: 700x270x47 mm, for W: 800 mm
Article number
FT 2735.560
Design
30 section
Product description
To conceal display and operating instruments or cut-outs, and to protect against dirt and liquids as well as unauthorised access.
Material
Extruded aluminium section with die-cast zinc corner pieces and single-pane safety glass.
Surface finish
Base frame: Powder-coated on the outside in RAL 7035 | Hinge and lock section: Natural-anodised
Value base frame
Made from single-pane safety glass: High level of resistance to solvents and scratches, anti-static, reduced risk of injury if broken.
Value base frame
Easily screw-fastened to the door thanks to modified dimensions (tubular door frame may be used as a drilling template).
Protection category to IEC 60 529
IP 54
Note
Standard double-bit lock insert may be exchanged for lock inserts 27 mm, type A, and/or for lock system Ergoform-S (except H = 270 mm).
To fit
Enclosure type: VX | TS | VX SE | Width: = 800 mm
Dimensions
Width: 700 mm | Height: 270 mm | Depth: 47 mm
Visible area
Viewing window width: 563 mm | Viewing window height: 198 mm
Build depth for components (max.)
33 mm
Packs of
1 pc(s).
Weight/pack
4.1 kg
Customs tariff number
76101000
EAN
4028177476332
ETIM 9
EC002527
ETIM 8
EC002527
ECLASS 8.0
27182301
Product description
FT System window, for VX, TS, VX SE, 30 section, WHD: 700x270x47 mm, for W: 800 mm
