2740000
Part Number: 2740000
Product Information
Extended Description

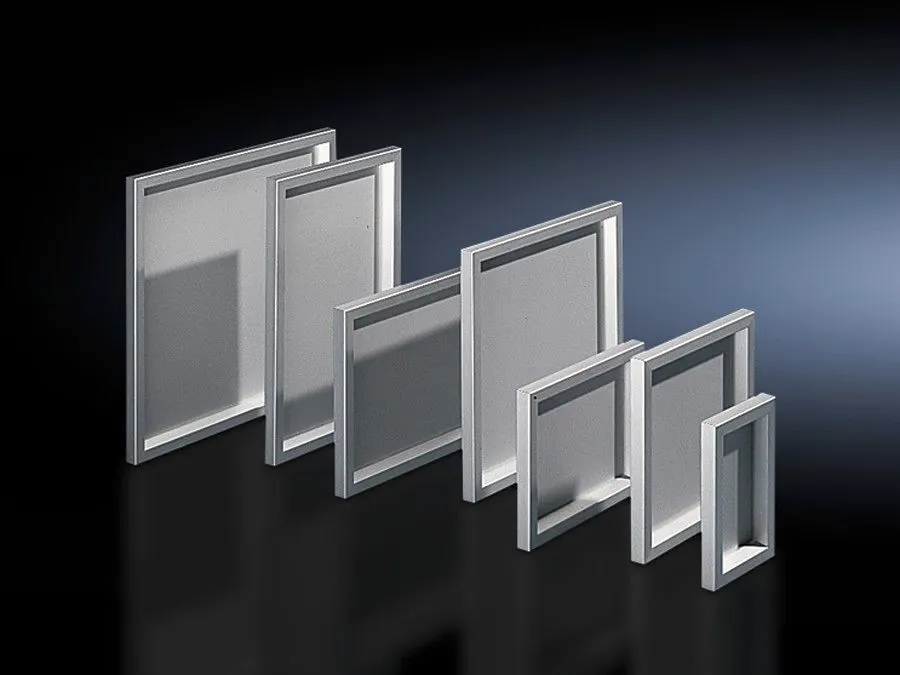

2740000 Rittal: FT Operating panel, WHD: 197x297x34 mm, for WH: 200x300 mm
Article number
FT 2740.000
Product description
For external mounting on an AE instead of a door and on surfaces. Frame construction with corner connectors on the inside, 3 mm aluminium plate secured from the inside and sealed against the frame.
Material
Aluminium, natural anodised
Supply includes
Aluminium frame | Display panel | Hinges | Brackets
Protection category to IEC 60 529
IP 54
Note
When installing instead of a door, the cam lock is required
To fit
Enclosure type: AE | Width: = 200 mm | Height: = 300 mm
Dimensions
Width: 197 mm | Height: 297 mm | Depth: 34 mm
Dimensions of aluminium plate
Width: 143 mm | Height: 243 mm
Area available for population
Width: 127 mm | Height: 227 mm
Note on Model No.
With AE, only for use on the rear panel
Packs of
1 pc(s).
Weight/pack
1.7 kg
Customs tariff number
76169990
EAN
4028177031838
ETIM 9
EC000747
ETIM 8
EC000747
ECLASS 8.0
27182204
Product description
FT Operating panel, WHD: 197x297x34 mm, for WH: 200x300 mm
