2786000
Part Number: 2786000
Product Information
Extended Description

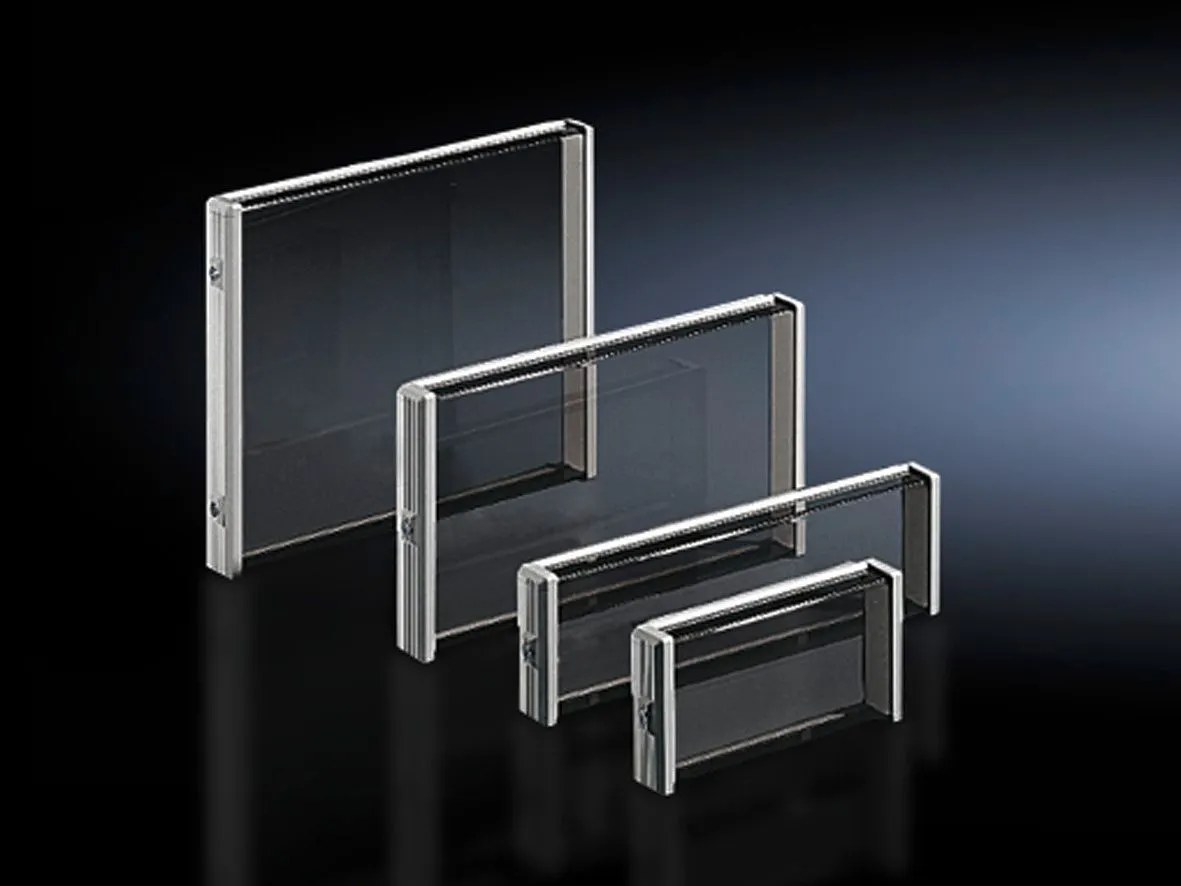

2786000 Rittal: FT Acrylic glazed cover, 482.6 mm (19"), WHD: 500x200x47,5 mm
Article number
FT 2786.000
Design
Metric
Product description
With security lock, lock no. 3524 E.
Material
Frame: Extruded aluminium sections with die-cast corner pieces | Glass panel: Smoked acrylic
Supply includes
Hinges and assembly parts. | Lock insert no. 3524 E
Protection category to IEC 60 529
IP 54
Dimensions
Width: 500 mm | Height: 200 mm | Depth: 47.5 mm
Visible area
Viewing window width: 460 mm | Viewing window height: 179.5 mm
Build depth for components (max.)
43 mm
Packs of
1 pc(s).
Weight/pack
1.6 kg
Customs tariff number
39269097
EAN
4028177032316
ETIM 9
EC002527
ETIM 8
EC002527
ECLASS 8.0
27182301
Product description
FT Acrylic glazed cover, 482.6 mm (19"), WHD: 500x200x47,5 mm
