2793560
Part Number: 2793560
Manufacturer
Rittal
Part number
2793560
Alt Part Number
FT 2793.560
Product Information
Extended Description

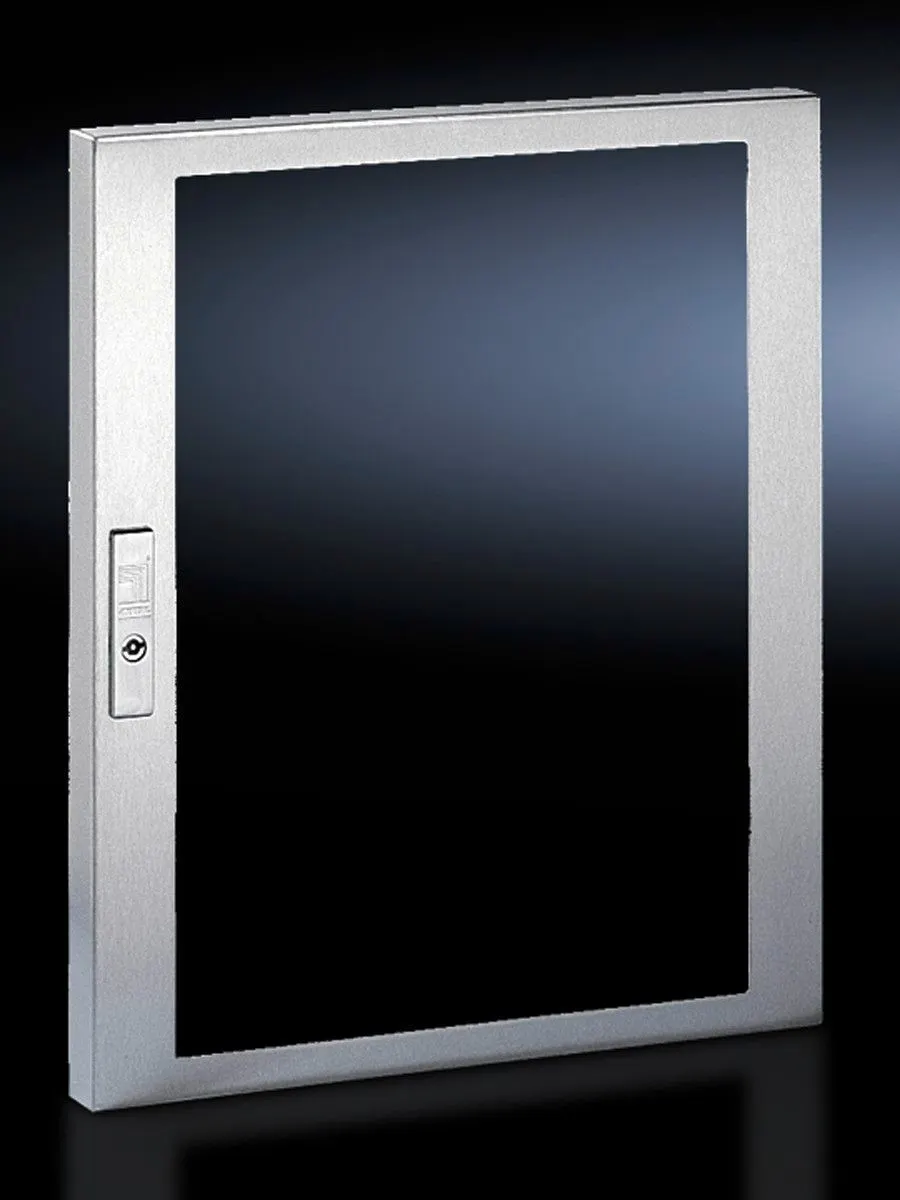

2793560 Rittal: FT Viewing window, WHD: 522x600x38 mm, Stainless steel 1.4301
Article number
FT 2793.560
Product description
Fitted as standard with internal 130° hinges and all-round seal.
Material
Stainless steel 1.4301 (AISI 304) | Single-pane safety glass
Supply includes
Assembly parts
Protection category to IEC 60 529
IP 54
Note
Standard double-bit lock insert may be exchanged for lock inserts 27 mm, type A, and/or for lock system Ergoform-S (except H = 270 mm).
Dimensions
Width: 522 mm | Height: 600 mm | Depth: 38 mm
Visible area
Viewing window width: 408 mm | Viewing window height: 543 mm
Build depth for components (max.)
31 mm
Packs of
1 pc(s).
Weight/pack
6.5 kg
Customs tariff number
76101000
EAN
4028177149656
ETIM 9
EC002527
ETIM 8
EC002527
ECLASS 8.0
27182204
Product description
FT Viewing window, WHD: 522x600x38 mm, Stainless steel 1.4301
