2820122
Part Number: 2820122
Product Information
Extended Description

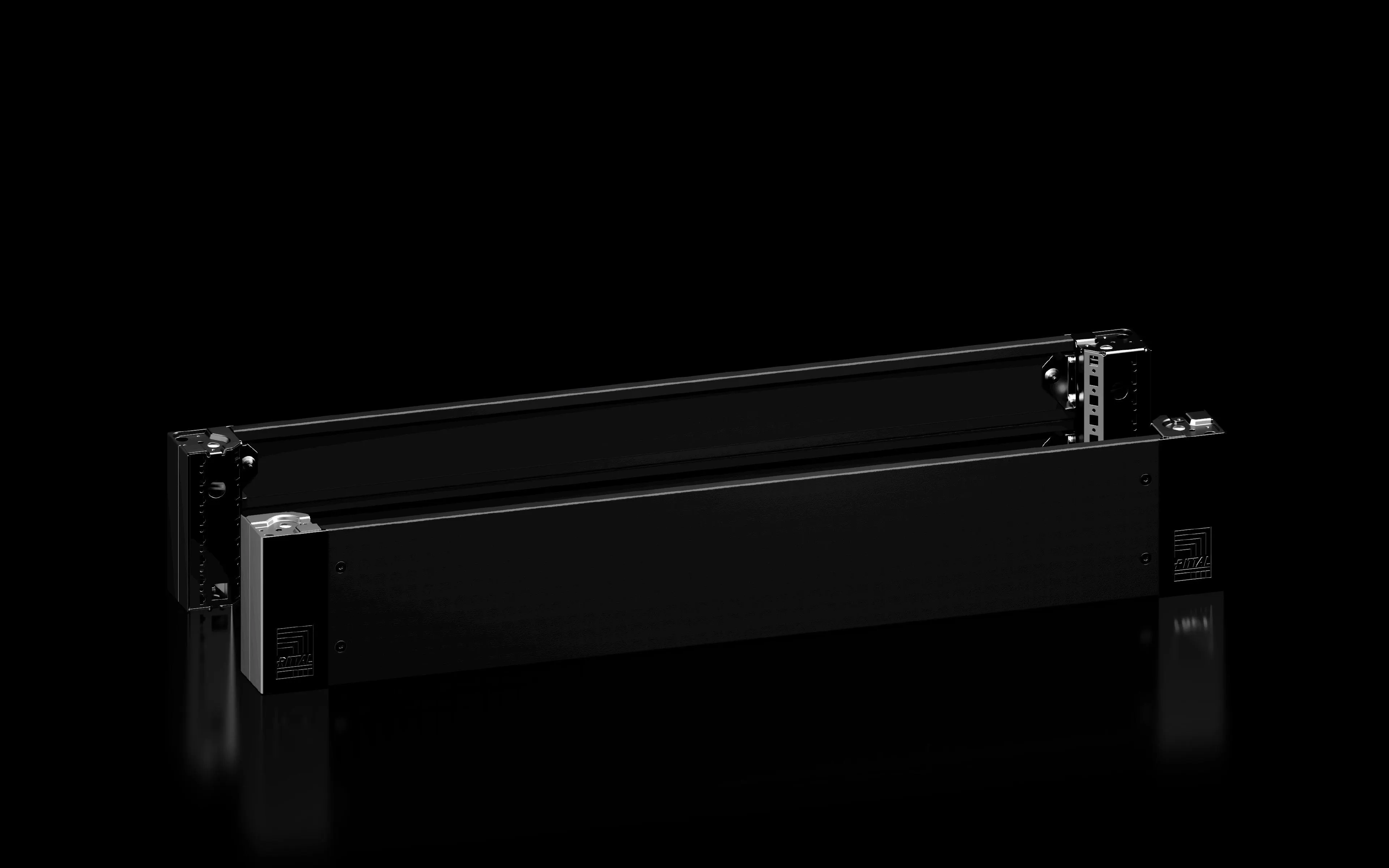

2820122 Rittal: AX Base/plinth corner pieces with base/plinth trim panels, front and rear, H: 200 mm, for W: 1200 mm
Article number
AX 2820.122
Product description
Base/plinth corner piece with large opening for optimum access to the screw-fastening point, may be concealed with a plastic corner cover.
Material
Base/plinth corner piece: Sheet steel | Base/plinth trim panel front/rear: Sheet steel | Corner cover: Plastic
Colour
RAL 9005
Supply includes
4 base/plinth corner pieces, 200 mm high | 4 corner covers | 1 base/plinth trim panel, front/rear, 200 mm high | 2 base/plinth trim panels, front/rear, 100 mm high | Assembly parts
Note
Base/plinth elements are required at the side to finish off a base/plinth unit
Dimensions
Height: 200 mm
To fit
Enclosure type: AX | Width: = 1,200 mm
Type rating to UL 50E
Type 1
Packs of
2 pc(s).
Weight/pack
5.79 kg
Customs tariff number
94039910
EAN
4028177942622
ETIM 9
EC000721
ETIM 8
EC000721
ECLASS 8.0
27182003
Product description
AX Base/plinth corner pieces with base/plinth trim panels, front and rear, H: 200 mm, for W: 1200 mm
