2820310
Part Number: 2820310
Product Information
Extended Description

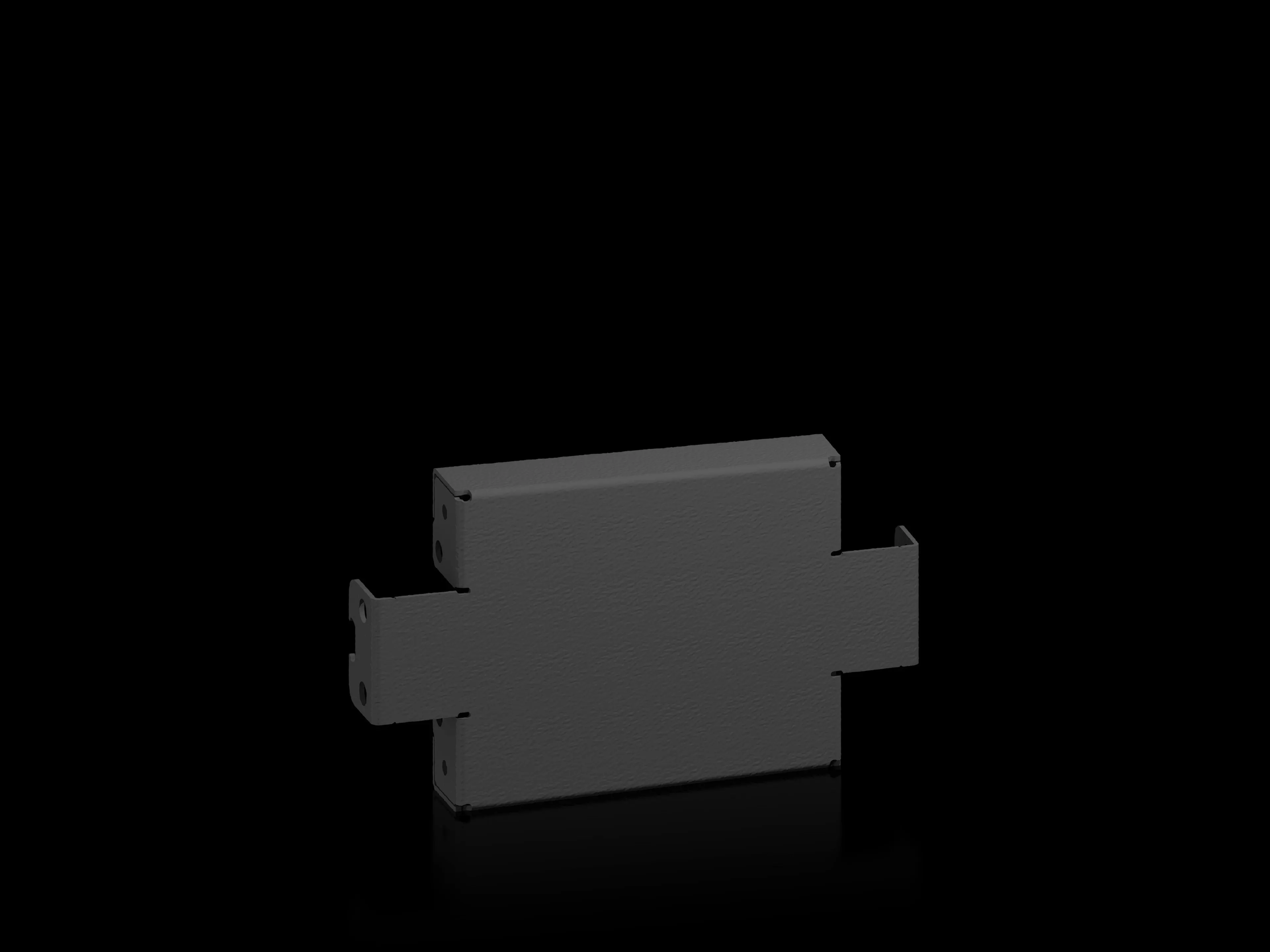

2820310 Rittal: AX Base/plinth trim panels, sides, H: 100 mm, for D: 300 mm
Article number
AX 2820.310
Product description
To finish off a base/plinth unit at the sides and for additional stabilisation or for the interior configuration of bayed base/plinths. One 200 mm high or two 100 mm high trim panels may optionally be fitted on 200 mm high base/plinths.
Material
Sheet steel
Colour
RAL 9005
Supply includes
Assembly parts
Note
Components from the 1st generation base/plinth system cannot be combined with components from the 2nd generation base/plinth system
Dimensions
Height: 100 mm
To fit
Enclosure type: AX | Depth: = 300 mm
Type rating to UL 50E
Type 1
Packs of
2 pc(s).
Weight/pack
0.33 kg
Customs tariff number
94039910
EAN
4028177942554
ETIM 9
EC000721
ETIM 8
EC000721
ECLASS 8.0
27182003
Product description
AX Base/plinth trim panels, sides, H: 100 mm, for D: 300 mm
