2830410
Part Number: 2830410
Product Information
Extended Description

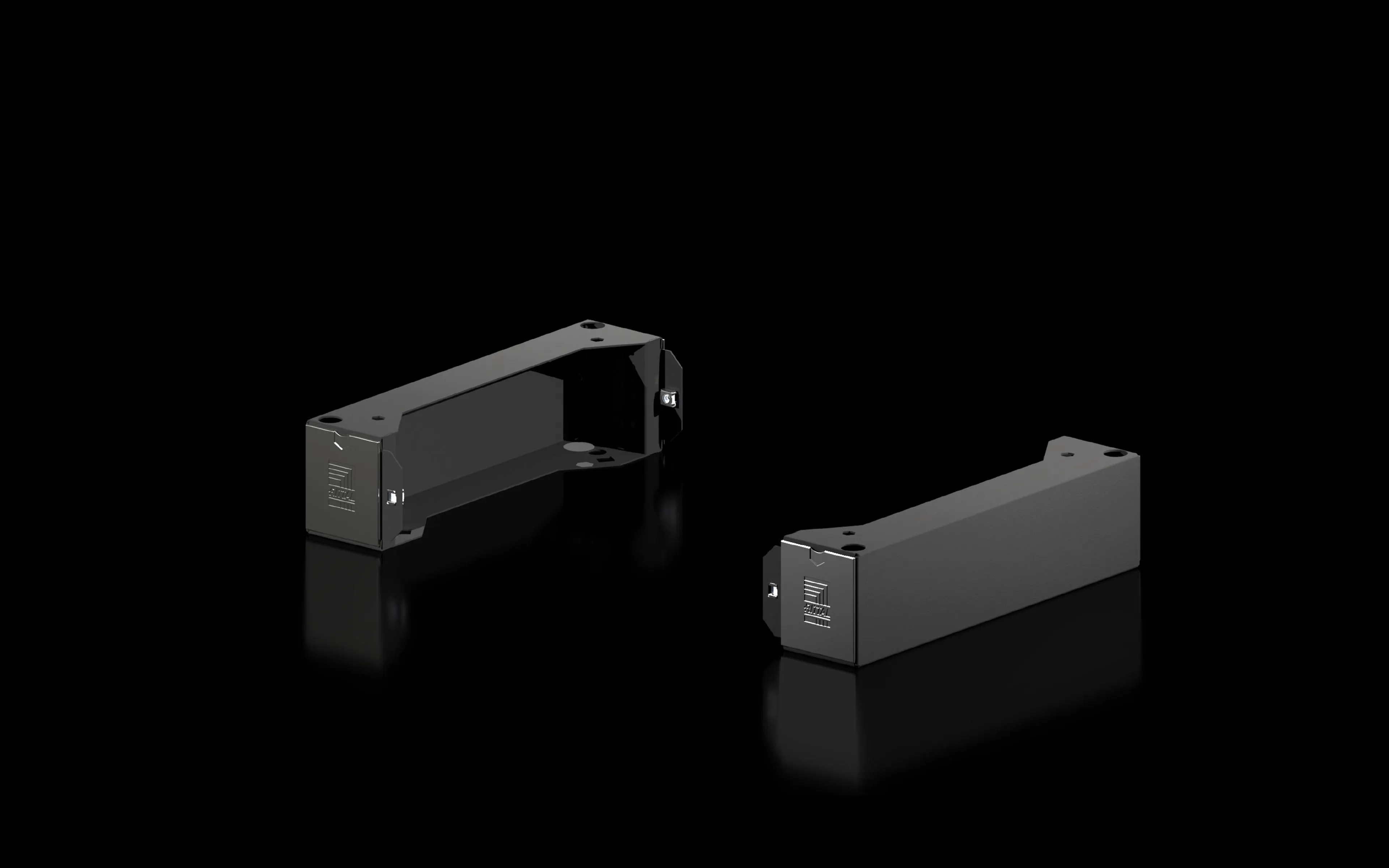

2830410 Rittal: AX base/plinth component, sides, height: 100 mm, for depth: 400 mm
Article number
AX 2830.410
Design
New version
Product description
Base/plinth component for mounting in the depth and for stabilising the base/plinth.
Material
Base/plinth components: Sheet steel | Cover caps: Plastic
Colour
RAL 9005
Supply includes
2 base/plinth components | 2 cover caps | Assembly parts
Note
Components from the 1st generation base/plinth system cannot be combined with components from the 2nd generation base/plinth system
Dimensions
Height: 100 mm
To fit
Enclosure type: AX | Depth: = 400 mm
Packs of
2 pc(s).
Customs tariff number
94039910
EAN
4028177037649
ETIM 9
EC000721
ETIM 8
EC000721
ECLASS 8.0
27182003
Product description
AX base/plinth component, sides, height: 100 mm, for depth: 400 mm
