2899320

Part Number: 2899320
2899320
Manufacturer
Rittal
Part number
2899320
Category
Alt Part Number
SZ 2899.320

Product Information

Extended Description

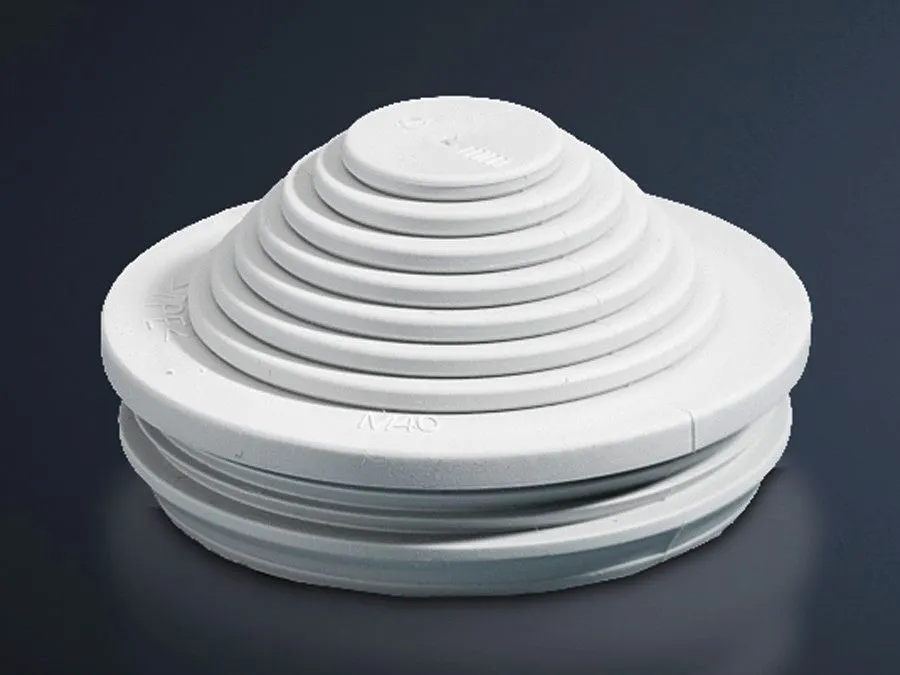

2899320 Rittal: SZ Stepped collar, for wall thickness from 1,5 bis 4,5 mm, for hole M32, Sealing range: 13-26.5 mm
Article number
SZ 2899.320
Product description
For cable entry, simply cut off at the required level to match the cable diameter.
Applications
For wall thicknesses from 1.5 to 4.5 mm
Material
Cover: Thermoplastic elastomer
Dimensions
Thread: M32
For wall thickness (max.)
1.5 ‐ 4.5 mm
IP protection category to IEC 60 529
IP 54 with careful cable entry
For cable diameters
13 ‐ 26.5 mm
Packs of
25 pc(s).
Weight/pack
0.15 kg
Customs tariff number
39269097
EAN
4028177389625
ETIM 9
EC000879
ETIM 8
EC000879
ECLASS 8.0
27069216
Product description
SZ Stepped collar, for wall thickness from 1,5 bis 4,5 mm, for hole M32, Sealing range: 13-26.5 mm
View this page as PDF DE, EN
