3052000
Part Number: 3052000
Manufacturer
Rittal
Part number
3052000
Category
Alt Part Number
SV 3052.000
Product Information
Extended Description

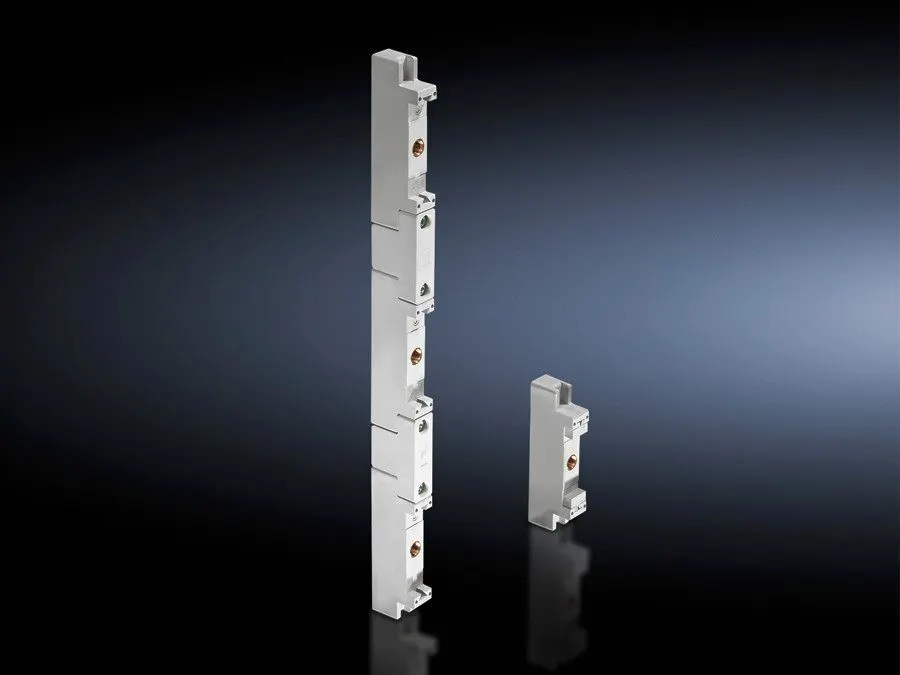

3052000 Rittal: SV Busbar support, 3-pole, 185 mm bar centre distance, for busbar WH: 50-80x10 mm
Article number
SV 3052.000
Material
Fibreglass-reinforced, thermoplastic polyester (PBT) | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
Number of poles
3-pole | 185 mm
To fit busbars
50 x 10 mm
Rated current max.
1,600 A
Note on Model No.
The base component of the busbar support may also be used as a single-pole support.
Dimensions
Width: 24 mm | Height: 515 mm | Depth: 51 mm
Packs of
2 pc(s).
Weight/pack
1.338 kg
Customs tariff number
85469010
EAN
4028177035751
ETIM 9
EC001166
ETIM 8
EC001166
ECLASS 8.0
27400607
Product description
SV Busbar support, 3-pole, 185 mm bar centre distance, for busbar WH: 50-80x10 mm
