3073000

Part Number: 3073000
3073000
Manufacturer
Rittal
Part number
3073000
Category
Alt Part Number
SV 3073.000

Product Information

Extended Description

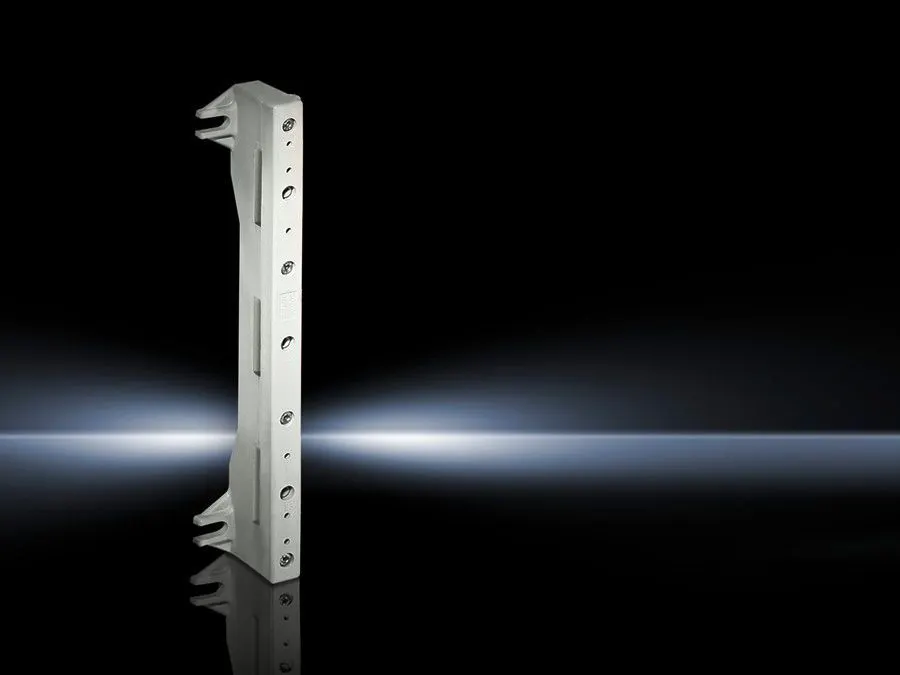

3073000 Rittal: SV Busbar support, 3-pole, 100 mm bar centre distance, for busbar WH: 30-60x10 mm
Article number
SV 3073.000
Material
Fibreglass-reinforced, thermoplastic polyester (PBT) | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
Number of poles
3-pole | 100 mm
To fit busbars
30 x 10 mm
Rated current max.
1,250 A
Dimensions
Width: 22 mm | Height: 320 mm | Depth: 70 mm
Packs of
4 pc(s).
Weight/pack
1.82 kg
Customs tariff number
85469010
EAN
4028177036079
ETIM 9
EC001166
ETIM 8
EC001166
ECLASS 8.0
27400607
Product description
SV Busbar support, 3-pole, 100 mm bar centre distance, for busbar WH: 30-60x10 mm
