3091000
Part Number: 3091000
Manufacturer
Rittal
Part number
3091000
Category
Alt Part Number
SV 3091.000
Product Information
Extended Description

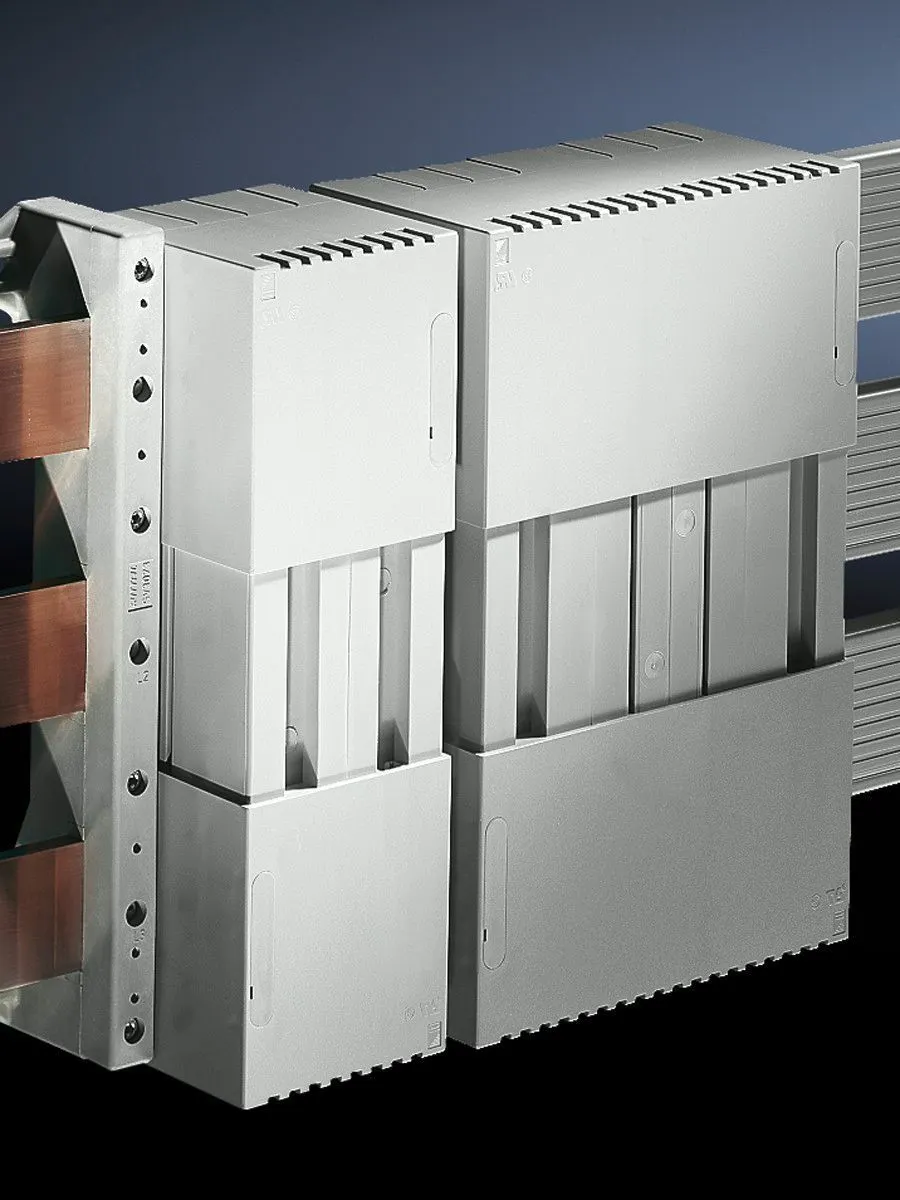

3091000 Rittal: SV System cover, WD: 200x110 mm, H: 230-325 mm
Article number
SV 3091.000
Product description
For conductor connection clamps and plate clamps.
Material
ABS | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
Height when mounted on 60 mm busbar systems
230 mm
Height when mounted on 100 mm busbar systems
325 mm
Note
For 3-pole systems with 60/100 mm bar centre distance
Dimensions
Width: 200 mm | Depth: 110 mm
Packs of
4 pc(s).
Weight/pack
2.596 kg
Customs tariff number
85472000
EAN
4028177036369
ETIM 9
EC000775
ETIM 8
EC000775
ECLASS 8.0
27142414
Product description
SV System cover, WD: 200x110 mm, H: 230-325 mm
