3105320
Part Number: 3105320
Product Information
Extended Description

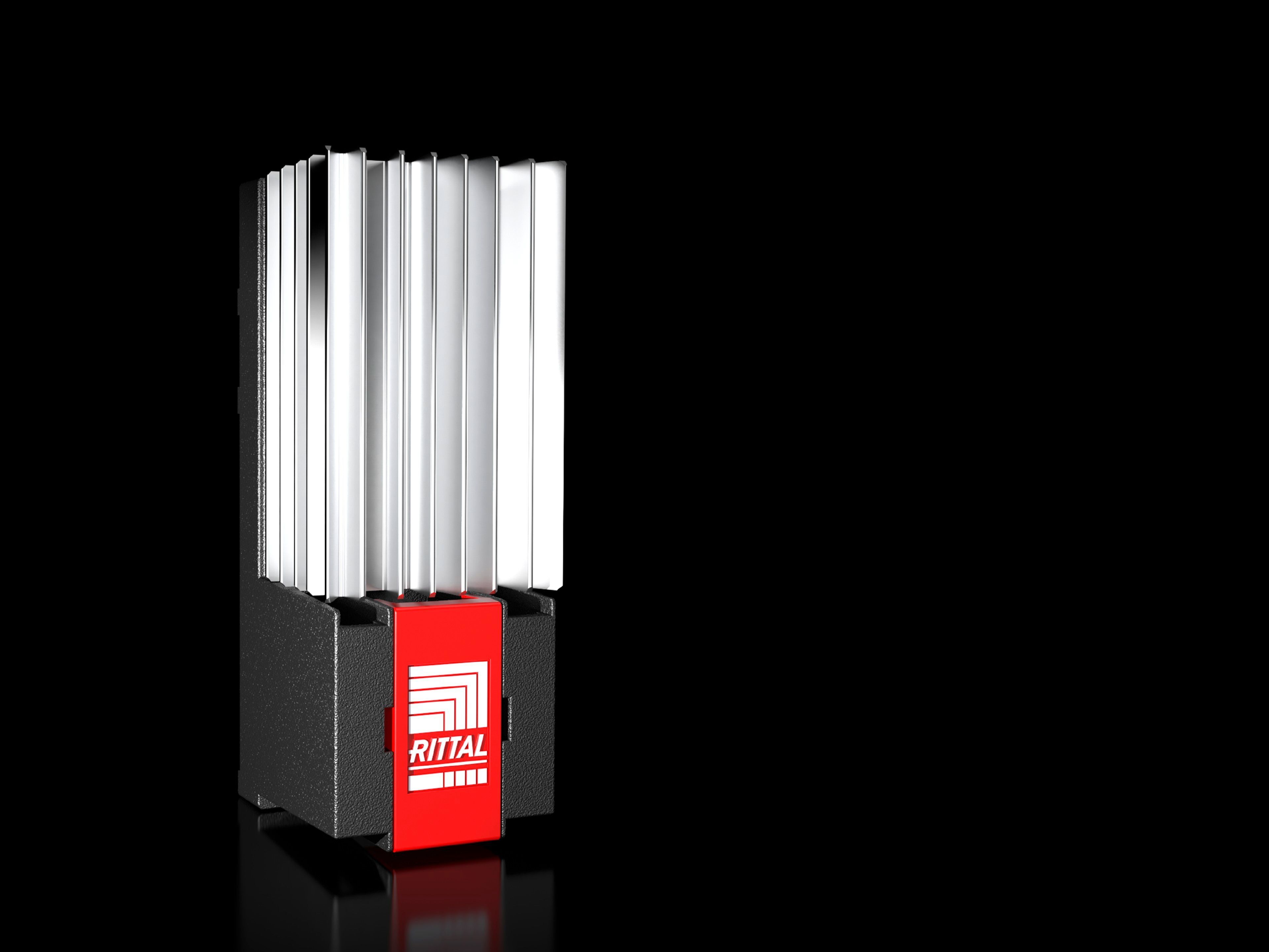

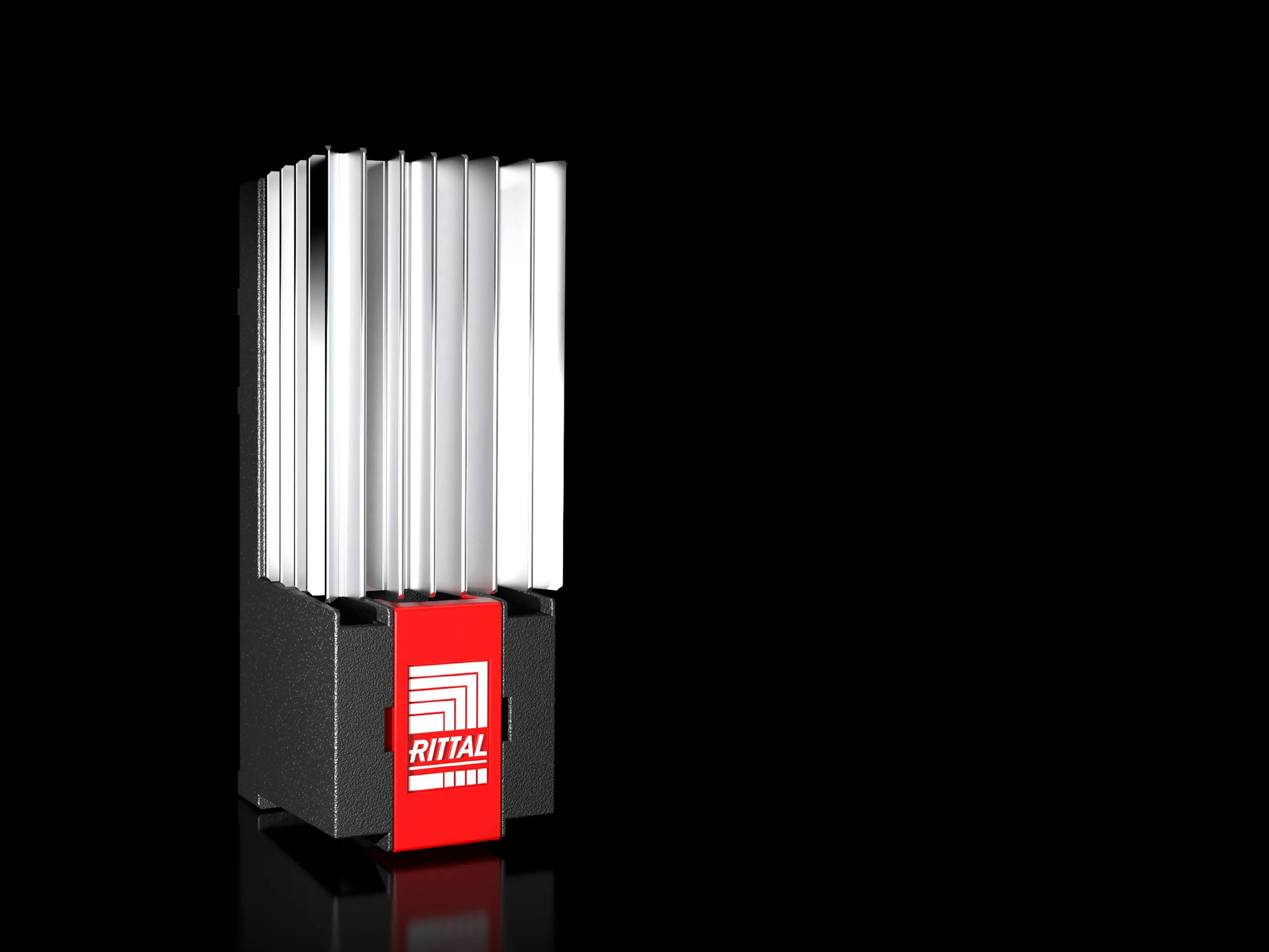

3105320 Rittal: SK enclosure heater, without fan, 18-20 W, 110-240 V, 1~, 50/60 Hz, WHD: 45 x 120 x 46 mm
Article number
SK 3105.320
Product description
Enclosure heaters to regulate relative humidity, prevent temperatures from dropping below the dew point and stop condensation forming inside the enclosure. This prevents consequential damage associated with corrosion or electrical short circuits.
Material
Aluminium, anodised
Supply includes
PTC heater | Quick-connection terminal | Assembly parts
Note
A thermostat is recommended for precise temperature control inside the enclosure.
Note on Model No.
An operating temperature of -40 °C is supported. Manufacturer's declaration available on request.
Continuous thermal output at 10 °C
18 W ‐ 20 W
Rated operating voltage
110 V - 240 V, 1~, 50 Hz/60 Hz
Dimensions
Width: 45 mm | Height: 120 mm | Depth: 46 mm
Pre-fuse
Miniature circuit-breaker/fuse: 2 A
IP protection category to IEC 60 529
IP 20
Protection class
II (all-insulated)
Operating temperature range
-33 °C...65 °C
Packs of
1 pc(s).
Weight/pack
0.22 kg
Customs tariff number
85162999
EAN
4028177638624
ETIM 9
EC000737
ETIM 8
EC000737
ECLASS 8.0
27180710
Product description
SK enclosure heater, without fan, 18-20 W, 110-240 V, 1~, 50/60 Hz, WHD: 45 x 120 x 46 mm
