3105390
Part Number: 3105390
Product Information
Extended Description

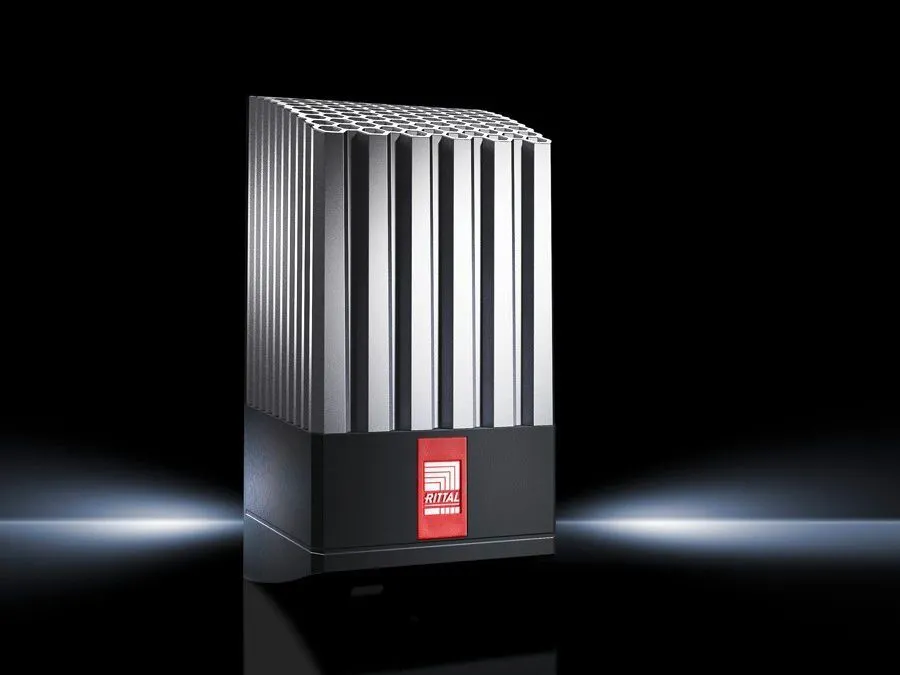

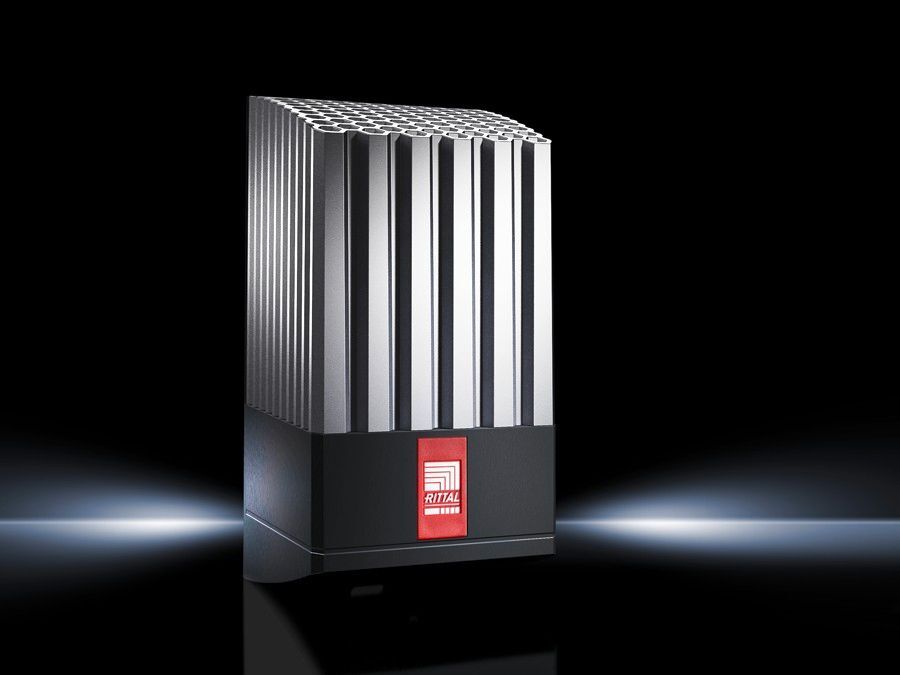

3105390 Rittal: SK enclosure heater, with fan, 400/415 W, 230 V, 1~, 50/60 Hz, WHD: 103 x 200 x 103 mm
Article number
SK 3105.390
Product description
Enclosure heaters to regulate relative humidity, prevent temperatures from dropping below the dew point and stop condensation forming inside the enclosure. This prevents consequential damage associated with corrosion or electrical short circuits.
Material
Plastic
Supply includes
PTC heater with fan | Assembly parts
Continuous thermal output
Continuous thermal output with fan
Fans pre-integrated
Yes
Note
A thermostat is recommended for precise temperature control inside the enclosure.
Note on Model No.
An operating temperature of -40 °C is supported. Manufacturer's declaration available on request.
Continuous thermal output at 10 °C
400 W ‐ 415 W
Rated operating voltage
230 V, 1~, 50 Hz/60 Hz
Dimensions
Width: 103 mm | Height: 200 mm | Depth: 103 mm
Pre-fuse
Miniature circuit-breaker/fuse: 6 A
IP protection category to IEC 60 529
IP 20
Protection class
II (all-insulated)
Operating temperature range
-33 °C...65 °C
Packs of
1 pc(s).
Weight/pack
1.22 kg
Customs tariff number
85162999
EAN
4028177662872
ETIM 9
EC000737
ETIM 8
EC000737
ECLASS 8.0
27180710
Product description
SK enclosure heater, with fan, 400/415 W, 230 V, 1~, 50/60 Hz, WHD: 103 x 200 x 103 mm
