3130115
Part Number: 3130115
Product Information
Extended Description

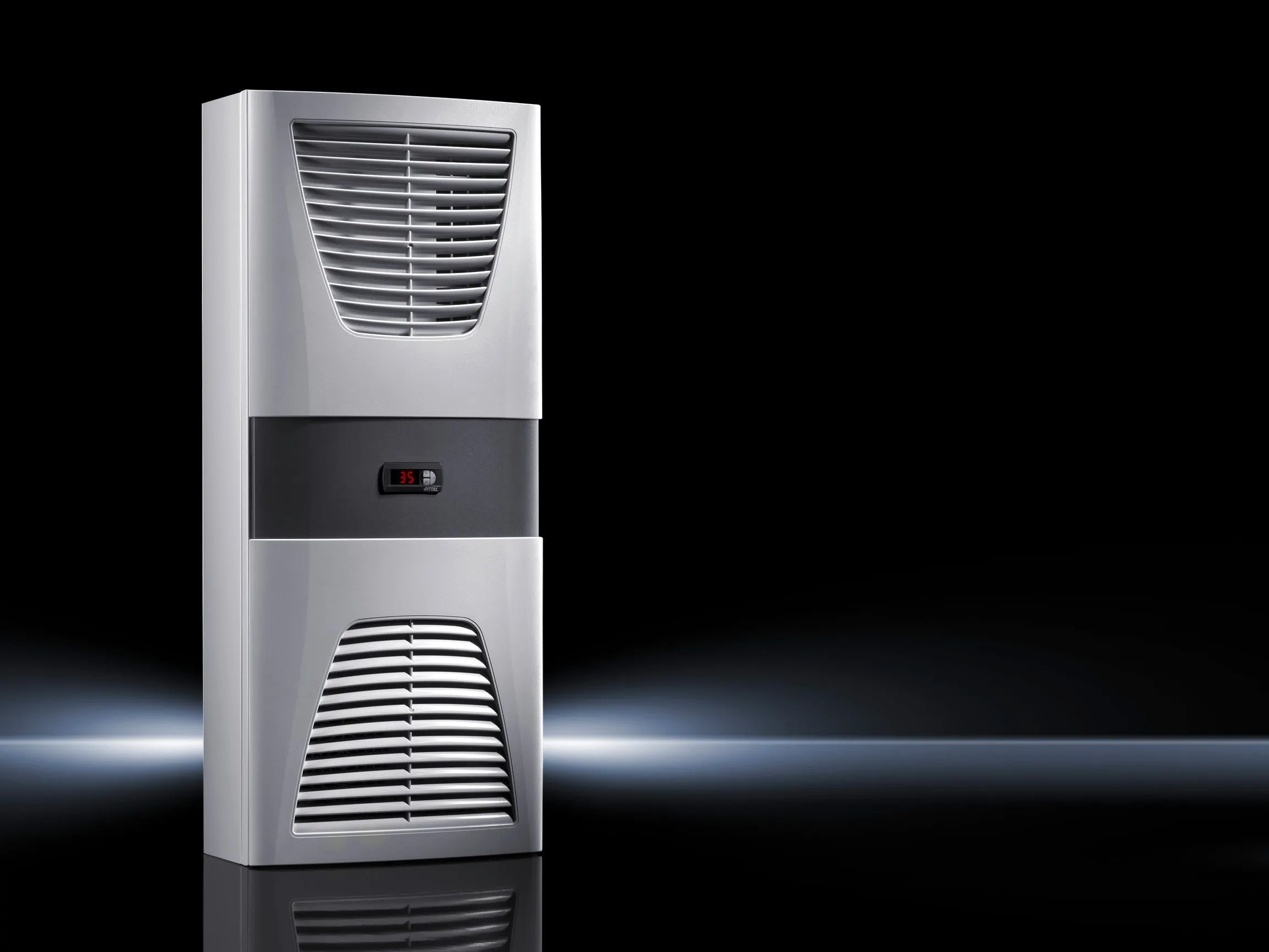

3130115 Rittal: SK TopTherm air/air heat exchanger, wall-mounted, 90 W/K, 115V, 50/60Hz, WHD: 400 x 1580 x 215 mm
Article number
SK 3130.115
Design
wall-mounted
Product description
Air/air heat exchangers are particularly well-suited to aggressive ambient conditions, because the internal and external air circuits are completely separate from one another.
Colour
RAL 7035
Supply includes
Complete unit ready for connection | Plug-in terminal strip | Floating fault signal contact in case of overtemperature | Drilling template | Assembly parts
Specific thermal output
90 W/K
Air throughput (unimpeded air flow)
External circuit with 50 Hz: 850 m³/h | External circuit with 60 Hz: 945 m³/h | Internal circuit at 50 Hz: 850 m³/h | Internal circuit at 60 Hz: 945 m³/h
Rated operating voltage
115 V, 1~, 50 Hz/60 Hz
Dimensions
Width: 400 mm | Height: 1,580 mm | Depth: 215 mm
Pre-fuse
Miniature circuit-breaker/fuse: 4 A
Temperature control
Electronic control with digital display (factory setting +35 °C)
Operating temperature range
-5 °C...55 °C
IP protection category to IEC 60 529
Internal circuit IP 54
Packs of
1 pc(s).
Weight/pack
34 kg
Customs tariff number
84158300
EAN
4028177425125
ETIM 9
EC002514
ETIM 8
EC002514
ECLASS 8.0
27180711
Product description
SK TopTherm air/air heat exchanger, wall-mounted, 90 W/K, 115V, 50/60Hz, WHD: 400 x 1580 x 215 mm
