3138000
Part Number: 3138000
Product Information
Extended Description

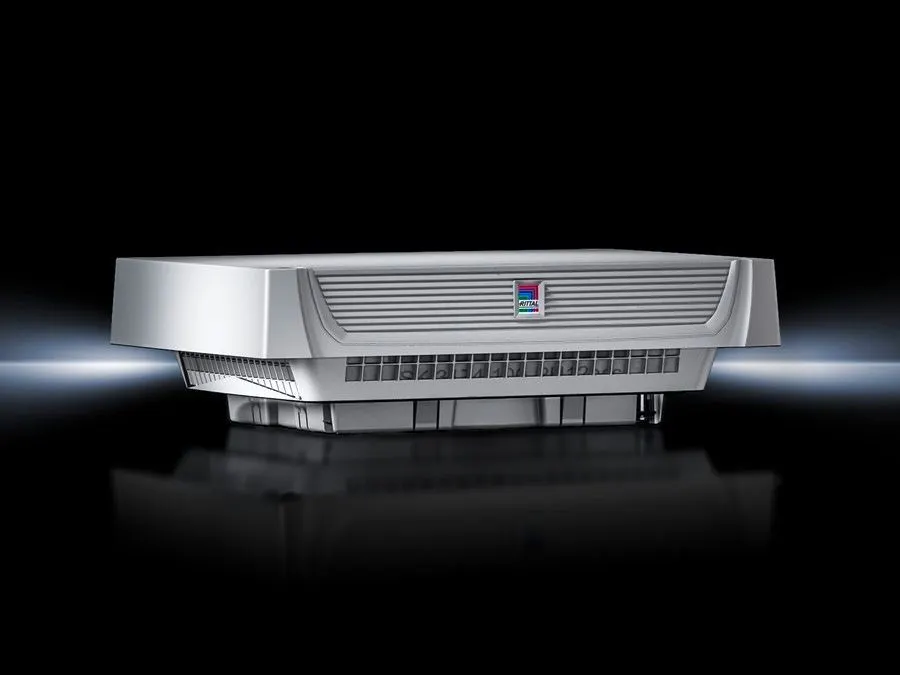

3138000 Rittal: SK roof-mounted fan, roof vent, WHD: 400 x 133 x 400 mm, without fan motor
Article number
SK 3138.000
Design
roof-mounted
Product description
Roof-mounted fan with a high protection category and flexible installation from the inside or outside.
Colour
RAL 7035
Supply includes
Complete unit ready to install, including pleated filter
Fan
without fan motor
Dimensions
Width: 400 mm | Height: 133 mm | Depth: 400 mm
Installation depth
27.5 mm
Mounting cut-out
Cut-out width: 258 mm | Cut-out depth: 258 mm
IP protection category to IEC 60 529
IP 21 without filter mat
Protection category NEMA
NEMA 12
Note
A chopped-fibre filter filter may optionally be used to increase the protection category to IP55 (see accessories).
Operating temperature range
-20 °C...55 °C
Storage temperature range
-40 °C...70 °C
Weight/pack
3.2 kg
Packs of
1 pc(s).
Customs tariff number
84213925
EAN
4028177709188
ETIM 9
EC000320
ETIM 8
EC000320
ECLASS 8.0
27180716
Product description
SK roof-mounted fan, roof vent, WHD: 400 x 133 x 400 mm, without fan motor
