Part Number: 3140140
Product Information
Extended Description

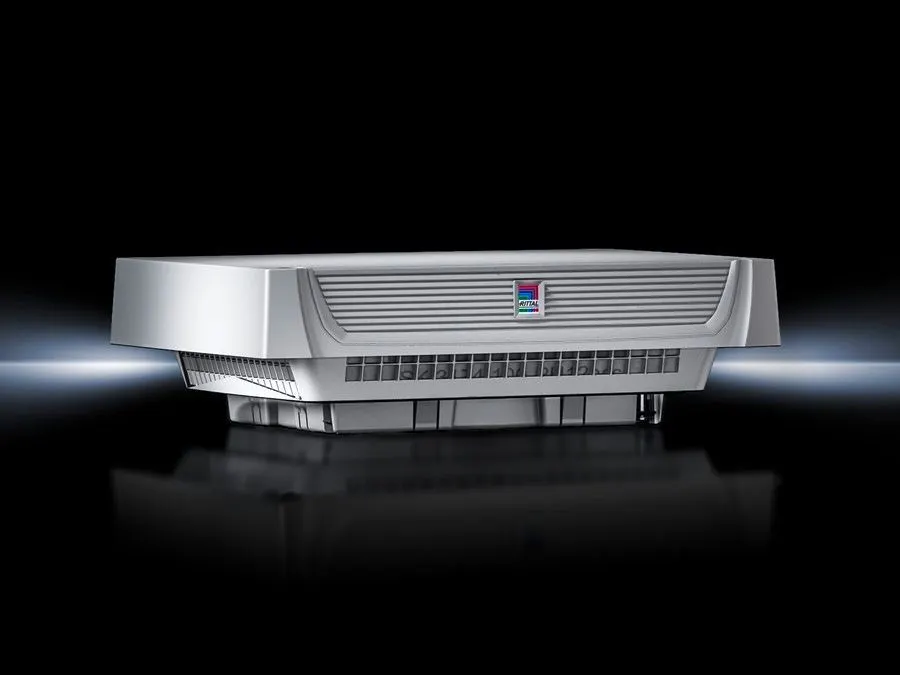

3140140 Rittal: SK Roof-mounted fan TopTherm, 863/942 m³/h, 400-460 V, 3~, 50/60 Hz, WHD: 400 x 133 x 400 mm
Article number
SK 3140.140
Design
roof-mounted
Product description
Roof-mounted fan with a high protection category and flexible installation from the inside or outside.
Colour
RAL 7035
Supply includes
Complete unit ready to install, including pleated filter
Fan
Radial, rotary current motor
Air throughput, unimpeded airflow (with pleated filter)
At 50 Hz: 800 m³/h | At 60 Hz: 853 m³/h
Air throughput, unimpeded air flow (without filter mats)
At 50 Hz: 863 m³/h | At 60 Hz: 942 m³/h
Air flow (with pleated filter in roof-mounted fan) with outlet filter including chopped-fibre filter mat
1 x 3243200: 555/565 m³/h
Air flow (without filter in roof-mounted fan) with outlet filter including chopped-fibre filter mat
1 x 3243200: 575/600 m³/h
Rated operating voltage
380 V - 415 V, 3~, 50 Hz/60 Hz
Power consumption Pel
At 50 Hz: 98 W | At 60 Hz: 130 W
Rated current max.
At 50 Hz: 0.17 A | At 60 Hz: 0.2 A
Dimensions
Width: 400 mm | Height: 133 mm | Depth: 400 mm
Installation depth
34.6 mm
Mounting cut-out
Cut-out width: 258 mm | Cut-out depth: 258 mm
IP protection category to IEC 60 529
IP 21 without filter mat
Protection category NEMA
NEMA 12
Note
A chopped-fibre filter filter may optionally be used to increase the protection category to IP55 (see accessories).
Service life of fans (L10, 40 °C)
At 50 Hz: 63,500 h | At 60 Hz: 61,500 h
Operating temperature range
-20 °C...55 °C
Storage temperature range
-40 °C...70 °C
Noise level
At 50 Hz: 56 dB(A) | At 60 Hz: 58 dB(A)
Weight/pack
6 kg
Packs of
1 pc(s).
Customs tariff number
84145915
EAN
4028177709133
ETIM 8
EC000320
ETIM 7.0
EC000320
ECLASS 8.0
27180716
Product description
SK Roof-mounted fan TopTherm, 863/942 m³/h, 400-460 V, 3~, 50/60 Hz, WHD: 400 x 133 x 400 mm
