Part Number: 3140510
Product Information
Extended Description

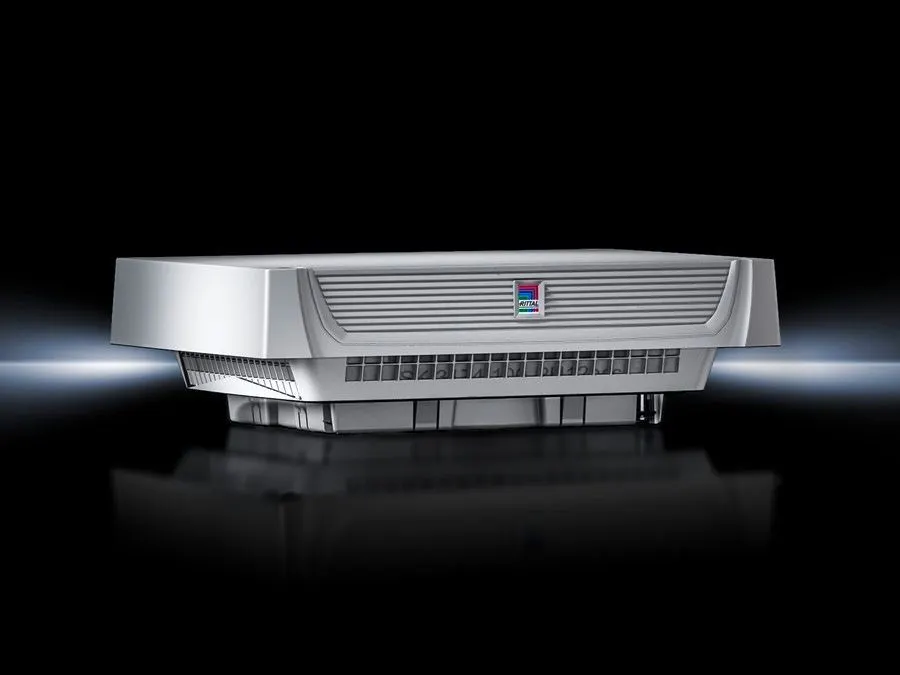

3140510 Rittal: SK roof-mounted fan TopTherm, 1069/1069 m³/h, 115 V, 1~, 50/60 Hz, WHD: 400 x 133 x 400 mm, EC-Technology
Article number
SK 3140.510
Design
roof-mounted | EC
Product description
Energy-efficient and powerful design of the roof-mounted fans. The fan may be activated via the control interface with tacho signal output integrated as standard, and monitoring of the fan speed and function is supported.
Colour
RAL 7035
Supply includes
Complete unit ready to install, including pleated filter
Fan
Radial, EC motor
Air throughput, unimpeded airflow (with pleated filter)
At 50 Hz: 976 m³/h | At 60 Hz: 976 m³/h
Air throughput, unimpeded air flow (without filter mats)
At 50 Hz: 1,069 m³/h | At 60 Hz: 1,069 m³/h
Air flow (with pleated filter in roof-mounted fan) with outlet filter including chopped-fibre filter mat
1 x 3243200: 690 m³/h
Air flow (without filter in roof-mounted fan) with outlet filter including chopped-fibre filter mat
1 x 3243200: 690 m³/h
Rated operating voltage
115 V, 1~, 60 Hz
Power consumption Pel
At 60 Hz: 112 W
Rated current max.
At 60 Hz: 1.51 A
Dimensions
Width: 400 mm | Height: 133 mm | Depth: 400 mm
Installation depth
34.6 mm
Mounting cut-out
Cut-out width: 258 mm | Cut-out depth: 258 mm
IP protection category to IEC 60 529
IP 21 without filter mat
Protection category NEMA
NEMA 12
Control interface
Yes
Pre-fuse
Miniature circuit-breaker/fuse: 3 A
Note
A chopped-fibre filter filter may optionally be used to increase the protection category to IP55 (see accessories).
Service life of fans (L10, 40 °C)
At 50 Hz: 82,000 h | At 60 Hz: 82,000 h
Operating temperature range
-20 °C...55 °C
Storage temperature range
-40 °C...70 °C
Noise level
At 60 Hz: 60 dB(A)
Weight/pack
5.6 kg
Packs of
1 pc(s).
Customs tariff number
84145915
EAN
4028177805767
ETIM 9
EC000320
ETIM 8
EC000320
ECLASS 8.0
27180716
Product description
SK roof-mounted fan TopTherm, 1069/1069 m³/h, 115 V, 1~, 50/60 Hz, WHD: 400 x 133 x 400 mm, EC-Technology
