3144000
Part Number: 3144000
Product Information
Extended Description

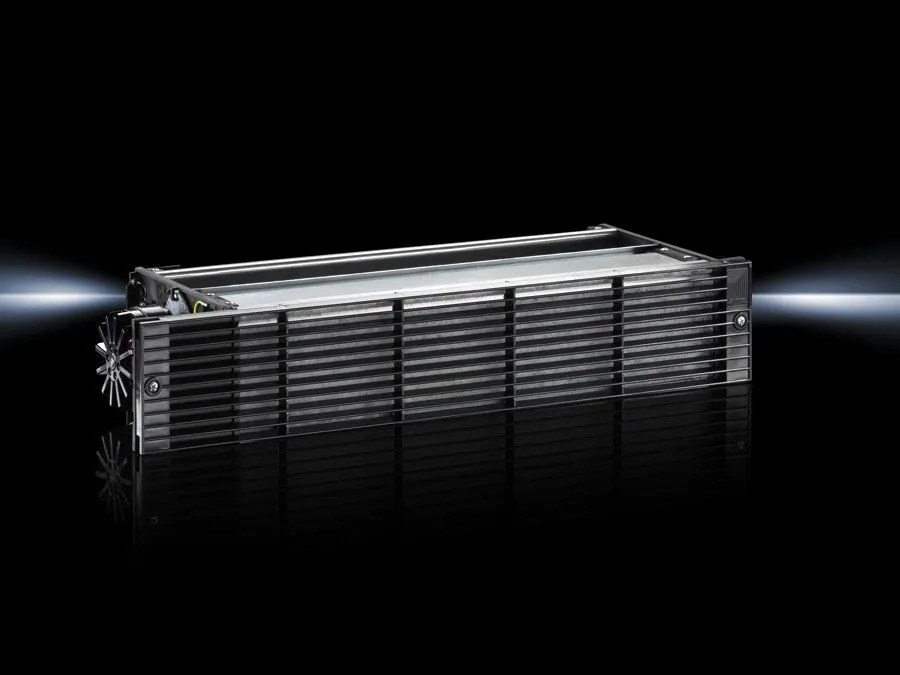

3144000 Rittal: SK tangential fan, for 482.6 mm (19"), 320 m³/h, 230 V, 50/60 Hz, WHD: 482.6 x 88 x 158 mm
Article number
SK 3144.000
Product description
Centrifugal fans for direct installation in the 482.6 mm (19") level have a wide column plus favourable noise characteristics to set them apart from other fans.
Colour
RAL 9005
Supply includes
Fully wired unit ready for connection | Filter mat
Speed
2,245 rpm
Rated operating voltage
230 V, 1~, 50 Hz/60 Hz
Power consumption Pel
At 50 Hz: 37 W | At 60 Hz: 46 W
Rated current max.
At 50 Hz: 0.16 A | At 60 Hz: 0.22 A
Dimensions
Width: 482.6 mm | Height: 88 mm | Depth: 163 mm
Noise level
At 50 Hz: 52 dB(A) | At 60 Hz: 62 dB(A)
Maximum static pressure difference
65 ‐ 70 Pa
Operating temperature range
-10 °C...55 °C
Internal circuit at 50 Hz
320 m³/h
Internal circuit at 60 Hz
330 m³/h
Packs of
1 pc(s).
Weight/pack
2.02 kg
Customs tariff number
84145915
EAN
4028177037137
ETIM 9
EC000320
ETIM 8
EC000320
ECLASS 8.0
27180716
Product description
SK tangential fan, for 482.6 mm (19"), 320 m³/h, 230 V, 50/60 Hz, WHD: 482.6 x 88 x 158 mm
