3166115
Part Number: 3166115
Product Information
Extended Description

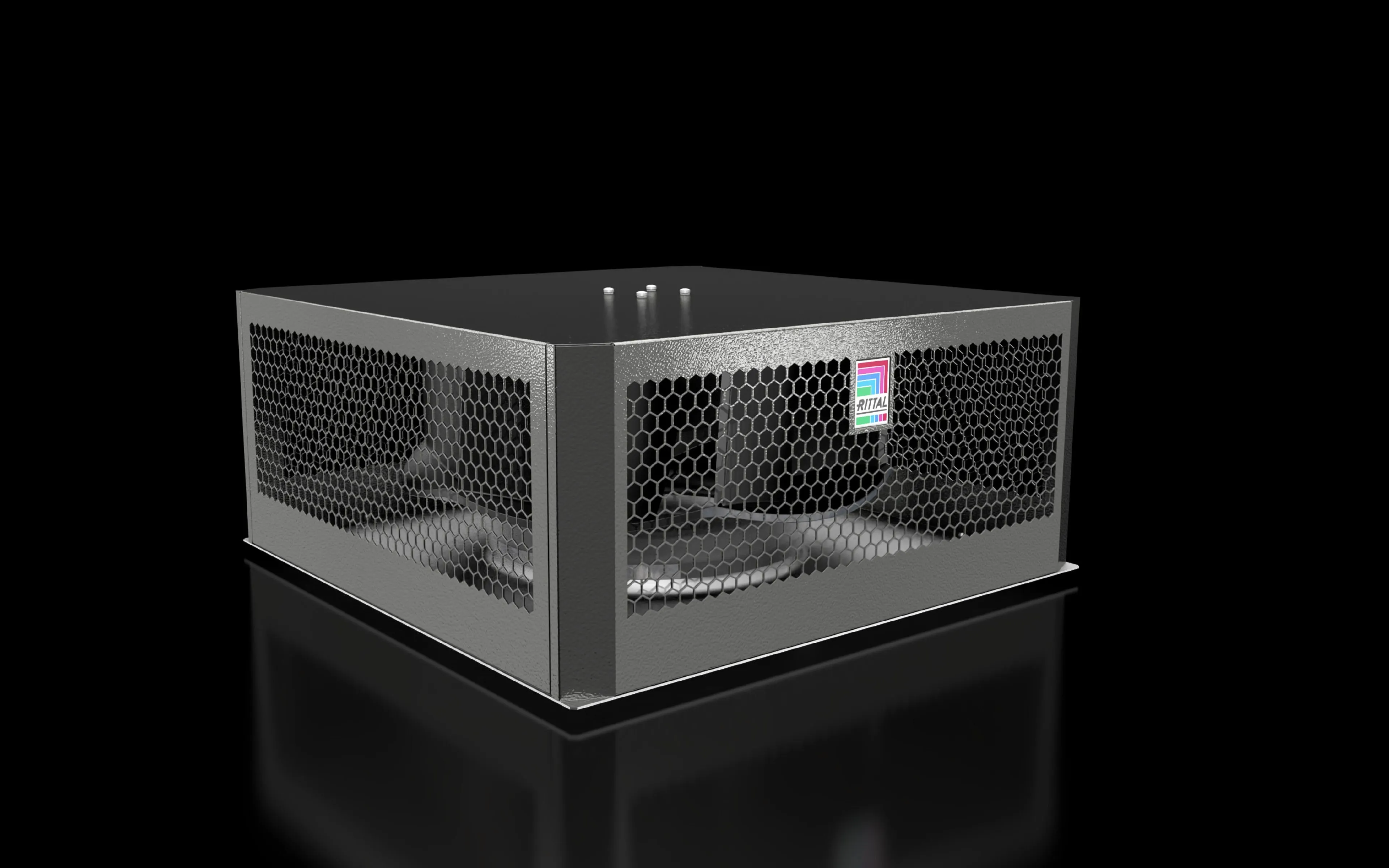

3166115 Rittal: SK Roof-mounted fan 100-130 V, 50-60 Hz, speed-controlled, 800 m³/h, for VX IT, for office environments (very quiet), WxHxD: 470x200x470 mm, RAL 9005
Article number
SK 3166.115
Benefits
Simple connection system with C13 IEC 320 socket
Applications
for the office sector
Function principle
The speed-regulated fan modifies output to the actual requirements
Material
Sheet steel, spray-finished
Colour
RAL 9005
Supply includes
1 fan unit | Speed control | Fully wired ready for connection | Assembly parts | Installation and Short User's Guide | Without roof plate
Rated operating voltage
100 V - 130 V, 1~, 50 Hz/60 Hz
Note on Model No.
Reduction in the specified air throughput to 800 m³/h at 40 Pa counterpressure using two vented base/plinth trim panels
Rated current max.
At 50 Hz: 0.5 A | At 60 Hz: 0.5 A
Design
Pre-configured
Dimensions
Width: 470 mm | Height: 200 mm | Depth: 470 mm
Mounting cut-out
Width:410 mm | Depth:410 mm
Protection category to IEC 60 529
IP 20
Temperature control
Speed-controlled fan
Operating temperature range
5 °C...55 °C
Power consumption Pel
Power consumption L35 L35/50 Hz: 24 W | Power consumption L35 L35/60 Hz: 24 W
Air throughput (unimpeded air flow)
1,245 m³/h
Air throughput (at operating point)
800 m³/h
Noise level (at operating point)
39 dB(A)
Pre-fuse
Miniature circuit-breaker/fuse: 10 A
Packs of
1 pc(s).
Weight/pack
10.6 kg
Customs tariff number
84145915
EAN
4028177966260
ETIM 9
EC000320
ETIM 8
EC000320
ECLASS 8.0
27180716
Product description
SK Roof-mounted fan 100-130 V, 50-60 Hz, speed-controlled, 800 m³/h, for VX IT, for office environments (very quiet), WxHxD: 470x200x470 mm, RAL 9005
