3171120

Part Number: 3171120
3171120
Manufacturer
Rittal
Part number
3171120
Category
Alt Part Number
SK 3171.120

Product Information

Extended Description

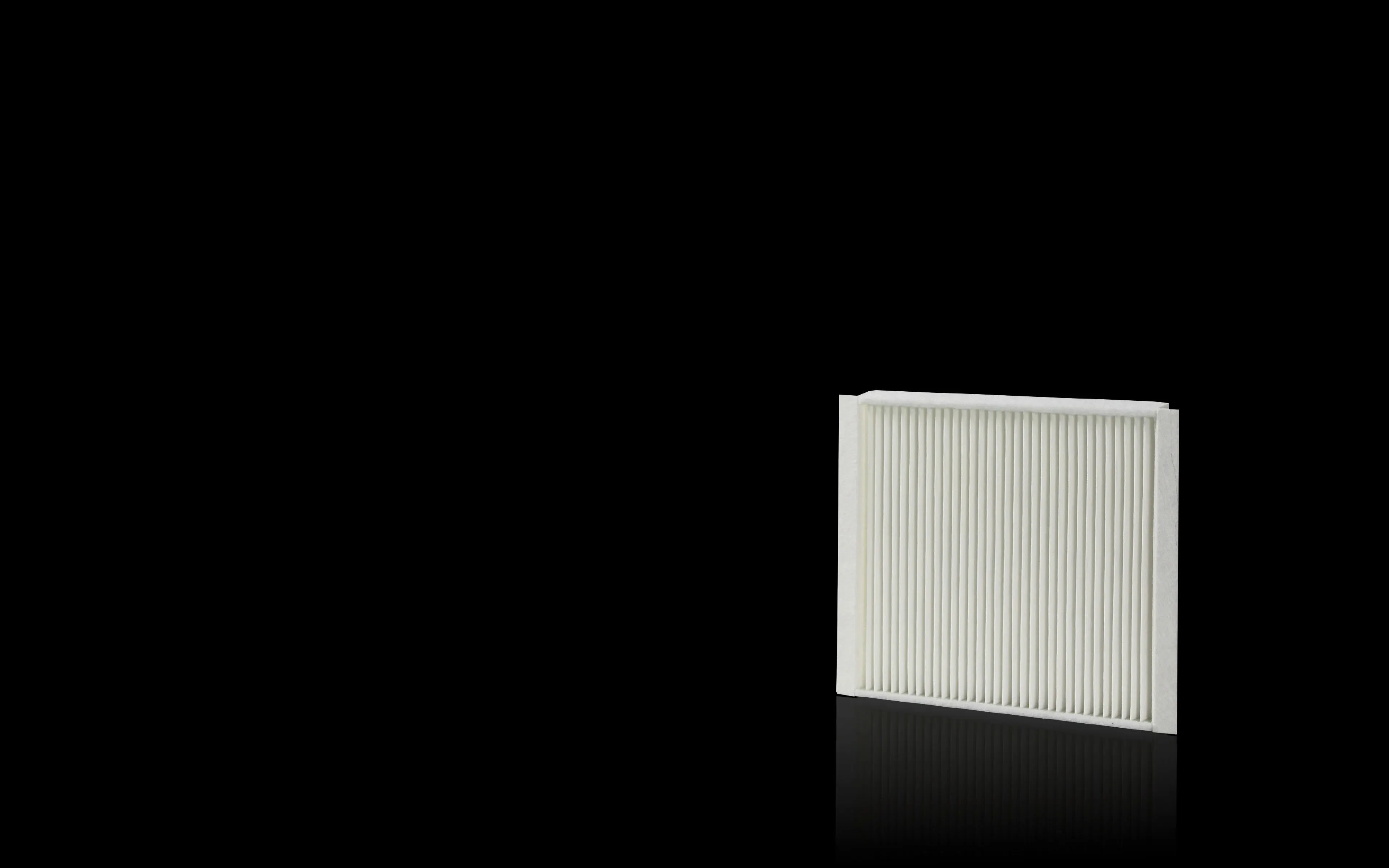

3171120 Rittal: SK Pleated filter IP54, for fan-and-filter units/outlet filters 3239.xxx, WHD: 167x167x21 mm
Article number
SK 3171.120
Design
for fan-and-filter units / outlet filters
Material
PET
Colour
White
Note
Performance data, protection category and device approvals are only guaranteed when used in conjunction with original Rittal filter mats.
To fit Model No.
3239.xxx
Dimensions
Width: 167 mm | Height: 167 mm | Depth: 21 mm
Filter class
to DIN EN 779: G4 | to DIN EN ISO 16890: ISO Coarse 70%
IP protection category to IEC 60 529
IP54 in fan-and-filter units/roof-mounted fans/outlet filters
Note on Model No.
No suitable for use in EMC fan-and-filter units.
Weight/pack
0.31 kg
Packs of
5 pc(s).
Customs tariff number
56039390
EAN
4028177969155
ETIM 9
EC002513
ETIM 8
EC002513
ECLASS 8.0
27180706
Product description
SK Pleated filter IP54, for fan-and-filter units/outlet filters 3239.xxx, WHD: 167x167x21 mm
