3173105
Part Number: 3173105
Manufacturer
Rittal
Part number
3173105
Category
Alt Part Number
SK 3173.105
Product Information
Extended Description

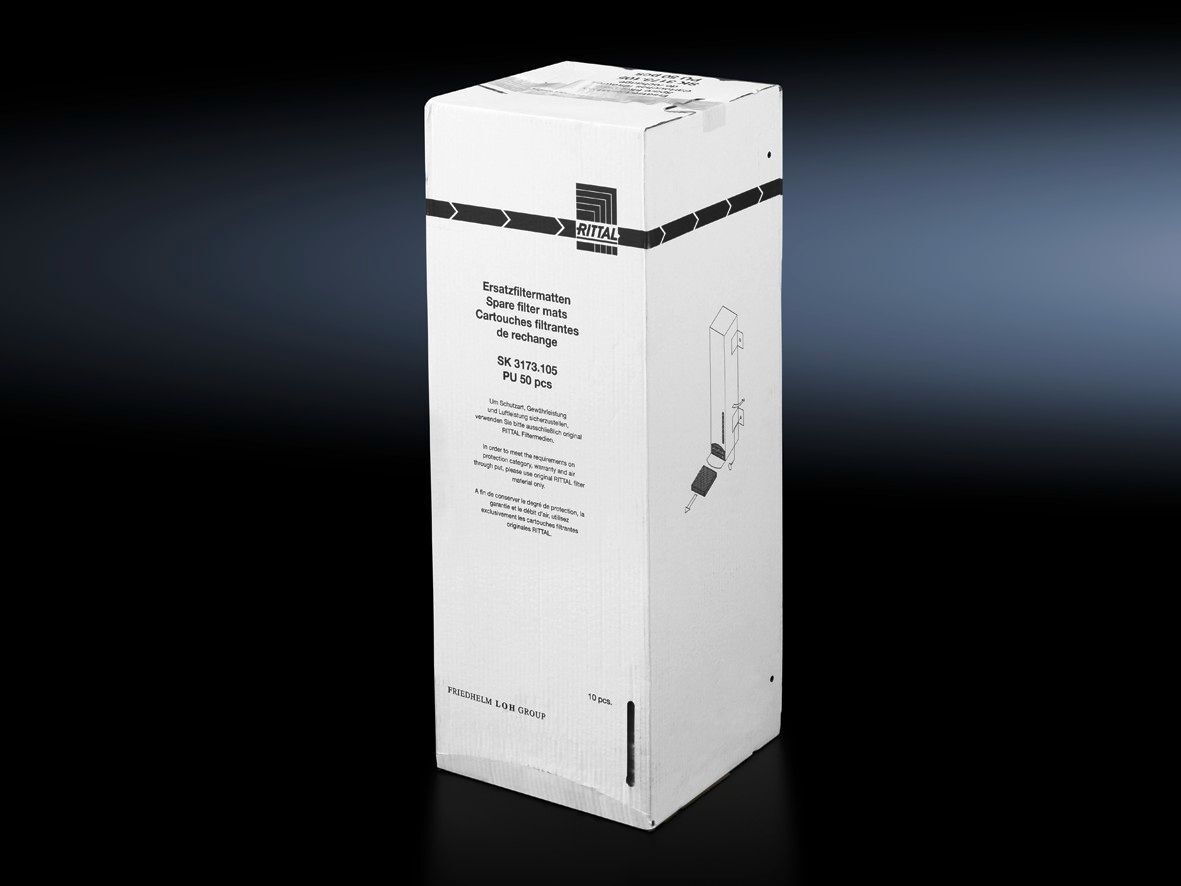

3173105 Rittal: SK spare filter mats, for filter fans, for SK 3243…/3244…/3245…, WHD: 289 x 289 x 17 mm
Article number
SK 3173.105
Design
for fan-and-filter units
Product description
Made of chopped-fibre mat with a progressive structure. Temperature-resistant to 100 °C, self-extinguishing category F1 to DIN 53 438. Dust-laden air side: Open structure. Clean-air side: Closed structure. Reliable filtering of virtually all types of dust from a particle size of 10 µm.
Material
Chemical fibres
Note
No suitable for use in EMC fan-and-filter units.
To fit Model No.
3243....
Dimensions
Width:Â 289 mm | Height:Â 289 mm | Depth:Â 17 mm
Filter class
to DIN EN 779:Â G3 | to DIN EN ISO 16890:Â ISO Coarse 50%
Weight/pack
0.03 kg
Packs of
50 pc(s).
Customs tariff number
56039390
EAN
4028177695573
ETIM 9
EC002513
ETIM 8
EC002513
ECLASS 8.0
27180706
Product description
SK spare filter mats, for filter fans, for SK 3243…/3244…/3245…, WHD: 289 x 289 x 17 mm
