3173120
Part Number: 3173120
Manufacturer
Rittal
Part number
3173120
Category
Alt Part Number
SK 3173.120
Product Information
Extended Description

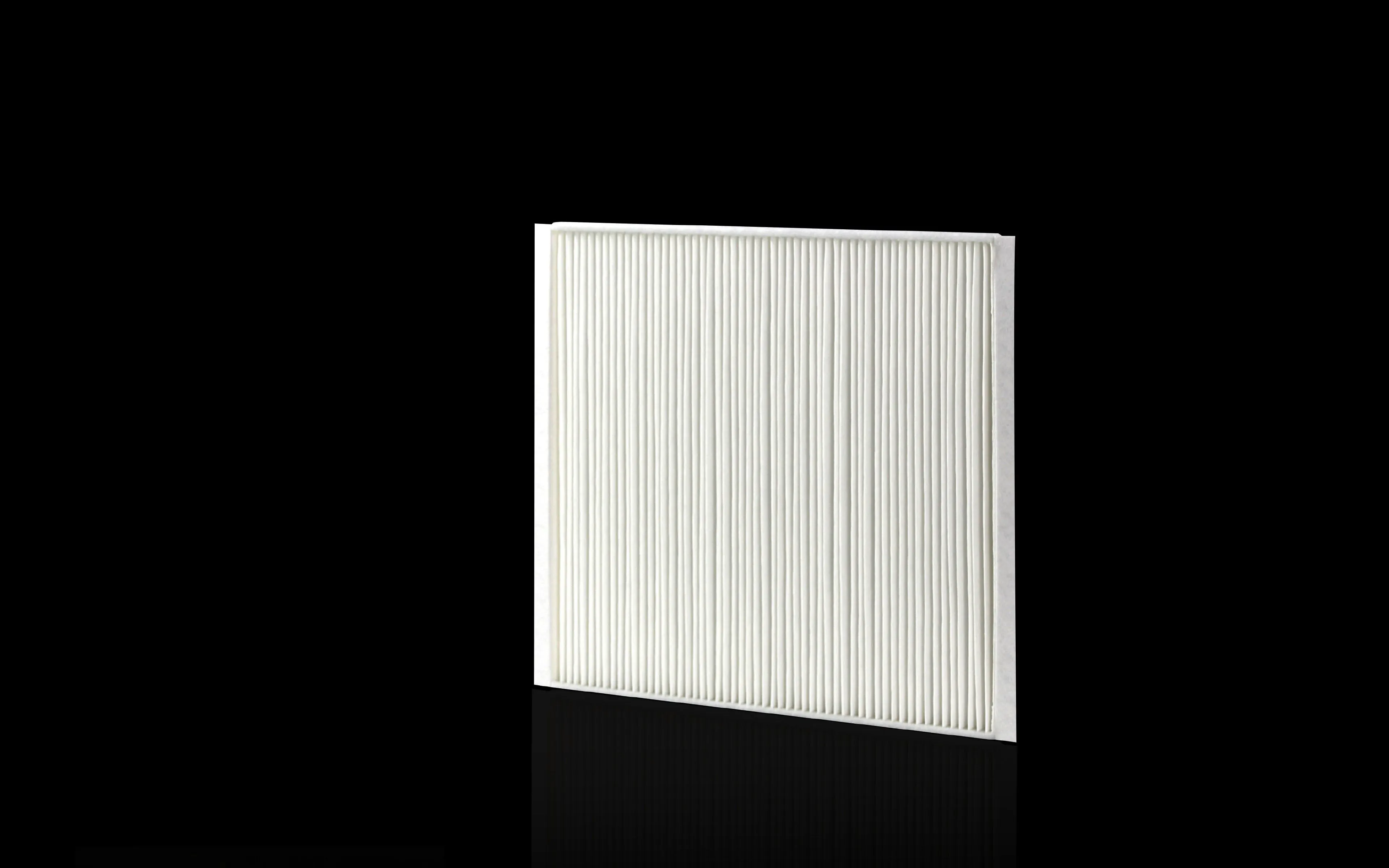

3173120 Rittal: SK Pleated filter IP54, for fan-and-filter units/outlet filters 3243./3244./3245.xxx, WHD: 280x280x21 mm
Article number
SK 3173.120
Design
for fan-and-filter units / outlet filters
Material
PET
Colour
White
Note
Performance data, protection category and device approvals are only guaranteed when used in conjunction with original Rittal filter mats.
To fit Model No.
3243.xxx
Dimensions
Width: 280 mm | Height: 282 mm | Depth: 21 mm
Filter class
to DIN EN 779: G4 | to DIN EN ISO 16890: ISO Coarse 70%
IP protection category to IEC 60 529
IP54 in fan-and-filter units/roof-mounted fans/outlet filters
Protection category
In conjunction with fan-and-filter units/outlet filters 3245.xxx, the protection category is IP 51
Note on Model No.
No suitable for use in EMC fan-and-filter units.
Weight/pack
0.76 kg
Packs of
5 pc(s).
Customs tariff number
56039390
EAN
4028177969131
ETIM 9
EC002513
ETIM 8
EC002513
ECLASS 8.0
27180706
Product description
SK Pleated filter IP54, for fan-and-filter units/outlet filters 3243./3244./3245.xxx, WHD: 280x280x21 mm
