3174000
Part Number: 3174000
Manufacturer
Rittal
Part number
3174000
Category
Alt Part Number
SK 3174.000
Product Information
Extended Description

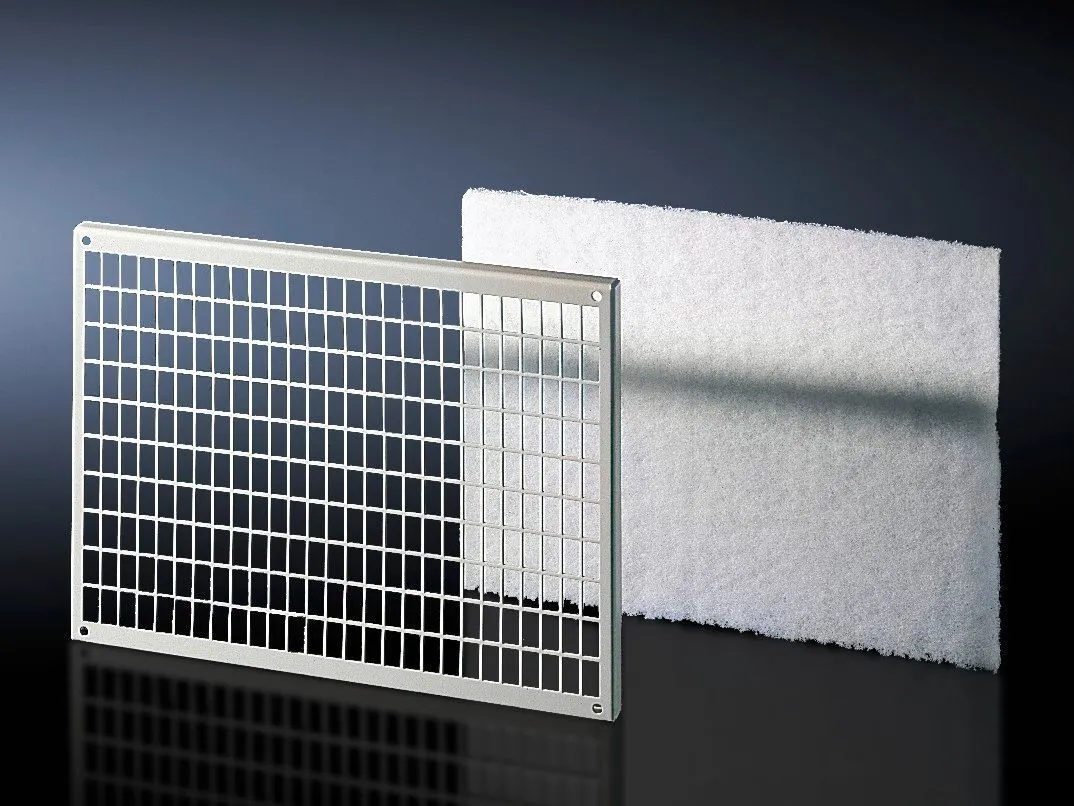

3174000 Rittal: SK Filter mat, for filter holders SK 3175, WHD: 338x242x17 mm, Filter class: G2
Article number
SK 3174.000
Design
For filter holders
Product description
Made of chopped-fibre mat with a progressive structure. Temperature-resistant to 100 °C, self-extinguishing category F1 to DIN 53 438. Dust-laden air side: Open structure. Clean-air side: Closed structure. Reliable filtering of virtually all types of dust from a particle size of 10 µm.
Material
Chemical fibres
Note
Performance data, protection category and device approvals are only guaranteed when used in conjunction with original Rittal filter mats.
To fit Model No.
3175.000
Dimensions
Width: 338 mm | Height: 242 mm | Depth: 17 mm
Filter class
to DIN EN 779: G2
Weight/pack
0.081 kg
Packs of
3 pc(s).
Customs tariff number
56039390
EAN
4028177038158
ETIM 9
EC002513
ETIM 8
EC002513
ECLASS 8.0
27180706
Product description
SK Filter mat, for filter holders SK 3175, WHD: 338x242x17 mm, Filter class: G2
