3174100
Part Number: 3174100
Manufacturer
Rittal
Part number
3174100
Category
Alt Part Number
SK 3174.100
Product Information
Extended Description

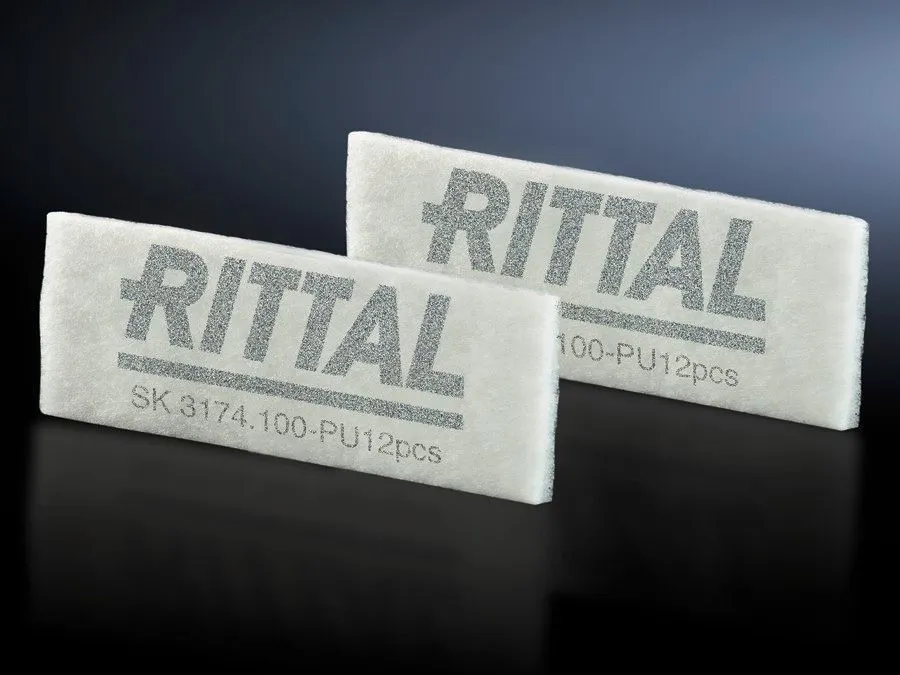

3174100 Rittal: SK spare filter mat, for roof-mounted fans, for SK 3138./3139./3140. WHD: 264 x 95 x 17 mm
Article number
SK 3174.100
Design
for roof-mounted fans
Product description
Made of chopped-fibre mat with a progressive structure. Temperature-resistant to 100 °C, self-extinguishing category F1 to DIN 53 438. Dust-laden air side: Open structure. Clean-air side: Closed structure. Reliable filtering of virtually all types of dust from a particle size of 10 µm.
Material
Chemical fibres
Note
Performance data, protection category and device approvals are only guaranteed when used in conjunction with original Rittal filter mats.
To fit Model No.
3138....
Dimensions
Width: 264 mm | Height: 95 mm | Depth: 17 mm
Filter class
to DIN EN 779: G3
Weight/pack
0.008 kg
Packs of
12 pc(s).
Customs tariff number
56039390
EAN
4028177709218
ETIM 8
EC002513
ETIM 7.0
EC002513
ECLASS 8.0
27180706
Product description
SK spare filter mat, for roof-mounted fans, for SK 3138./3139./3140. WHD: 264 x 95 x 17 mm
