3174120

Part Number: 3174120
3174120
Manufacturer
Rittal
Part number
3174120
Category
Alt Part Number
SK 3174.120

Product Information

Extended Description

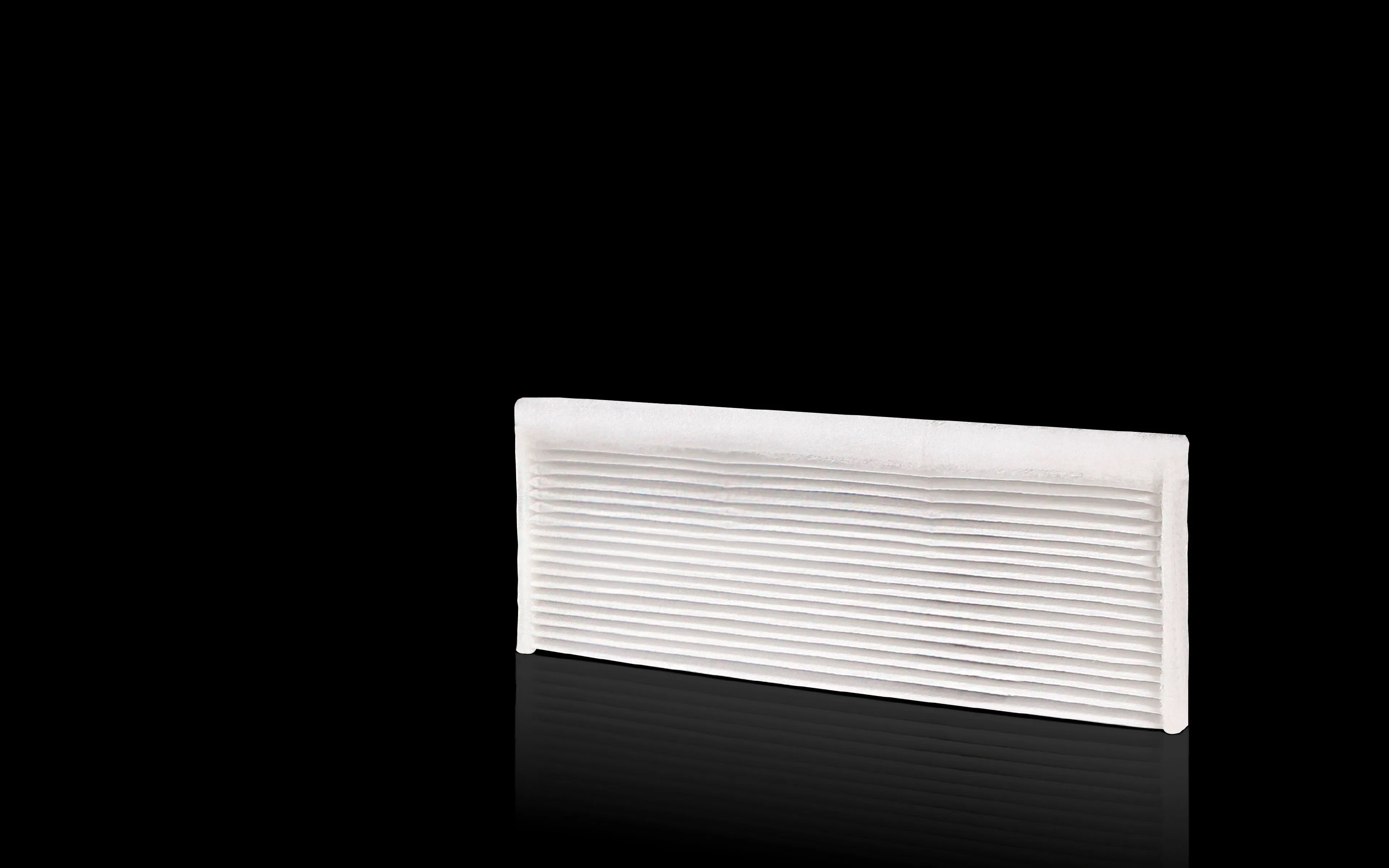

3174120 Rittal: SK Pleated filter IP54, for roof-mounted fans 3138./3139./3140.xxx, WHD: 265x100x18 mm
Article number
SK 3174.120
Design
for roof-mounted fans
Material
Pleated filter: Based on polyester, meltblown polycarbonate
Note
Performance data, protection category and device approvals are only guaranteed when used in conjunction with original Rittal filter mats.
To fit Model No.
3138.xxx
Dimensions
Width: 265 mm | Height: 100 mm | Depth: 18 mm
Filter class
to DIN EN 779: M5 | to DIN EN ISO 16890: ISO ePM10 50 %
IP protection category to IEC 60 529
IP54 in fan-and-filter units/roof-mounted fans/outlet filters
Packs of
12 pc(s).
Customs tariff number
56039390
EAN
4028177969070
ETIM 9
EC002513
ETIM 8
EC002513
ECLASS 8.0
27180706
Product description
SK Pleated filter IP54, for roof-mounted fans 3138./3139./3140.xxx, WHD: 265x100x18 mm
