3180800
Part Number: 3180800
Product Information
Extended Description

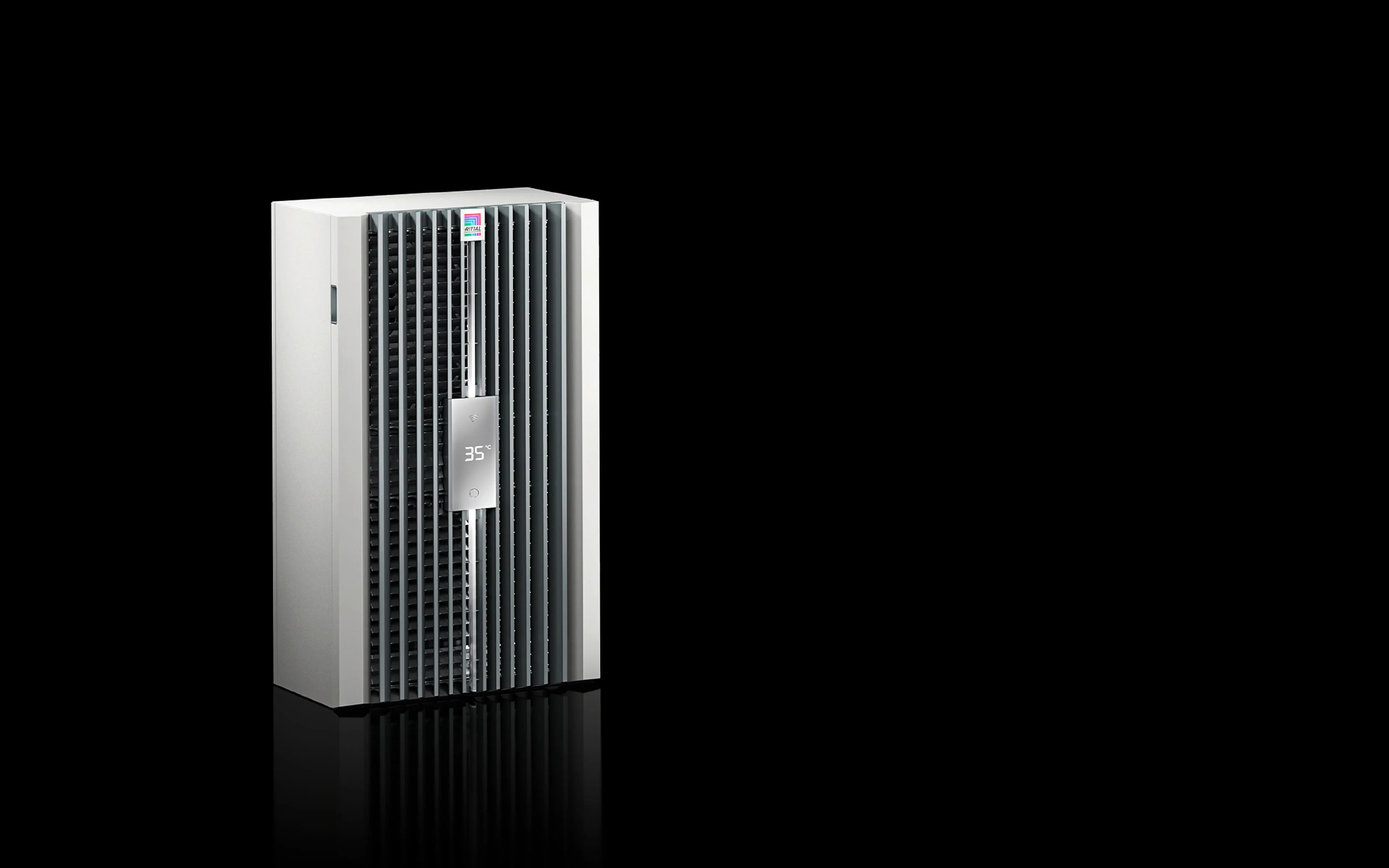

3180800 Rittal: SK wall-mounted cooling unit Blue e+ S, 0.78 kW, 110-240 V, 1~, 50-60 Hz, sheet steel, WHD: 300 x 570 x 250 mm
Article number
SK 3180.800
Design
wall-mounted | Integral electric condensate evaporation
Benefits
Contributes to climate-neutral production with average energy savings of 75% and a reduced carbon footprint
Material
Sheet steel
General colour
RAL 7035
Colour
Enclosure: RAL 7035 | Louvred grille: RAL 7012
Supply includes
Assembly parts | Fully wired ready for connection (plug-in terminal strip) | Integral electric condensate evaporation
Options
For remote monitoring and networking of cooling units and chillers in the Blue e+ generation, please use the IoT interface (Model No. 3124.300). Increase machine availability and process reliability with remote monitoring of device data, statuses and system messages.
Total cooling output to DIN EN 14511
Cooling output L35 L35/50 Hz: 0.78 kW | Cooling output L35 L35/60 Hz: 0.78 kW | Cooling output L35 L50/50 Hz: 0.44 kW | Cooling output L35 L50/60 Hz: 0.44 kW
Rated operating voltage
110 V - 240 V, 1~, 50 Hz/60 Hz
Note
Please observe the mounting instructions.
Note on Model No.
Tolerance: 110 V -10% (99 V) and 240 V +10% (264 V)
Rated power input
0.56 kW
Air throughput (unimpeded air flow)
External circuit: 378 m³/h | Internal circuit: 378 m³/h
Energy efficiency ratio (EER) 50/60 Hz L35 L35
Refrigeration factor L35 L35 (EER) 50 Hz: 1.9 | Refrigeration factor L35 L35 (EER) 60 Hz: 1.9
Design
wall-mounted
Dimensions
Width: 300 mm | Height: 570 mm | Depth: 250 mm
Required mounting cut-out
Cut-out width: 280 mm | Cut-out height: 550 mm
Protection category to IEC 60 529
Internal circuit IP 55
Protection category NEMA
UL Type 12
Refrigerant/cooling medium
Refrigerant: R-513A | Quantity: 0.19 kg | Global Warming Potential (GWP): 631 | CO₂ equivalent (CO₂e): 0.12 t
Temperature control
e+ controller (factory setting +35 °C)
Operating temperature range
-20 °C...60 °C
Storage temperature range
-40 °C...70 °C
Operating temperature range of refrigerant circuit (active)
3 °C...60 °C
Heat pipe operating temperature range
-20 °C...45 °C
Setting range
20 °C...50 °C
Power consumption Pel
Power consumption L35 L35/50 Hz: 0.41 kW | Power consumption L35 L35/60 Hz: 0.41 kW | Power consumption L35 L50/50 Hz: 0.49 kW | Power consumption L35 L50/60 Hz: 0.49 kW
Permissible operating pressure (p. max.)
35 bar
Packs of
1 pc(s).
Weight/pack
15.3 kg
Customs tariff number
84158200
EAN
4028177966833
ETIM 9
EC000855
ETIM 8
EC000855
ECLASS 8.0
27180704
Product description
SK wall-mounted cooling unit Blue e+ S, 0.78 kW, 110-240 V, 1~, 50-60 Hz, sheet steel, WHD: 300 x 570 x 250 mm
