Part Number: 3181125
3181125
Manufacturer
Rittal
Part number
3181125
Category
Alt Part Number
SK 3181.125

Product Information

Extended Description

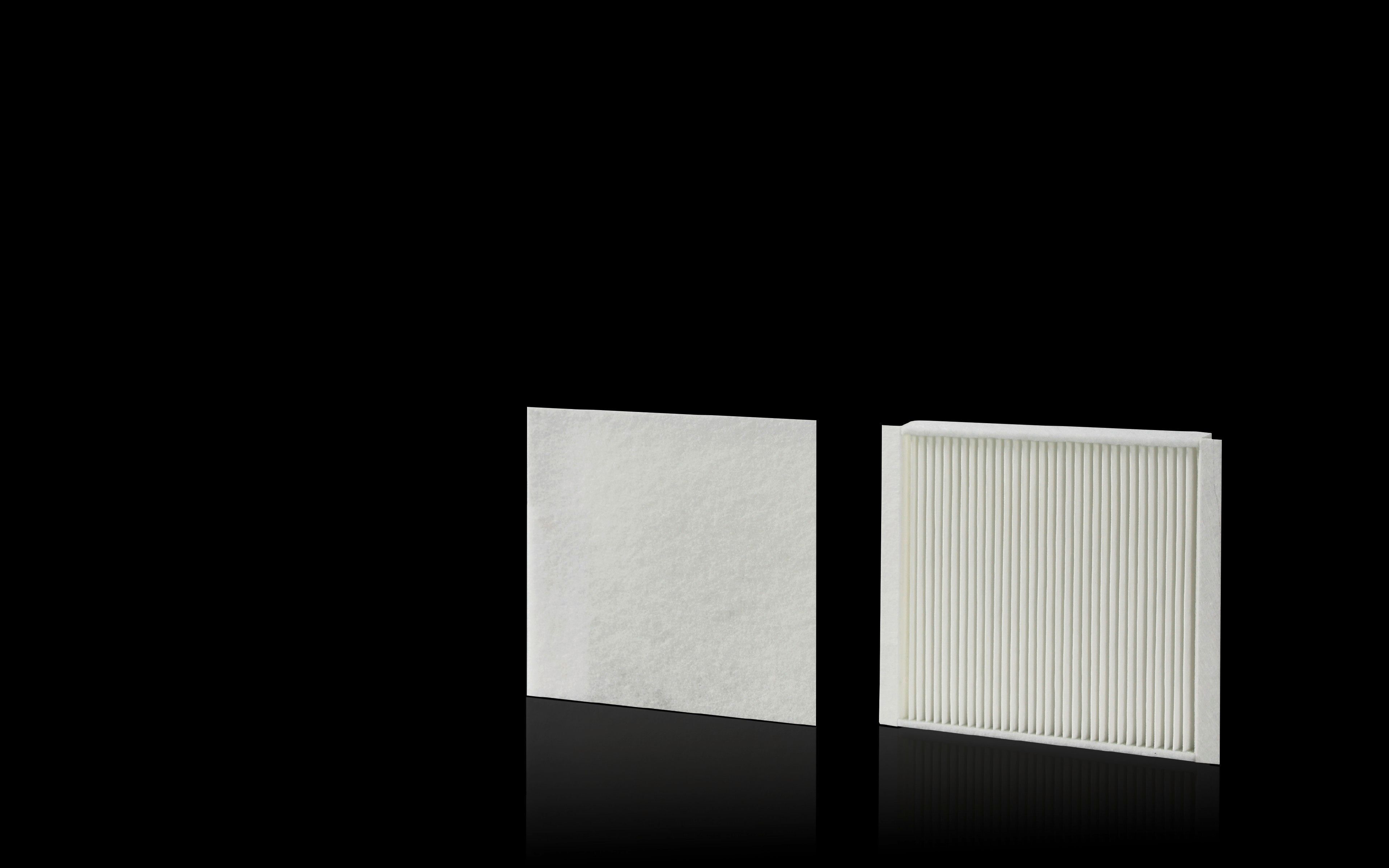

3181125 Rittal: SK Pleated filter IP55, for fan-and-filter units/outlet filters 3239.xxx, WHD: 167x167x21 mm
Article number
SK 3181.125
Design
for fan-and-filter units / outlet filters
Material
Pleated filter: Based on polyester, meltblown polycarbonate | Absorber mat: 100% polyester
Colour
White
Note
Performance data, protection category and device approvals are only guaranteed when used in conjunction with original Rittal filter mats.
To fit Model No.
3239.xxx
Dimensions
Width: 167 mm | Height: 167 mm | Depth: 21 mm
Dimensions of absorber mat
Width: 173 mm | Height: 173 mm
IP protection category to IEC 60 529
IP55 in fan-and-filter units/outlet filters
Note on Model No.
No suitable for use in EMC fan-and-filter units.
Weight/pack
0.36 kg
Packs of
5 pc(s).
Customs tariff number
56039390
EAN
4028177969100
ETIM 9
EC002513
ETIM 8
EC002513
ECLASS 8.0
27180706
Product description
SK Pleated filter IP55, for fan-and-filter units/outlet filters 3239.xxx, WHD: 167x167x21 mm
