3183125
Part Number: 3183125
Manufacturer
Rittal
Part number
3183125
Category
Alt Part Number
SK 3183.125
Product Information
Extended Description

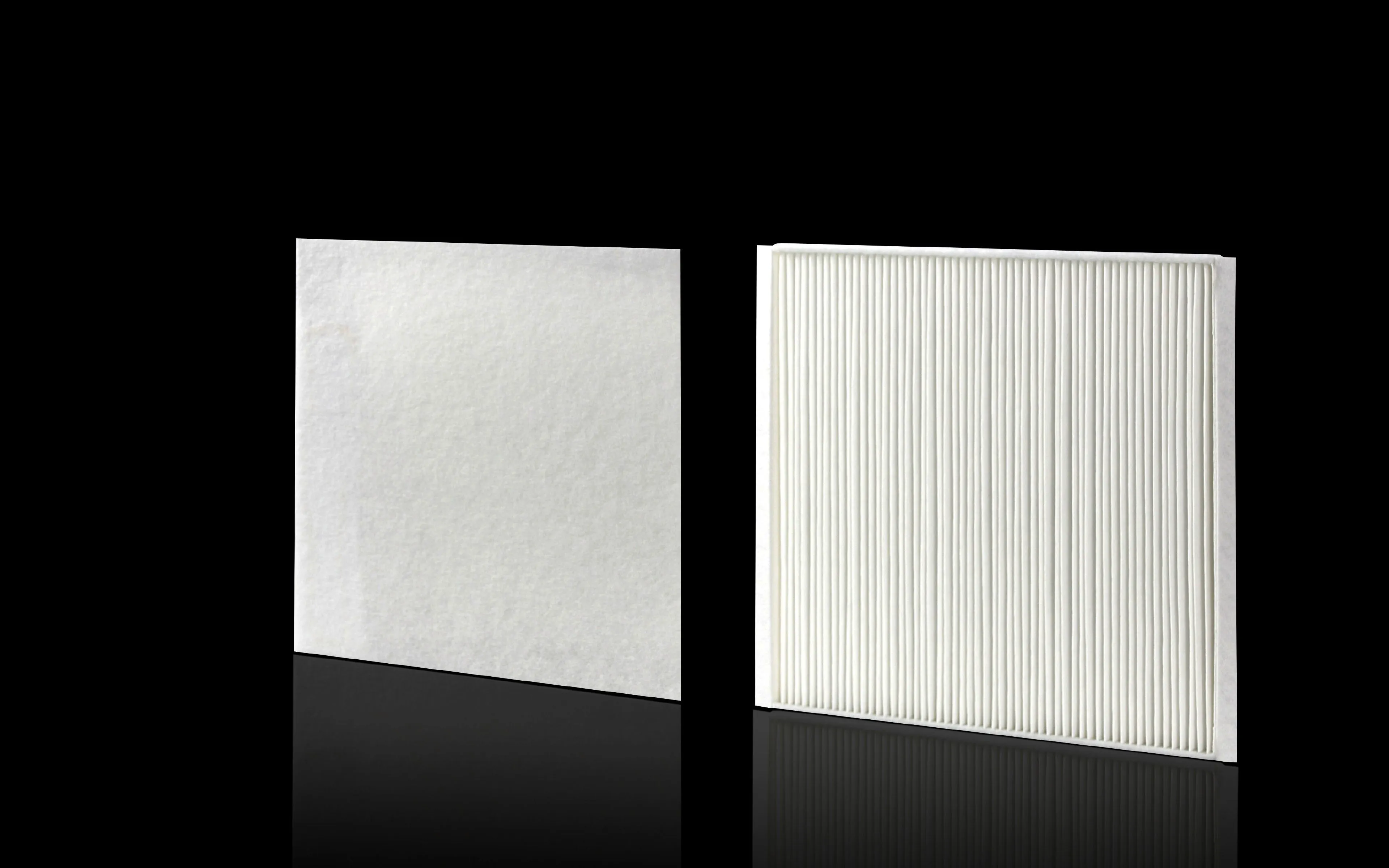

3183125 Rittal: SK Pleated filter IP 55, for fan-and-filter units/outlet filters 3243./3244./3245.xxx, WHD: 280x280x21 mm
Article number
SK 3183.125
Design
for fan-and-filter units / outlet filters
Material
Pleated filter: Based on polyester, meltblown polycarbonate | Absorber mat: 100% polyester
Colour
White
Note
Performance data, protection category and device approvals are only guaranteed when used in conjunction with original Rittal filter mats.
To fit Model No.
3243.xxx
Dimensions
Width:Â 280 mm | Height:Â 282 mm | Depth:Â 21 mm
Dimensions of absorber mat
Width:Â 289 mm | Height:Â 289 mm
IP protection category to IEC 60 529
IP55 in fan-and-filter units/outlet filters
Protection category
In conjunction with fan-and-filter units/outlet filters 3245.xxx, the protection category is IP52
Note on Model No.
No suitable for use in EMC fan-and-filter units.
Weight/pack
0.9 kg
Packs of
5 pc(s).
Customs tariff number
56039390
EAN
4028177969087
ETIM 9
EC002513
ETIM 8
EC002513
ECLASS 8.0
27180706
Product description
SK Pleated filter IP 55, for fan-and-filter units/outlet filters 3243./3244./3245.xxx, WHD: 280x280x21 mm
