3187330
Part Number: 3187330
Product Information
Extended Description

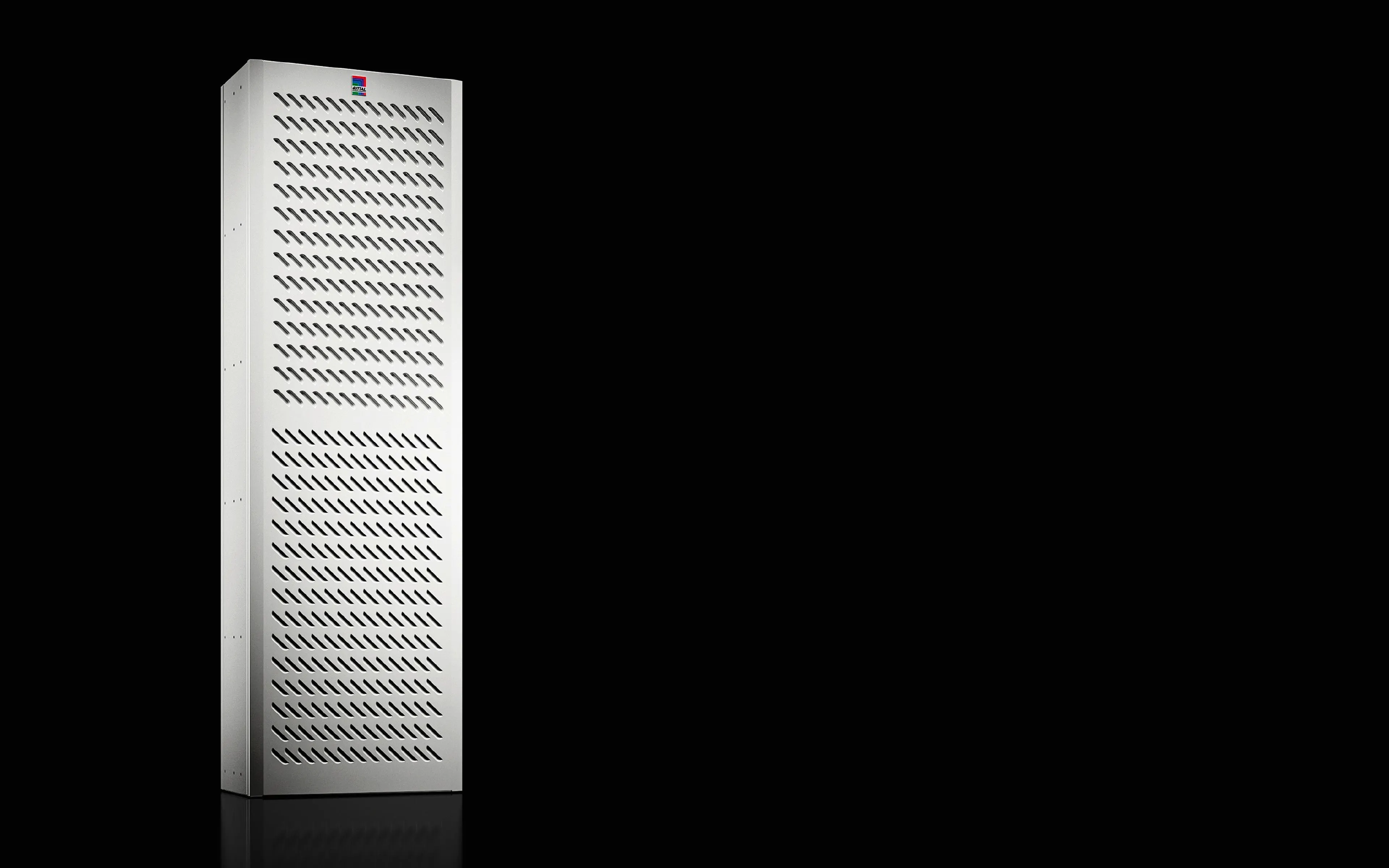

3187330 Rittal: SK Cooling unit Blue e+, wall-mounted, Outdoor, 2.5 kW, 110-240 V, 1~, 380-480 V, 3~, 50-60 Hz, aluminium, WHD: 465 x 1640 x 260 mm
Article number
SK 3187.330
Design
wall-mounted | Outdoor
Product description
The energy-efficient wall-mounted cooling unit Blue e+ Outdoor can be used worldwide, thanks to its multi-voltage capability, and is suitable for use with Toptec project solutions, for example.
Benefits
Average 75% energy savings thanks to speed-regulated components and heat pipe technology
Material
Aluminium AlMg3
Surface finish
Powder-coated | UV-resistant pure polyester
Colour
RAL 7035
Supply includes
Condenser with hydrophobic RiNano coating | Integral electric condensate evaporation | Fully wired ready for connection (plug-in terminal strip) | Mounting frame for universal attachment to outdoor enclosures for external, partial internal and full internal mounting. | Assembly parts
Options
For remote monitoring and networking of cooling units and chillers in the Blue e+ generation, please use the IoT interface (Model No. 3124.300). Increase machine availability and process reliability with remote monitoring of device data, statuses and system messages.
Total cooling output to DIN EN 14511
Cooling output L35 L35/50 Hz: 2.5 kW | Cooling output L35 L35/60 Hz: 2.5 kW | Cooling output L35 L50/50 Hz: 1.6 kW | Cooling output L35 L50/60 Hz: 1.6 kW
Rated operating voltage
110 V - 240 V, 1~, 50 Hz/60 Hz
Note
By downloading the software, a contract is concluded between the contractual partner and Rittal for the free use of the software in accordance with these licence conditions.
Note on Model No.
Tolerance: 110 V -10% (99 V) and 240 V +10% (264 V) / 380 V -10% (342 V) and 480 V +6% (509 V)
Rated power input
1.05 kW
Power consumption Pel
Power consumption L35 L35/50 Hz: 1.08 kW | Power consumption L35 L35/60 Hz: 1.08 kW | Power consumption L35 L50/50 Hz: 1.03 kW | Power consumption L35 L50/60 Hz: 1.03 kW
Temperature control
e+ controller (factory setting +35 °C)
Dimensions
Width: 465 mm | Height: 1,640 mm | Depth: 260 mm
Enclosure dimensions including sealing frame and designer cover
Width: 517 mm | Height: 1,692 mm | Depth: 260 mm
Installation type
Universal installation (external mounting, partial internal mounting, full internal mounting)
IP protection category to IEC 60 529
with mounting frame: internal circuit IP56
Protection category NEMA
with mounting frame: UL Type 12/3R/4
Air throughput (unimpeded air flow)
External circuit: 1,250 m³/h | Internal circuit: 1,250 m³/h
Refrigerant/cooling medium
Refrigerant: R-513A | Quantity: 1.07 kg | Global Warming Potential (GWP): 631 | CO₂ equivalent (CO₂e): 0.68 t
Energy efficiency ratio (EER) 50/60 Hz L35 L35
Refrigeration factor L35 L35 (EER) 50 Hz: 2.31 | Refrigeration factor L35 L35 (EER) 60 Hz: 2.31
To fit
Enclosure type: Toptec | Width: ≥ 800 mm | Height: ≥ 1,800 mm
To fit Model No.
9888.560
Setting range
20 °C...50 °C
Operating temperature range
-30 °C...60 °C
Operating temperature range of refrigerant circuit (active)
3 °C...60 °C
Heat pipe operating temperature range
-30 °C...45 °C
Storage temperature range
-40 °C...70 °C
Permissible operating pressure (p. max.)
2.4
Noise level
70 dB(A)
Packs of
1 pc(s).
Weight/pack
56.8 kg
Customs tariff number
84158200
EAN
4028177967311
ETIM 9
EC000855
ETIM 8
EC000855
ECLASS 8.0
27180704
Product description
SK Cooling unit Blue e+, wall-mounted, Outdoor, 2.5 kW, 110-240 V, 1~, 380-480 V, 3~, 50-60 Hz, aluminium, WHD: 465 x 1640 x 260 mm
