3189940
Part Number: 3189940
Product Information
Extended Description

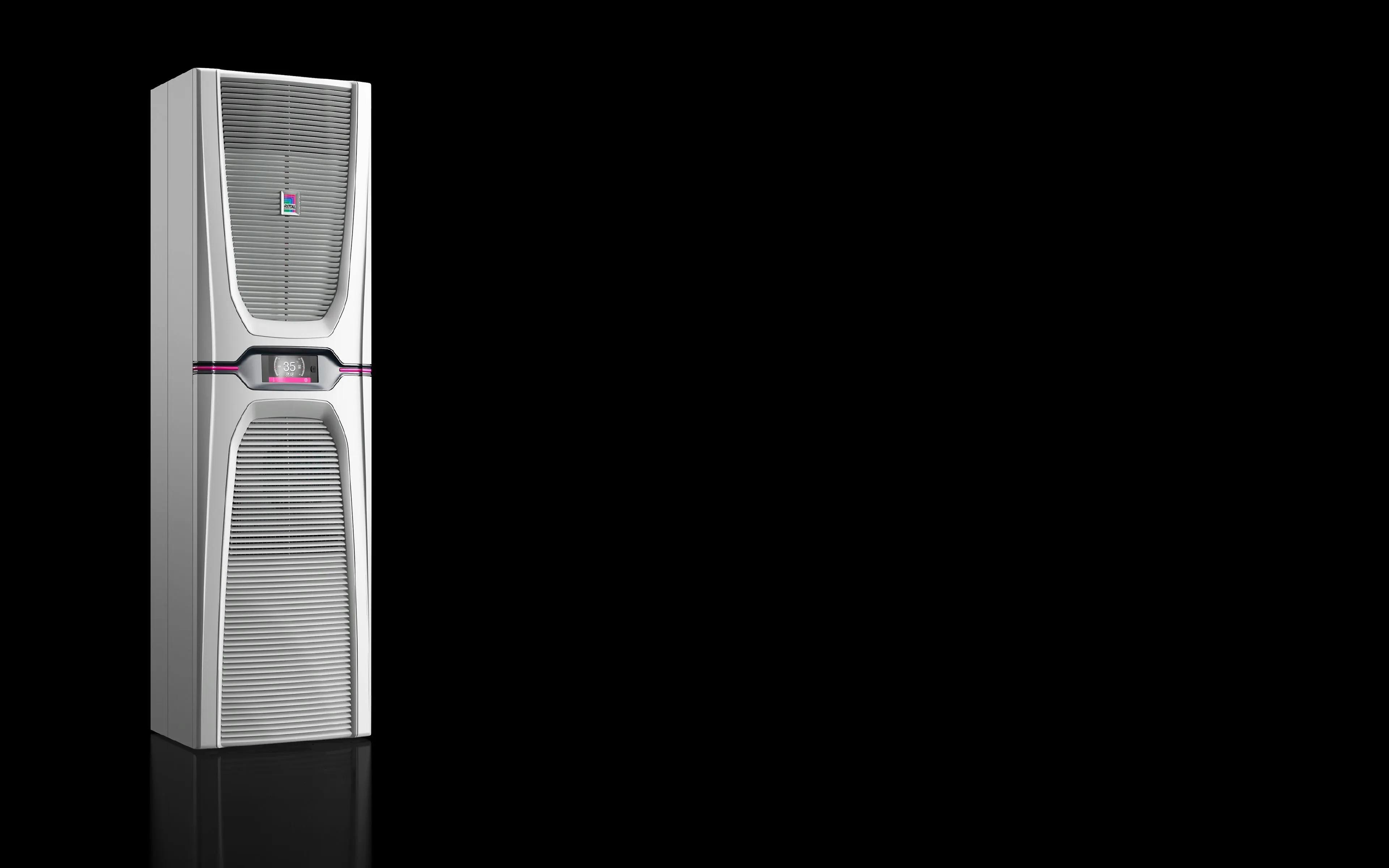

3189940 Rittal: SK cooling unit Blue e+, wall-mounted, 5.5 kW, 380-480 V, 3~, 50-60 Hz, sheet steel, WHD: 450 x 1600 x 393 mm
Article number
SK 3189.940
Design
wall-mounted
Benefits
Average 75% energy savings thanks to speed-regulated components and heat pipe technology
Material
Sheet steel
Colour
RAL 7035
Supply includes
Condenser with hydrophobic RiNano coating | Integral electric condensate evaporation | Assembly parts | Fully wired ready for connection (plug-in terminal strip)
Options
For remote monitoring and networking of cooling units and chillers in the Blue e+ generation, please use the IoT interface (Model No. 3124.300). Increase machine availability and process reliability with remote monitoring of device data, statuses and system messages.
Total cooling output to DIN EN 14511
Cooling output L35 L35/50 Hz: 5.5 kW | Cooling output L35 L35/60 Hz: 5.5 kW | Cooling output L35 L50/50 Hz: 3.95 kW | Cooling output L35 L50/60 Hz: 3.95 kW
Rated operating voltage
380 V - 480 V, 3~, 50 Hz/60 Hz
Note
Please observe the mounting instructions.
Note on Model No.
Tolerance: 380 V -10% (342 V) and 480 V +5% (509 V)
Rated power input
2.35 kW
Air throughput (unimpeded air flow)
External circuit: 2,300 m³/h | Internal circuit: 2,300 m³/h
Energy efficiency ratio (EER) 50/60 Hz L35 L35
Refrigeration factor L35 L35 (EER) 50 Hz: 2.5 | Refrigeration factor L35 L35 (EER) 60 Hz: 2.5
Seasonal energy efficiency ratio (SEER) 50/60 Hz
6.2
Design
wall-mounted
Dimensions
Width: 450 mm | Height: 1,600 mm | Depth: 393 mm
Required mounting cut-out
Cut-out width: 433 mm | Cut-out height: 1,579 mm
Protection category to IEC 60 529
Internal circuit IP 55
Protection category NEMA
UL Type 12
Refrigerant/cooling medium
Refrigerant: R-513A | Quantity: 1.8 kg | Global Warming Potential (GWP): 631 | CO₂ equivalent (CO₂e): 1.14 t
Temperature control
e+ controller (factory setting +35 °C)
Operating temperature range
-20 °C...60 °C
Storage temperature range
-40 °C...70 °C
Operating temperature range of refrigerant circuit (active)
3 °C...60 °C
Heat pipe operating temperature range
-20 °C...45 °C
Setting range
20 °C...50 °C
Power consumption Pel
Power consumption L35 L35/50 Hz: 2.2 kW | Power consumption L35 L35/60 Hz: 2.2 kW | Power consumption L35 L50/50 Hz: 2.2 kW | Power consumption L35 L50/60 Hz: 2.2 kW
Permissible operating pressure (p. max.)
24 bar
Packs of
1 pc(s).
Weight/pack
72.4 kg
Customs tariff number
84158200
EAN
4028177708075
ETIM 9
EC000855
ETIM 8
EC000855
ECLASS 8.0
27180704
Product description
SK cooling unit Blue e+, wall-mounted, 5.5 kW, 380-480 V, 3~, 50-60 Hz, sheet steel, WHD: 450 x 1600 x 393 mm
