3201300
Part Number: 3201300
Product Information
Extended Description

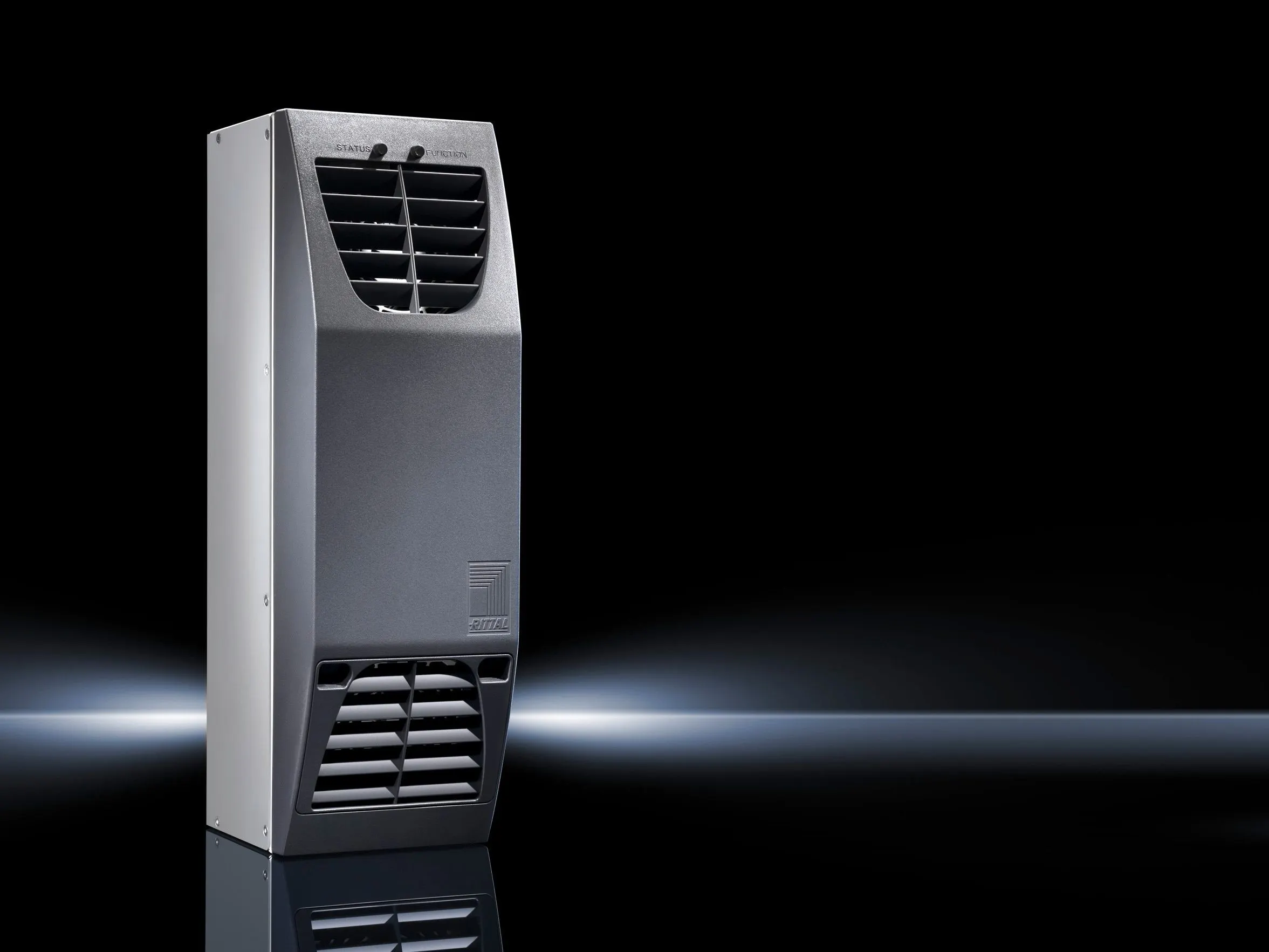

3201300 Rittal: SK Thermoelectric cooler, 80 W, 24 V (DC), WHD: 125 x 400 x 155 mm
Article number
SK 3201.300
Product description
Powerful thermoelectric cooling units in a lightweight design for the climate control of command panels and small enclosures.
Material
Device: Aluminium, anodised
General colour
RAL 7015
Colour
Cover: RAL 7015
Supply includes
Thermoelectric climate control unit | Fully wired ready for connection (plug-in terminal strip) | Mounting accessories | Filter mat | USB cable A/B | Drilling template
Total cooling output to DIN EN 14511
Cooling output L35 L35/50 Hz: 80 W
Total cooling output L35 L30
Cooling output L35 L30/50 Hz : 100 W
Rated operating voltage
24 V (DC)
Rated current max.
4.5 A
Start-up current (LRA)
4.5 A
Air throughput (unimpeded air flow)
External circuit: 45 m³/h | Internal circuit: 45 m³/h
Energy efficiency ratio (EER) 50/60 Hz L35 L35
Refrigeration factor L35 L35 (EER) 50 Hz: 0.9
Thermal output
80 W
Design
wall-mounted
Dimensions
Width: 125 mm | Height: 400 mm | Depth: 155 mm
Protection category to IEC 60 529
External circuit IP 34
Type of electrical connection
Plug-in spring connection terminal
Temperature control
PID control (factory setting: cooling +35 °C / heating +5 °C)
Operating temperature range
-30 °C...60 °C
Cooling setting range
5 °C...55 °C
Heating setting range
-10 °C...20 °C
Pre-fuse
Miniature circuit-breaker/fuse: 10 A
Packs of
1 pc(s).
Weight/pack
2.6 kg
Customs tariff number
84186900
EAN
4028177598621
ETIM 9
EC000855
ETIM 8
EC000855
ECLASS 8.0
27180704
Product description
SK Thermoelectric cooler, 80 W, 24 V (DC), WHD: 125 x 400 x 155 mm
