3201970
Part Number: 3201970
Manufacturer
Rittal
Part number
3201970
Category
Alt Part Number
SK 3201.970
Product Information
Extended Description

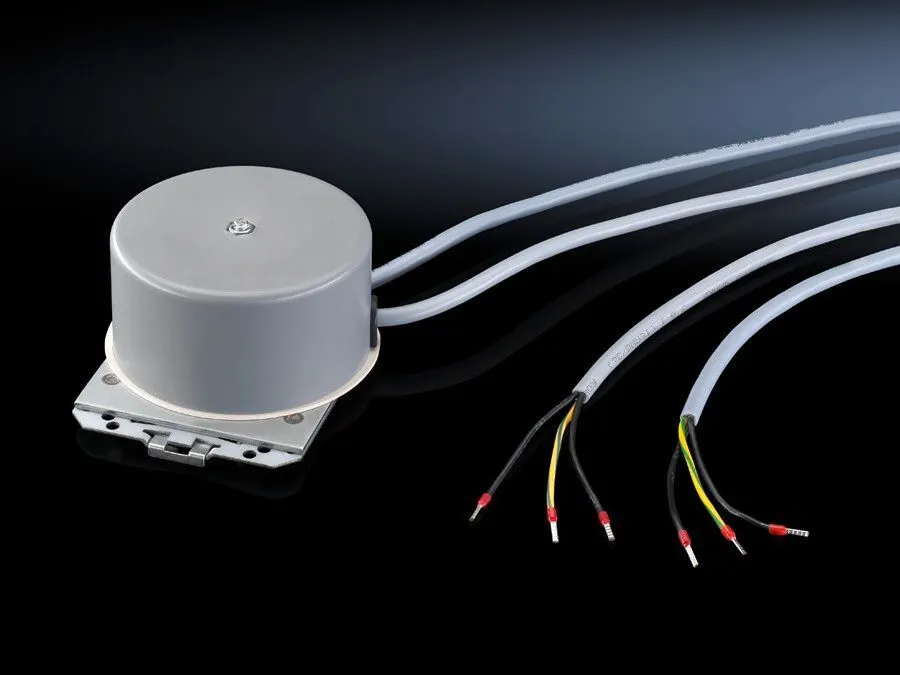

3201970 Rittal: SK Toroidal transformer, 115 V (primary), 1~, 50/60 Hz, 230 V (secondary), 1~, 50/60 Hz, WHD: 105 x 123 x 55 mm
Article number
SK 3201.970
Product description
For the power supply of wall-mounted 230 V air/water heat exchangers. Available with 115 V or 400 V primary connection.
Technical specifications
Output 110 VA
Supply includes
Toroidal transformer | Assembly parts
Snap-mounting to support rails TS 35
Yes
To fit Model No.
3363.X0X
Dimensions
Width: 105 mm | Height: 123 mm | Depth: 55 mm
Rated operating voltage
115 V (primary), 1~, 50 Hz/60 Hz
Packs of
1 pc(s).
Weight/pack
2.23 kg
Customs tariff number
85043121
EAN
4028177690233
ETIM 9
EC000855
ETIM 8
EC000855
ECLASS 8.0
27180704
Product description
SK Toroidal transformer, 115 V (primary), 1~, 50/60 Hz, 230 V (secondary), 1~, 50/60 Hz, WHD: 105 x 123 x 55 mm
