3201990
Part Number: 3201990
Manufacturer
Rittal
Part number
3201990
Category
Alt Part Number
SK 3201.990
Product Information
Extended Description

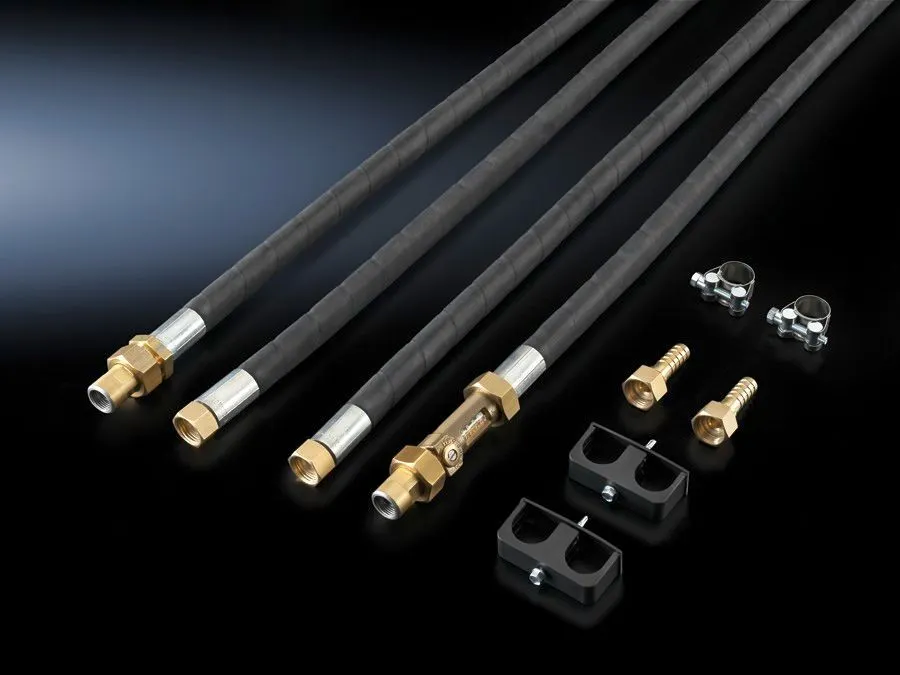

3201990 Rittal: SK Connection set, for air/water heat exchanger, G 3/8" internal thread, Length: 3600 mm
Article number
SK 3201.990
Product description
For professional laying of water connections and regulation of volumetric flow. The pressure hoses may be cut to length individually, depending on the application.
Material
Water-carrying parts EPDM/brass
Supply includes
Hose for water return | Hose for water inlet including regulator valve for regulating the volumetric flow (setting range 3 to 12 l/min) | Assembly parts
Length
3,600 mm
Water connections
G ⅜" internal thread
To fit Model No.
3209.XX0
Dimensions
Length: 3,600 mm
Permissible operating pressure (p. max.)
1 ‐ 10 bar
Packs of
1 pc(s).
Weight/pack
4.24 kg
Customs tariff number
39173900
EAN
4028177709270
ETIM 9
EC000855
ETIM 8
EC000855
ECLASS 8.0
27180704
Product description
SK Connection set, for air/water heat exchanger, G 3/8" internal thread, Length: 3600 mm
