3214700
Part Number: 3214700
Product Information
Extended Description

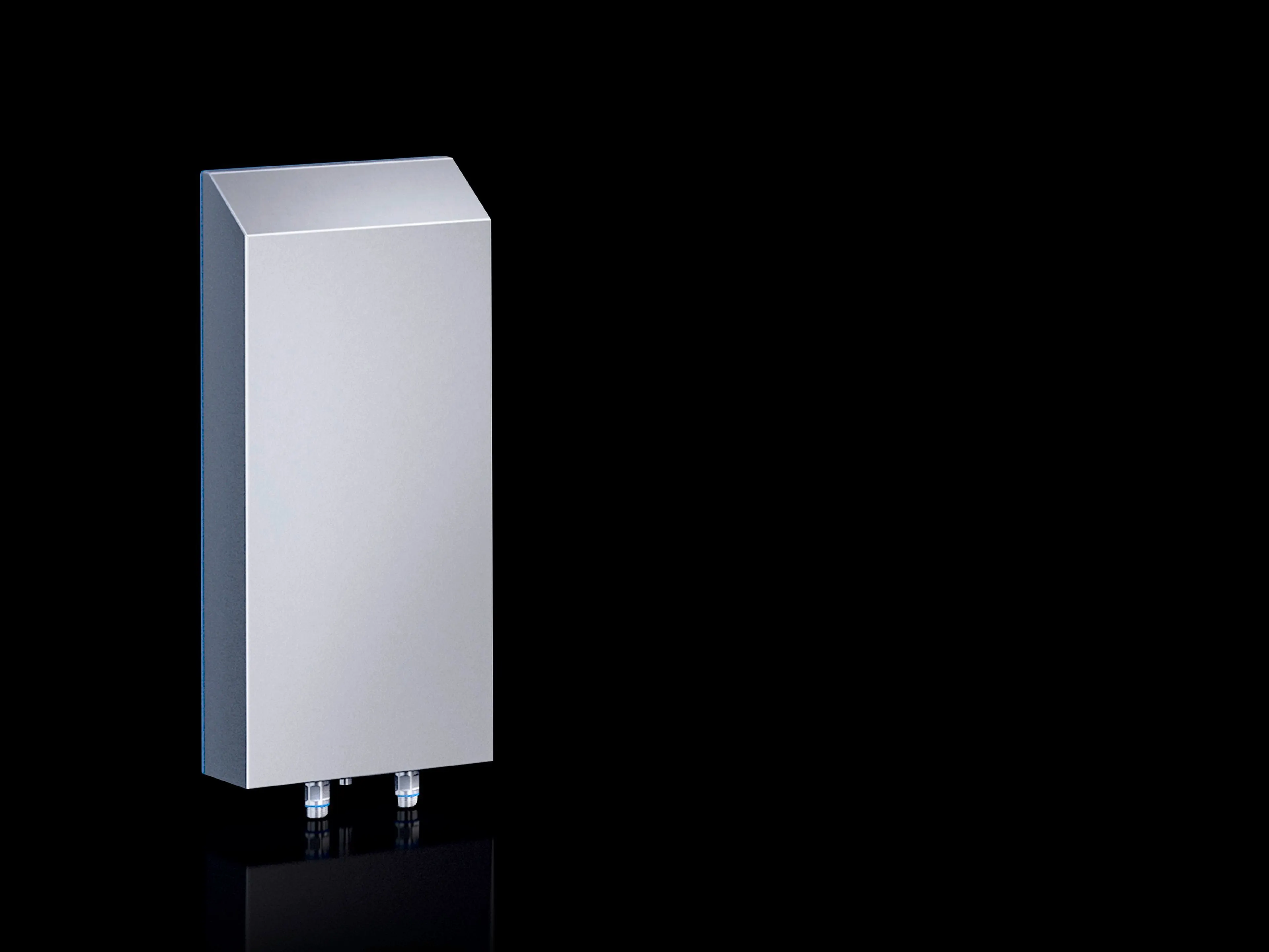

3214700 Rittal: SK Air/water heat exchanger, wall-mounted, HD, 0.65 kW, 230 V, 1~, 50/60 Hz, Thermostat-controlled magnetic valve, WHD: 220 x 526 x 100 mm
Article number
SK 3214.700
Design
wall-mounted
Product description
Air/water heat exchanger for hygiene-critical production zones in the food and beverage industry – the optimum addition to the Rittal Hygienic Design range. The cleaning-friendly design reduces the risk of contamination and ensures food safety.
Benefits
Easy-to-clean, hygienic design
Material
Enclosure: Stainless steel 1.4301 (AISI 304)
Surface finish
Enclosure: Brushed, grain 400, peak-to-valley height < 0.8 µm
Supply includes
Fully wired ready for connection | Drilling template | Sealing and assembly parts
Total cooling output
L 35 W 10 at 200 l/h: 0.6 kW | L 35 W 10 at 400 l/h: 0.65 kW
Rated operating voltage
230 V, 1~, 50 Hz/60 Hz
Power consumption Pel
At 50 Hz: 33 W | At 60 Hz: 34 W
Rated current max.
At 50 Hz: 0.16 A | At 60 Hz: 0.14 A
Permissible operating pressure (p. max.)
1 ‐ 10 bar
Duty cycle
100 %
Cooling medium
Water (see Internet for specifications)
Water inlet temperature
1 °C...30 °C
Water connections
G ⅜" external thread
Temperature control
Thermostat-controlled magnetic valve
Temperature monitoring
Internal thermostat, with change-over contact, switching load 16 A, setting range +20 °C ... +60 °C (factory setting +35 °C)
Operating temperature range
1 °C...70 °C
Note
To achieve a protection category of IP 66/69 to IEC 60 529, the ingress of leakage air through the condensate discharge opening must be completely prevented.
Dimensions
Width: 220 mm | Height: 526 mm | Depth: 100 mm
Pre-fuse
Miniature circuit-breaker/fuse: 2 A
Setting range
20 °C...60 °C
Protection category to IEC 60 529
IP 56/59
Protection category NEMA
NEMA 4X
Packs of
1 pc(s).
Weight/pack
6 kg
Customs tariff number
84158300
EAN
4028177806399
ETIM 9
EC002515
ETIM 8
EC002515
ECLASS 8.0
27180712
Product description
SK Air/water heat exchanger, wall-mounted, HD, 0.65 kW, 230 V, 1~, 50/60 Hz, Thermostat-controlled magnetic valve, WHD: 220 x 526 x 100 mm
