3215700
Part Number: 3215700
Product Information
Extended Description

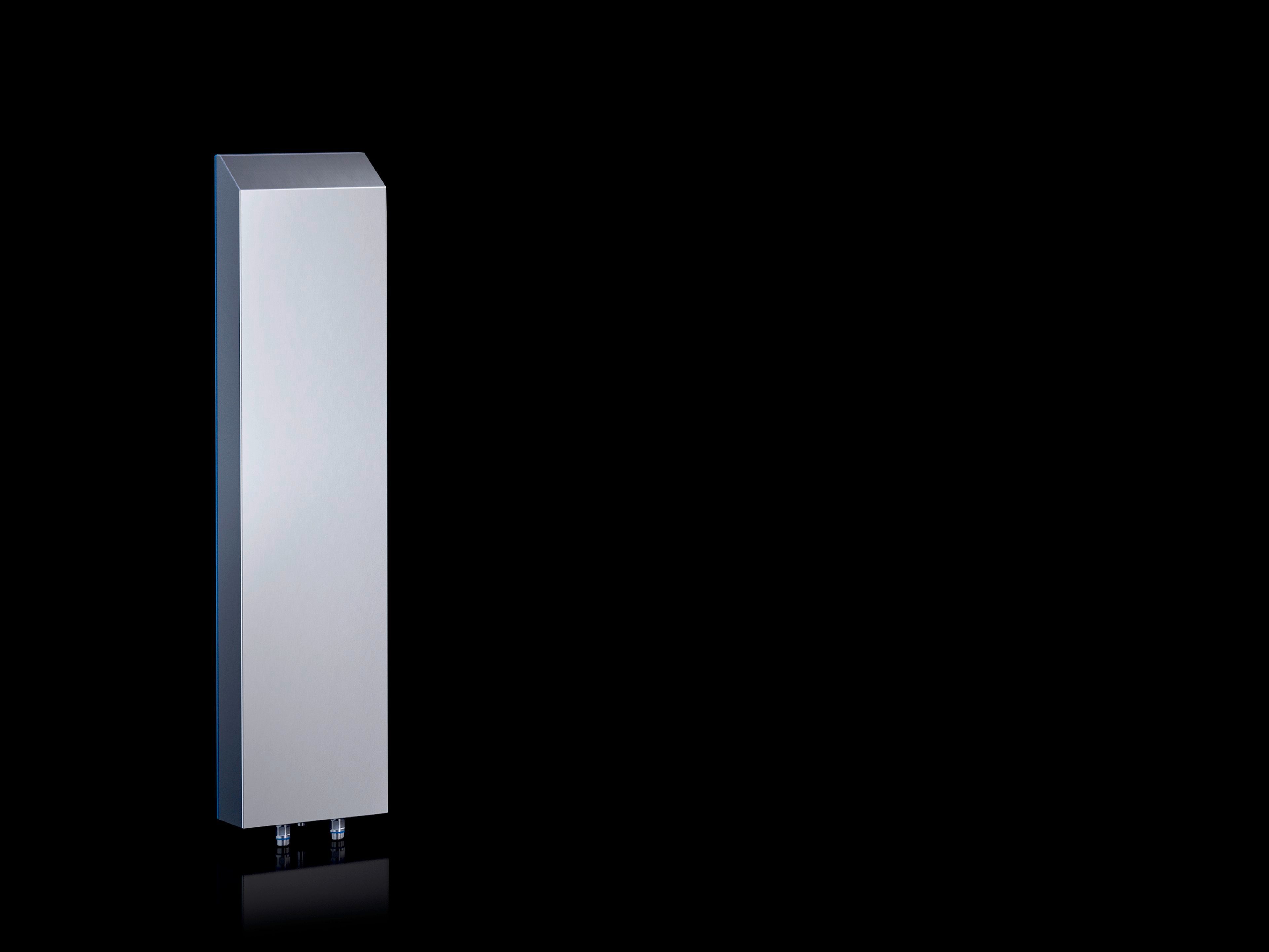

3215700 Rittal: SK Air/water heat exchanger, wall-mounted, HD, 1.2 kW, 230 V, 1~, 50/60 Hz, Thermostat-controlled magnetic valve, WHD: 215 x 982 x 100 mm
Article number
SK 3215.700
Design
wall-mounted
Product description
Air/water heat exchanger for hygiene-critical production zones in the food and beverage industry – the optimum addition to the Rittal Hygienic Design range. The cleaning-friendly design reduces the risk of contamination and ensures food safety.
Benefits
Easy-to-clean, hygienic design
Material
Enclosure: Stainless steel 1.4301 (AISI 304)
Surface finish
Enclosure: Brushed, grain 400, peak-to-valley height < 0.8 µm
Supply includes
Fully wired ready for connection | Drilling template | Sealing and assembly parts
Total cooling output
L 35 W 10 at 200 l/h: 1 kW | L 35 W 10 at 400 l/h: 1.2 kW
Rated operating voltage
230 V, 1~, 50 Hz/60 Hz
Power consumption Pel
At 50 Hz: 77 W | At 60 Hz: 104 W
Rated current max.
At 50 Hz: 0.38 A | At 60 Hz: 0.47 A
Permissible operating pressure (p. max.)
1 ‐ 10 bar
Duty cycle
100 %
Cooling medium
Water (see Internet for specifications)
Water inlet temperature
1 °C...30 °C
Water connections
G ⅜" external thread
Temperature control
Thermostat-controlled magnetic valve
Temperature monitoring
Internal thermostat, with change-over contact, switching load 16 A, setting range +20 °C ... +60 °C (factory setting +35 °C)
Operating temperature range
1 °C...70 °C
Note
To achieve a protection category of IP 66/69 to IEC 60 529, the ingress of leakage air through the condensate discharge opening must be completely prevented.
Dimensions
Width: 215 mm | Height: 982 mm | Depth: 100 mm
Pre-fuse
Miniature circuit-breaker/fuse: 4 A
Setting range
20 °C...60 °C
Protection category to IEC 60 529
IP 56/59
Protection category NEMA
NEMA 4X
Packs of
1 pc(s).
Weight/pack
14 kg
Customs tariff number
84158300
EAN
4028177806405
ETIM 9
EC002515
ETIM 8
EC002515
ECLASS 8.0
27180712
Product description
SK Air/water heat exchanger, wall-mounted, HD, 1.2 kW, 230 V, 1~, 50/60 Hz, Thermostat-controlled magnetic valve, WHD: 215 x 982 x 100 mm
