3232721
Part Number: 3232721
Product Information
Extended Description

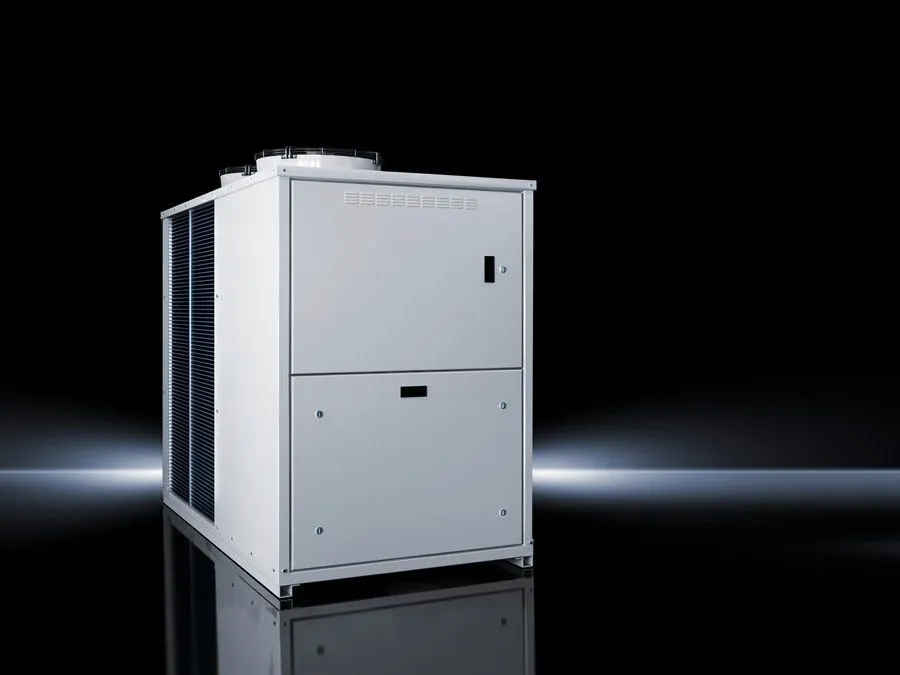

3232721 Rittal: SK Chillers for IT cooling, 36 kW, 400 V, 3~, 50 Hz, WHD: 810x1542x1800 mm
Article number
SK 3232.721
Benefits
Indirect free cooling – internal and external
Technical specifications
Compact design with control components in the front and air intake via both side panels, air outlet upwards
Applications
Especially for cooling IT applications, such as LCP or CRAC
Colour
RAL 7035
Supply includes
Chiller wired ready for connection | Multilingual documentation | Functional diagram and wiring plans
Options
Free cooling may be integrated from 15 kW. Please follow the instructions | Buffer store for separate siting | Emergency cooling with mains water infeed
Rated operating voltage
400 V, 3~, 50 Hz
Rated current max.
At 50 Hz: 37 A
Tank
Material: Steel tank, with 10 mm condensate insulation | Volume: 48 l
Cooling output (footnote)
Cooling output makes allowance for 35% glycol
Cooling output TW15 TU35/50 Hz
36 kW
Pump pressure
2.5 bar
Pump capacity (at 2.5 bar/50 Hz)
120 l/min
Water connections
G 1½" internal thread
Operating weight
553 kg
Number of cooling circuits
1
Monitoring
Monitoring of all system-relevant parameters such as: water inlet, refrigerant and pump parameters and alarms, as well as optional cooling outputs and energy efficiency
Note
Technical deviations in terms of cooling output, dimensions or weight are possible for unit types with free cooling
Air throughput (unimpeded air flow)
At 50 Hz: 14,000 m³/h
Dimensions
Width: 810 mm | Height: 1,542 mm | Depth: 1,800 mm
Operating temperature range of cooling medium
5 °C...15 °C
Operating temperature range
-20 °C...43 °C
Permissible operating pressure (p. max.)
28 bar
Power consumption Pel
At 50 Hz: 14.6 kW
Packs of
1 pc(s).
Weight/pack
505 kg
Customs tariff number
84186900
EAN
4028177682238
ECLASS 8.0
27180713
Product description
SK Chillers for IT cooling, 36 kW, 400 V, 3~, 50 Hz, WHD: 810x1542x1800 mm
