3236124
Part Number: 3236124
Manufacturer
Rittal
Part number
3236124
Category
Alt Part Number
SK 3236.124
Product Information
Extended Description

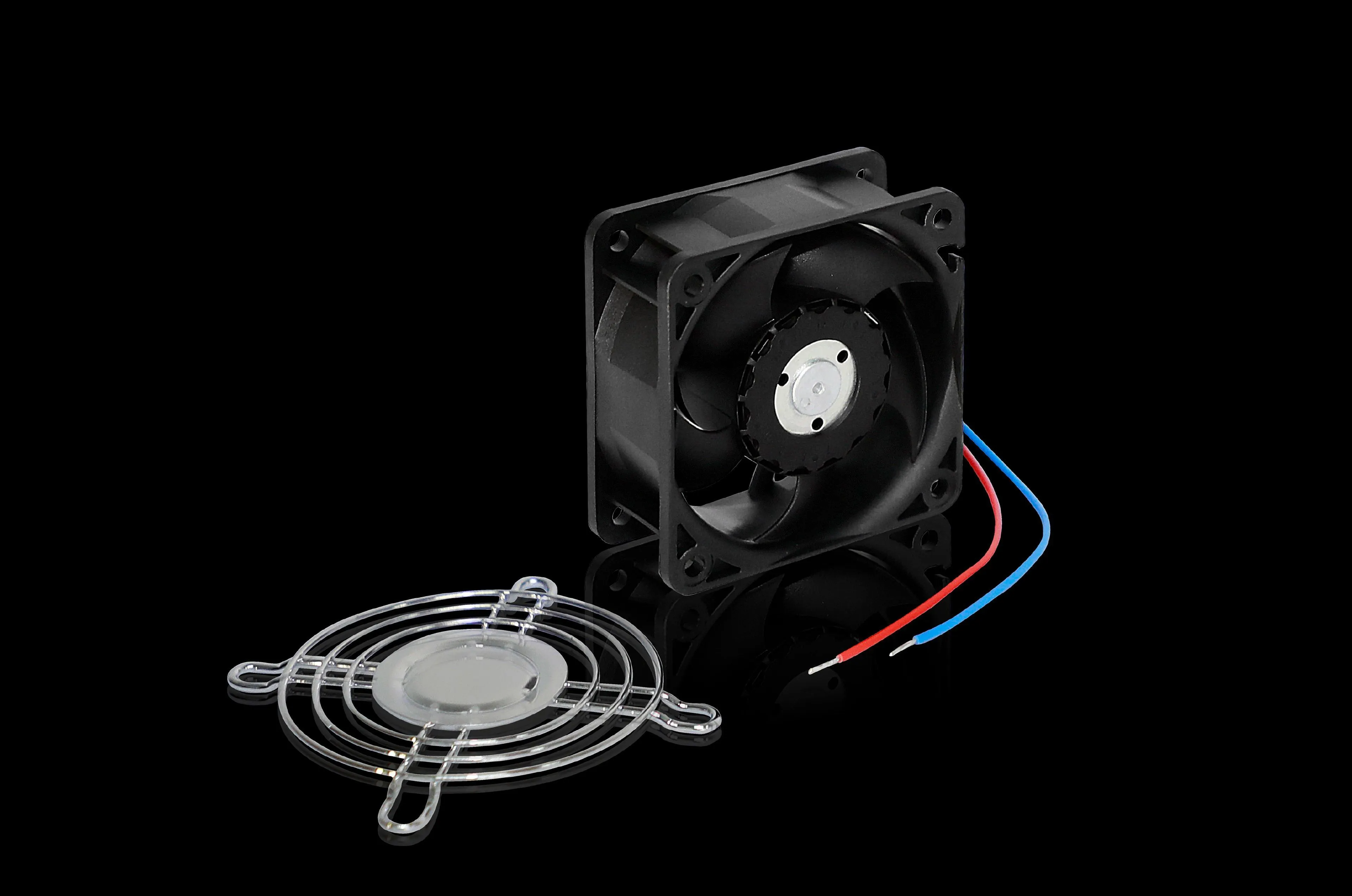

3236124 Rittal: SK Mini fan, 1 W, 24 V (DC), WHD: 60 x 60 x 25.4 mm
Article number
SK 3236.124
Product description
Compact DC fan for enclosure and component cooling in enclosures.
Supply includes
Fan | Assembly screws | Contact hazard protection
Rated operating voltage
24 V (DC)
Power consumption Pel
With DC: 1 W
Dimensions
Width: 60 mm | Height: 60 mm | Depth: 25.4 mm
Note
Electrical connection via 2 single wires (length approx. 300 mm)
Operating temperature range
-20 °C...70 °C
Noise level
With DC: 20 dB(A)
Weight/pack
0.14 kg
Packs of
1 pc(s).
Customs tariff number
84145915
EAN
4028177637603
ETIM 9
EC000320
ETIM 8
EC000320
ECLASS 8.0
27180716
Product description
SK Mini fan, 1 W, 24 V (DC), WHD: 60 x 60 x 25.4 mm
