3237700
Part Number: 3237700
Product Information
Extended Description

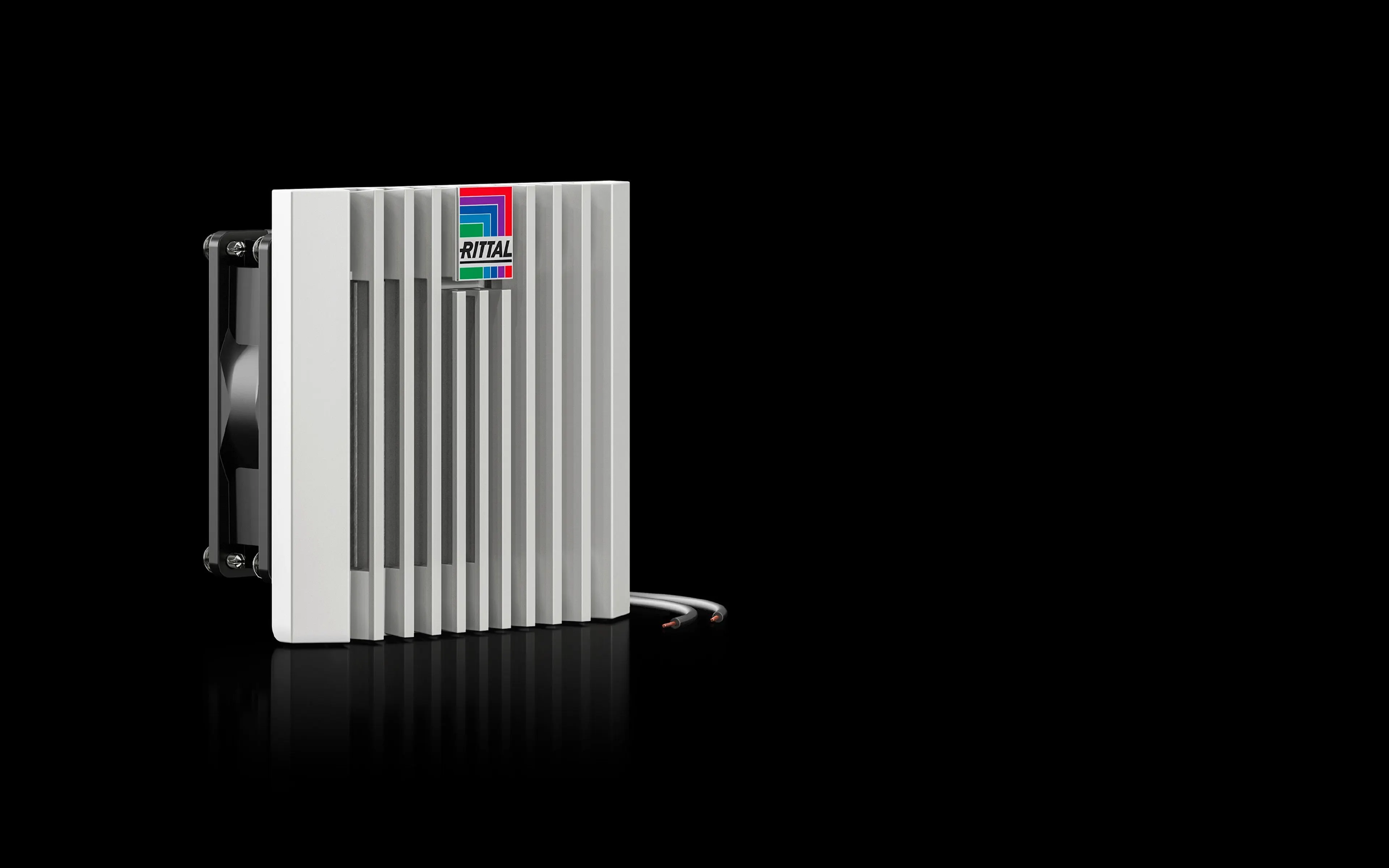

3237700 Rittal: SK Blue e+ fan-and-filter unit, 20/25 m³/h, 230 V, 1~, 50 Hz/60 Hz, WHD 116.5 x 116.5 x 64.5 mm, RAL 7035
Article number
SK 3237.700
Design
wall-mounted
Product description
Fan-and-filter units with diagonal fan technology have superior pressure stability and ensure a more constant air throughput. The diagonal direction of outflow ensures more even heat dissipation from the enclosure.
Benefits
Easy filter changes, thanks to a new opening mechanism on the louvred grille
Colour
RAL 7035
Supply includes
Complete unit ready to install, including chopped-fibre filter mat
Fan
Axial, shaded pole motor
Air throughput, unimpeded airflow (with chopped-fibre filter)
At 50 Hz: 20 m³/h | At 60 Hz: 25 m³/h
Air throughput with matching outlet filter including chopped-fibre filter
At 50 Hz: 15 m³/h | At 60 Hz: 18 m³/h
Rated operating voltage
230 V, 1~, 50 Hz/60 Hz
Power consumption Pel
At 50 Hz: 13 W | At 60 Hz: 11.1 W
Rated current max.
At 50 Hz: 0.1 A | At 60 Hz: 0.09 A
Dimensions
Width: 116.5 mm | Height: 116.5 mm | Depth: 64.5 mm
Installation depth
46 mm
Mounting cut-out
Cut-out width: 92 mm | Cut-out height: 92 mm
IP protection category to IEC 60 529
IP54 with chopped-fibre filter
Protection category NEMA
Type 12 with chopped-fibre filter
Pre-fuse
Miniature circuit-breaker/fuse: 2 A
Note
With the fan-and-filter unit 3237.XXX, electrical connection is made via two single wires (length approx. 300 mm) on the unit, for all other fan-and-filter units, a screwless spring terminal is used
Operating temperature range
-15 °C...55 °C
Storage temperature range
-30 °C...70 °C
Noise level
At 50 Hz: 42 dB(A) | At 60 Hz: 47 dB(A)
Weight/pack
0.4 kg
Packs of
1 pc(s).
Customs tariff number
84145915
EAN
4028177997776
ETIM 9
EC000320
ETIM 8
EC000320
ECLASS 8.0
27180716
Product description
SK Blue e+ fan-and-filter unit, 20/25 m³/h, 230 V, 1~, 50 Hz/60 Hz, WHD 116.5 x 116.5 x 64.5 mm, RAL 7035
