3238066
Part Number: 3238066
Manufacturer
Rittal
Part number
3238066
Category
Alt Part Number
SK 3238.066
Product Information
Extended Description

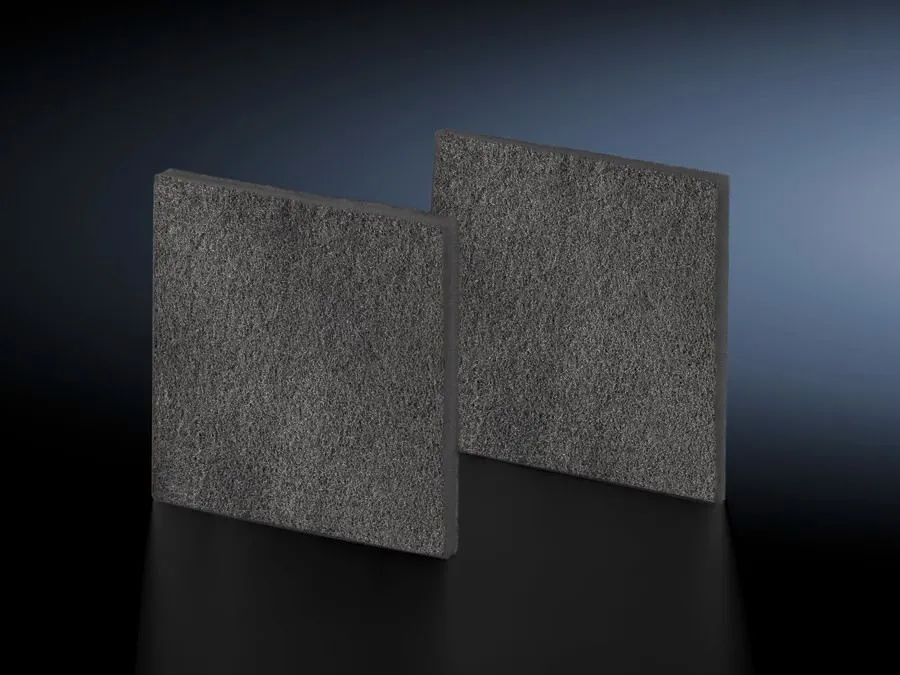

3238066 Rittal: SK spare filter mats, for EMC-filter fans, for SK 3238.6.., WHD: 125 x 125 x 12 mm
Article number
SK 3238.066
Design
For EMC fan-and-filter unit
Product description
Made of chopped-fibre mat with a progressive structure. Temperature-resistant to 100 °C, self-extinguishing category F1 to DIN 53 438. Dust-laden air side: Open structure. Clean-air side: Closed structure. Reliable filtering of virtually all types of dust from a particle size of 10 µm.
Material
Copper-nickel-chrome coated chemical fibres
Note
Performance data, protection category and device approvals are only guaranteed when used in conjunction with original Rittal filter mats.
To fit Model No.
3238.6..
Dimensions
Width: 125 mm | Height: 125 mm | Depth: 12 mm
Filter class
to DIN EN 779: G2
Weight/pack
0.02 kg
Packs of
5 pc(s).
Customs tariff number
56039390
EAN
4028177666221
ETIM 9
EC002513
ETIM 8
EC002513
ECLASS 8.0
27180706
Product description
SK spare filter mats, for EMC-filter fans, for SK 3238.6.., WHD: 125 x 125 x 12 mm
