3238200

Part Number: 3238200
3238200
Manufacturer
Rittal
Part number
3238200
Category
Alt Part Number
SK 3238.200

Product Information

Extended Description

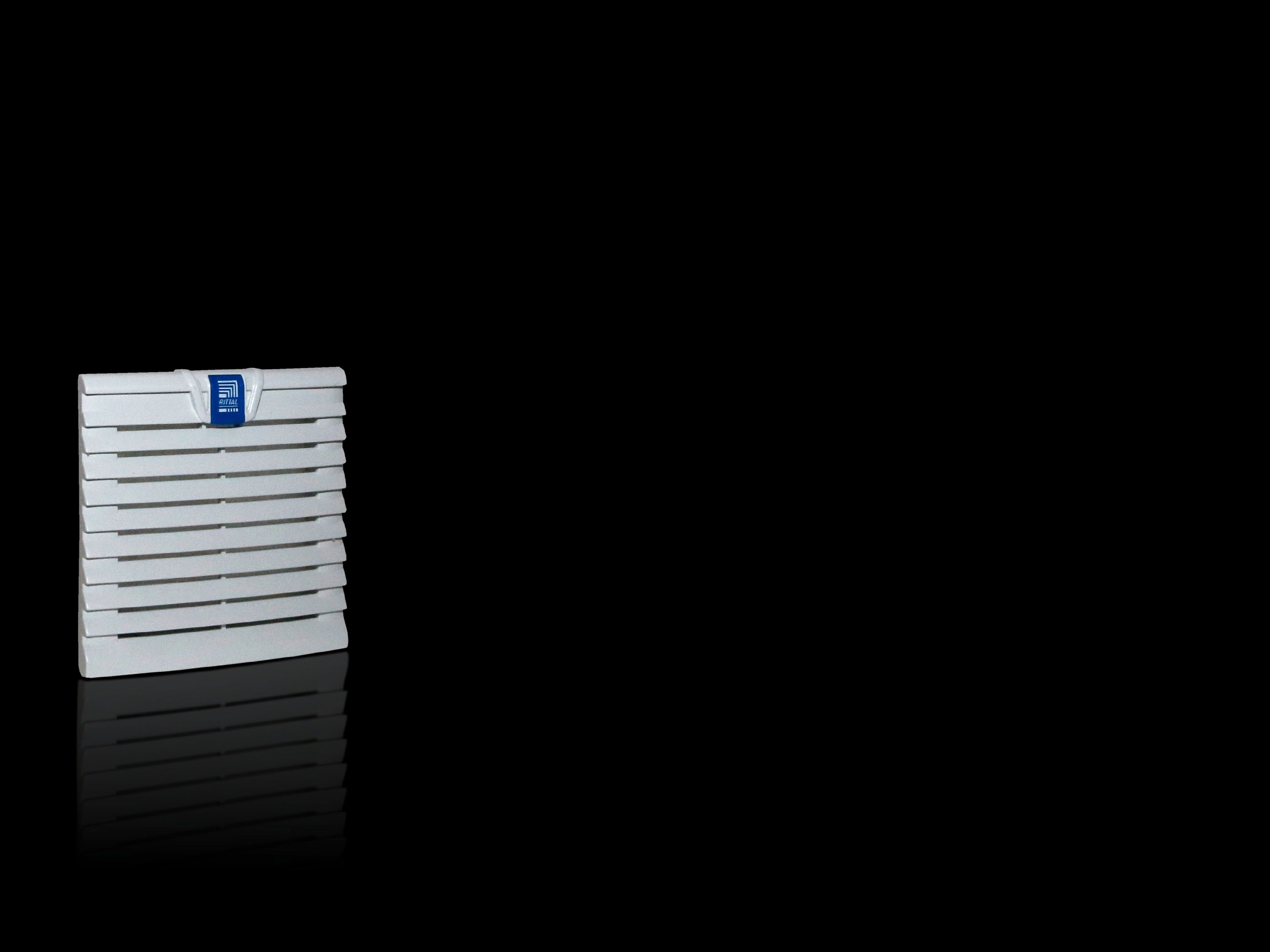

3238200 Rittal: SK outlet filter, Standard, WHD: 148.5 x 148.5 x 24 mm
Article number
SK 3238.200
Product description
For ventilation by convection, an outlet filter can be installed in the upper and lower sections of the enclosure.
Material
ABS
Colour
RAL 7035
Supply includes
Outlet filter | Chopped-fibre filter mat
Mounting cut-out
Cut-out width: 124 mm | Cut-out height: 124 mm
To fit Model No.
SK 3238.1xx
Dimensions
Width: 148.5 mm | Height: 148.5 mm | Depth: 24 mm
Protection category NEMA
Type 1 with pleated filter
IP protection category to IEC 60 529
IP54 with chopped-fibre filter/pleated filter
Weight/pack
0.18 kg
Packs of
1 pc(s).
Customs tariff number
39269097
EAN
4028177651739
ETIM 8
EC002513
ETIM 7.0
EC002513
ECLASS 8.0
27180706
Product description
SK outlet filter, Standard, WHD: 148.5 x 148.5 x 24 mm
