3238600
Part Number: 3238600
Product Information
Extended Description

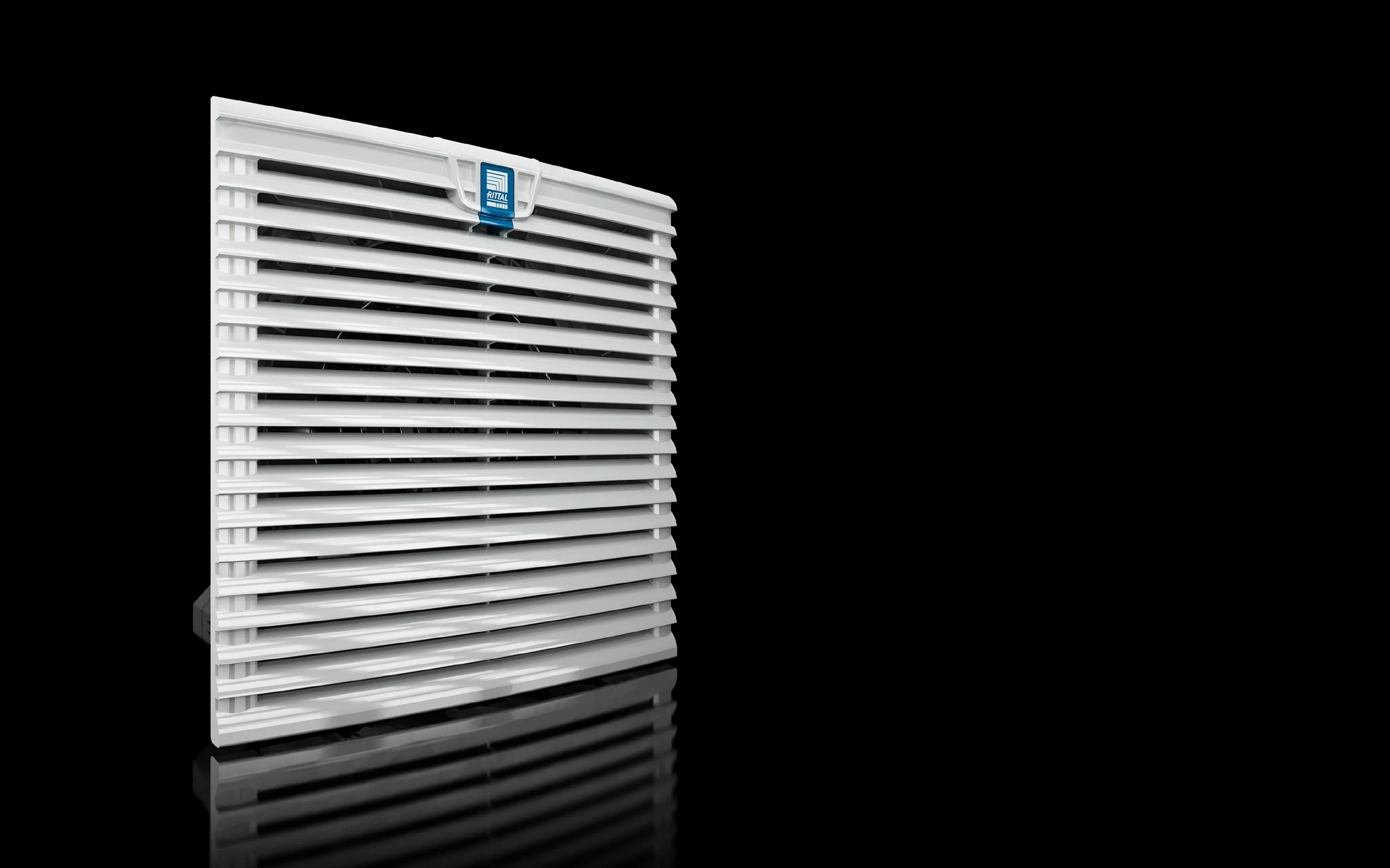

3238600 Rittal: SK Fan-and-filter unit TopTherm, 52/63 m³/h, 230 V, 1~, 50/60 Hz, WHD: 148.5 x 148.5 x 16 mm, EMC
Article number
SK 3238.600
Design
wall-mounted | EMC
Product description
EMC fan-and-filter units offer a high shielding/attenuation effect and meet requirement category 2 to EN 61587-3.
Colour
RAL 7035
Supply includes
Complete unit ready to install, including chopped-fibre filter mat
Fan
Axial, shaded pole motor
Air throughput (unimpeded air flow)
At 50 Hz: 52 m³/h | At 60 Hz: 63 m³/h
Air throughput with outlet filter including chopped-fibre filter mat (quantity x order number)
1 x 3238060: 36/42 m³/h
Rated operating voltage
230 V, 1~, 50 Hz/60 Hz
Rated current max.
At 50 Hz: 0.12 A | At 60 Hz: 0.09 A
Power consumption Pel
At 50 Hz: 15 W | At 60 Hz: 14 W
Dimensions
Width: 148.5 mm | Height: 148.5 mm
Installation dimensions
Build depth: 16 mm | Installation depth: 58.5 mm
Mounting cut-out
Cut-out width: 124 mm | Cut-out height: 124 mm
Note
To improve energy efficiency and extend the service life of the devices, we recommend the use of thermostats or temperature displays
IP protection category to IEC 60 529
IP54 with chopped-fibre filter
Protection category NEMA
Type 12 with chopped-fibre filter
Pre-fuse
Miniature circuit-breaker/fuse: 2 A
Service life of fans (L10, 40 °C)
At 50 Hz: 68,200 h | At 60 Hz: 68,200 h
Operating temperature range
-15 °C...55 °C
Storage temperature range
-30 °C...70 °C
Noise level
At 50 Hz: 46 dB(A) | At 60 Hz: 49 dB(A)
Packs of
1 pc(s).
Weight/pack
2 kg
Customs tariff number
84145915
EAN
4028177652439
ETIM 9
EC000320
ETIM 8
EC000320
ECLASS 8.0
27180716
Product description
SK Fan-and-filter unit TopTherm, 52/63 m³/h, 230 V, 1~, 50/60 Hz, WHD: 148.5 x 148.5 x 16 mm, EMC
