3238624
Part Number: 3238624
Product Information
Extended Description

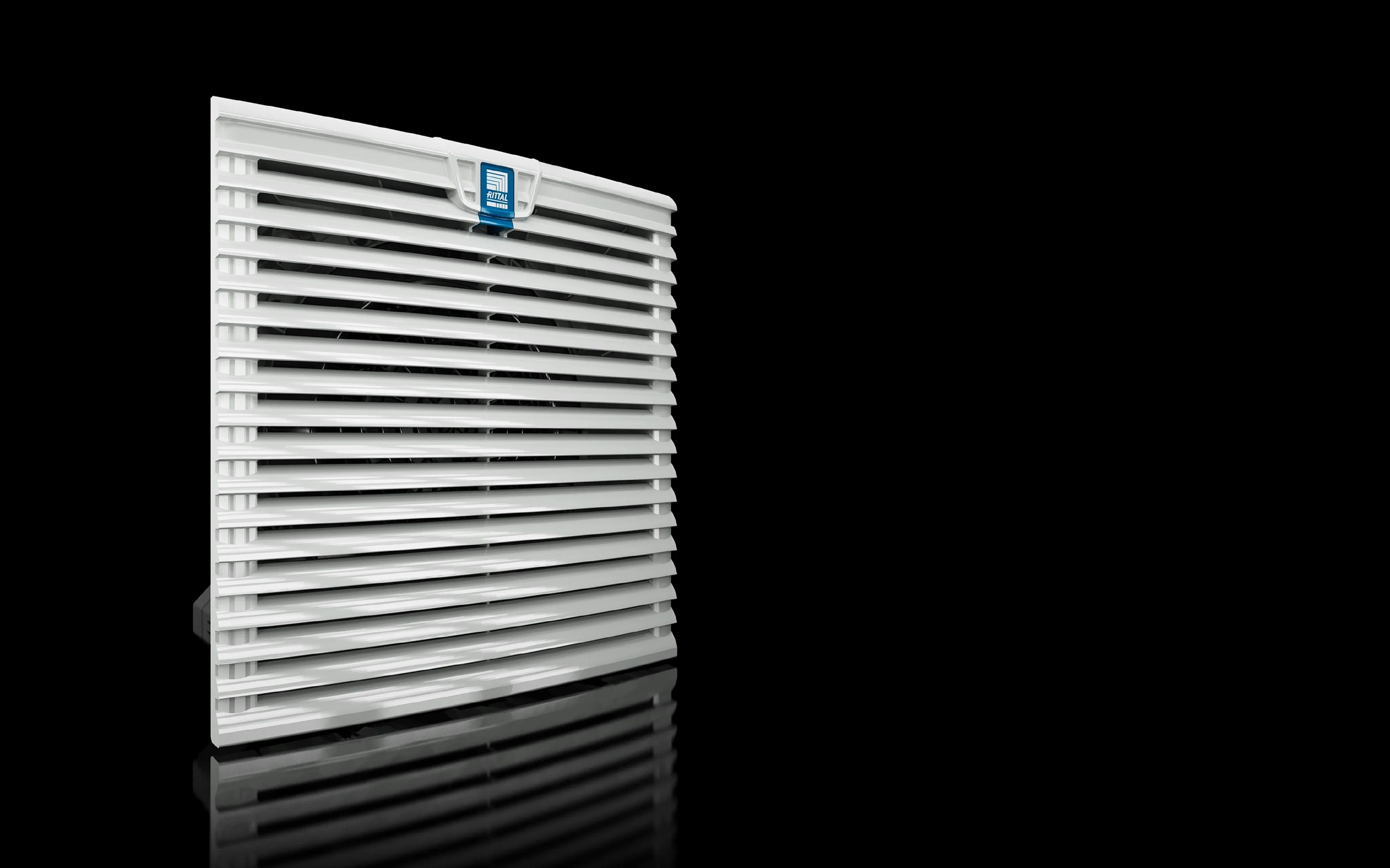

3238624 Rittal: SK Fan-and-filter unit TopTherm, 52 m³/h, 24 V (DC), WHD: 148.5 x 148.5 x 16 mm, EMC
Article number
SK 3238.624
Design
wall-mounted | EMC
Product description
EMC fan-and-filter units offer a high shielding/attenuation effect and meet requirement category 2 to EN 61587-3.
Colour
RAL 7035
Supply includes
Complete unit ready to install, including chopped-fibre filter mat
Fan
Axial, DC motor
Air throughput with outlet filter including chopped-fibre filter mat (quantity x order number)
1 x 3238060: 36 m³/h
Air throughput, unimpeded airflow (with chopped-fibre filter) DC
52 m³/h
Rated operating voltage
24 V (DC)
Rated current max.
With DC: 0.24 A
Power consumption Pel
With DC: 5.7 W
Dimensions
Width: 148.5 mm | Height: 148.5 mm
Installation dimensions
Build depth: 16 mm | Installation depth: 58.5 mm
Mounting cut-out
Cut-out width: 124 mm | Cut-out height: 124 mm
Note
To improve energy efficiency and extend the service life of the devices, we recommend the use of thermostats or temperature displays
IP protection category to IEC 60 529
IP54 with chopped-fibre filter
Protection category NEMA
Type 12 with chopped-fibre filter
Pre-fuse
Miniature circuit-breaker/fuse: 2 A
Service life
95,500 h
Operating temperature range
-15 °C...55 °C
Storage temperature range
-30 °C...70 °C
Noise level
With DC: 46 dB(A)
Packs of
1 pc(s).
Weight/pack
0.54 kg
Customs tariff number
84145915
EAN
4028177985568
ETIM 9
EC000320
ECLASS 8.0
27180716
Product description
SK Fan-and-filter unit TopTherm, 52 m³/h, 24 V (DC), WHD: 148.5 x 148.5 x 16 mm, EMC
