3238718
Part Number: 3238718
Product Information
Extended Description

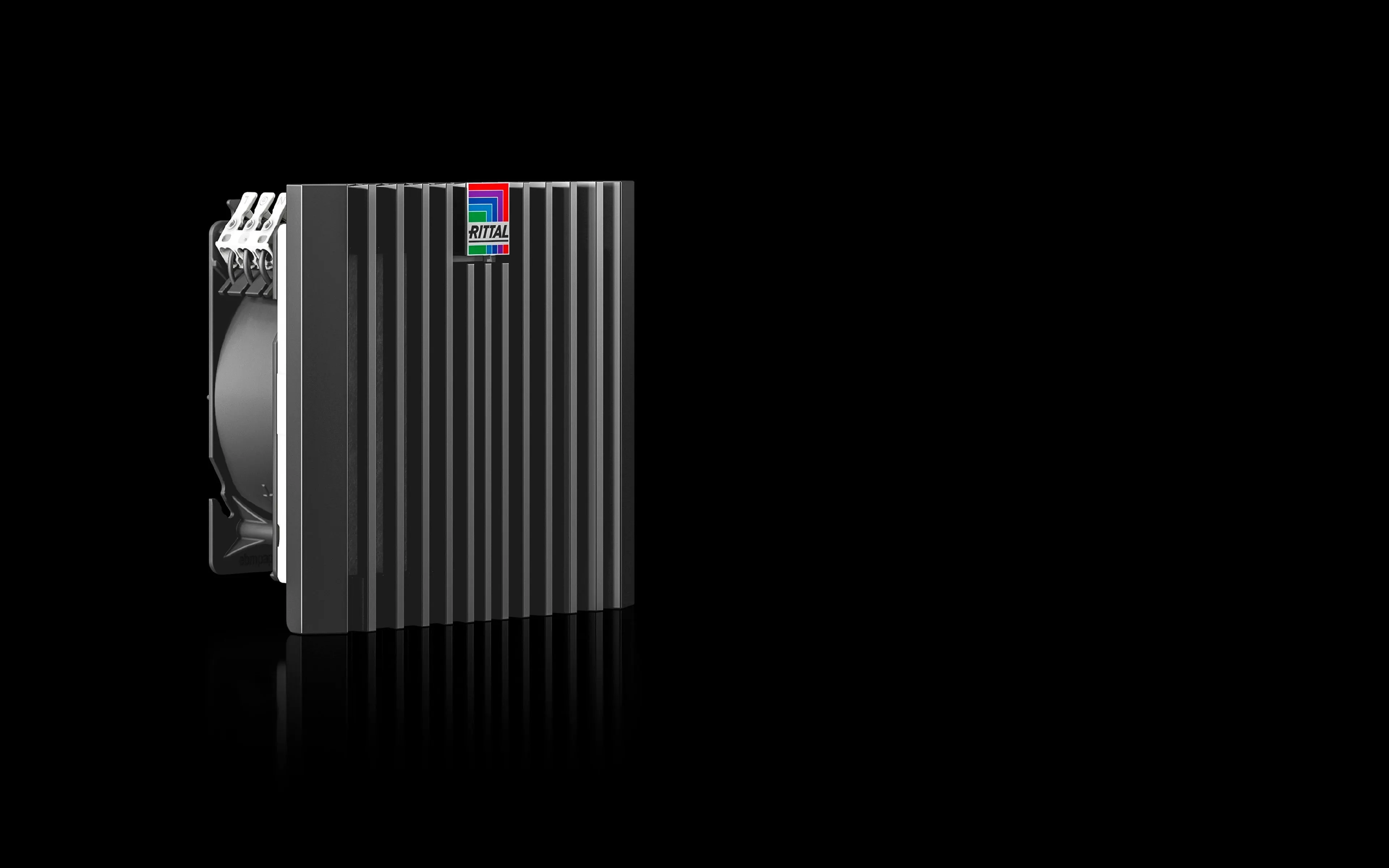

3238718 Rittal: SK Blue e+ fan-and-filter unit, 63/72 m³/h, 115 V, 1~, 50 Hz/60 Hz, WHD 148.5 x 148.5 x 82.5 mm, RAL 9005
Article number
SK 3238.718
Design
wall-mounted
Product description
Fan-and-filter units with diagonal fan technology have superior pressure stability and ensure a more constant air throughput. The diagonal direction of outflow ensures more even heat dissipation from the enclosure.
Benefits
Maximum air throughput via pleated filter included in the delivered state
Colour
RAL 9005
Supply includes
Complete unit ready to install, including pleated filter
Fan
Axial, shaded pole motor
Air throughput, unimpeded airflow (with chopped-fibre filter)
At 50 Hz: 53 m³/h | At 60 Hz: 64 m³/h
Air throughput, unimpeded airflow (with pleated filter)
At 50 Hz: 63 m³/h | At 60 Hz: 72 m³/h
Air throughput with matching outlet filter including chopped-fibre filter
At 50 Hz: 40 m³/h | At 60 Hz: 46 m³/h
Air throughput with matching outlet filter including pleated filter
At 50 Hz: 49 m³/h | At 60 Hz: 55 m³/h
Rated operating voltage
115 V, 1~, 50 Hz/60 Hz
Power consumption Pel
At 50 Hz: 15.4 W | At 60 Hz: 15.8 W
Rated current max.
At 50 Hz: 0.2 A | At 60 Hz: 0.21 A
Dimensions
Width: 148.5 mm | Height: 148.5 mm | Depth: 82.5 mm
Installation depth
64 mm
Mounting cut-out
Cut-out width: 124 mm | Cut-out height: 124 mm
IP protection category to IEC 60 529
IP54 with chopped-fibre filter/pleated filter
Protection category NEMA
Type 1 with pleated filter
Pre-fuse
Miniature circuit-breaker/fuse: 2 A
Note
With the fan-and-filter unit 3237.XXX, electrical connection is made via two single wires (length approx. 300 mm) on the unit, for all other fan-and-filter units, a screwless spring terminal is used
Operating temperature range
-15 °C...55 °C
Storage temperature range
-30 °C...70 °C
Noise level
At 50 Hz: 52 dB(A) | At 60 Hz: 54 dB(A)
Weight/pack
0.68 kg
Packs of
1 pc(s).
Customs tariff number
84145915
EAN
4028177998230
ETIM 9
EC000320
ETIM 8
EC000320
ECLASS 8.0
27180716
Product description
SK Blue e+ fan-and-filter unit, 63/72 m³/h, 115 V, 1~, 50 Hz/60 Hz, WHD 148.5 x 148.5 x 82.5 mm, RAL 9005
