3238810
Part Number: 3238810
Product Information
Extended Description

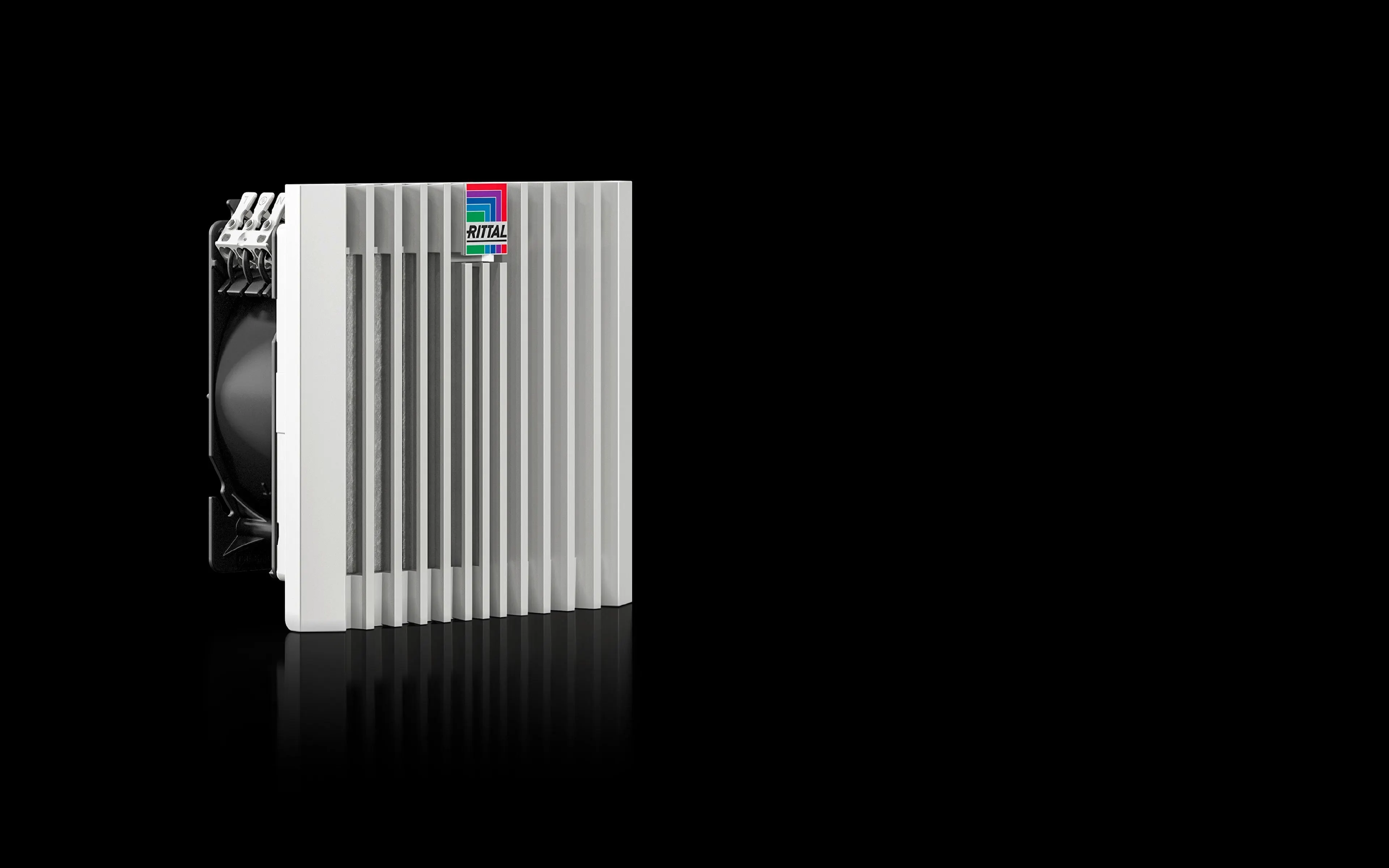

3238810 Rittal: SK Blue e+ fan-and-filter unit, EMC, 53/64 m³/h, 115 V, 1~, 50 Hz/60 Hz, WxHxD 148.5 x 148.5 x 82.5 mm, RAL 7035
Article number
SK 3238.810
Design
wall-mounted | EMC
Product description
EMC fan-and-filter units offer a high shielding/attenuation effect and meet requirement category 2 to EN 61587-3.
Benefits
Easy filter changes, thanks to a new opening mechanism on the louvred grille
Colour
RAL 7035
Supply includes
Complete unit ready to install, including EMC filter mat
Fan
Axial, shaded pole motor
Air throughput, unimpeded airflow (with chopped-fibre filter)
At 50 Hz: 53 m³/h | At 60 Hz: 64 m³/h
Air throughput with matching outlet filter including chopped-fibre filter
At 50 Hz: 40 m³/h | At 60 Hz: 46 m³/h
Rated operating voltage
115 V, 1~, 50 Hz/60 Hz
Power consumption Pel
At 50 Hz: 15.4 W | At 60 Hz: 15.8 W
Rated current max.
At 50 Hz: 0.2 A | At 60 Hz: 0.21 A
Dimensions
Width: 148.5 mm | Height: 148.5 mm | Depth: 82.5 mm
Installation depth
64 mm
Mounting cut-out
Cut-out width: 124 mm | Cut-out height: 124 mm
IP protection category to IEC 60 529
IP54 with chopped-fibre filter
Protection category NEMA
Type 12 with chopped-fibre filter
Pre-fuse
Miniature circuit-breaker/fuse: 2 A
Note
To improve energy efficiency and extend the service life of the devices, we recommend the use of thermostats or temperature displays
Operating temperature range
-15 °C...55 °C
Storage temperature range
-30 °C...70 °C
Noise level
At 50 Hz: 52 dB(A) | At 60 Hz: 54 dB(A)
Weight/pack
0.68 kg
Packs of
1 pc(s).
Customs tariff number
84145915
EAN
4028177997639
ETIM 9
EC000320
ETIM 8
EC000320
ECLASS 8.0
27180716
Product description
SK Blue e+ fan-and-filter unit, EMC, 53/64 m³/h, 115 V, 1~, 50 Hz/60 Hz, WxHxD 148.5 x 148.5 x 82.5 mm, RAL 7035
