3239724
Part Number: 3239724
Product Information
Extended Description

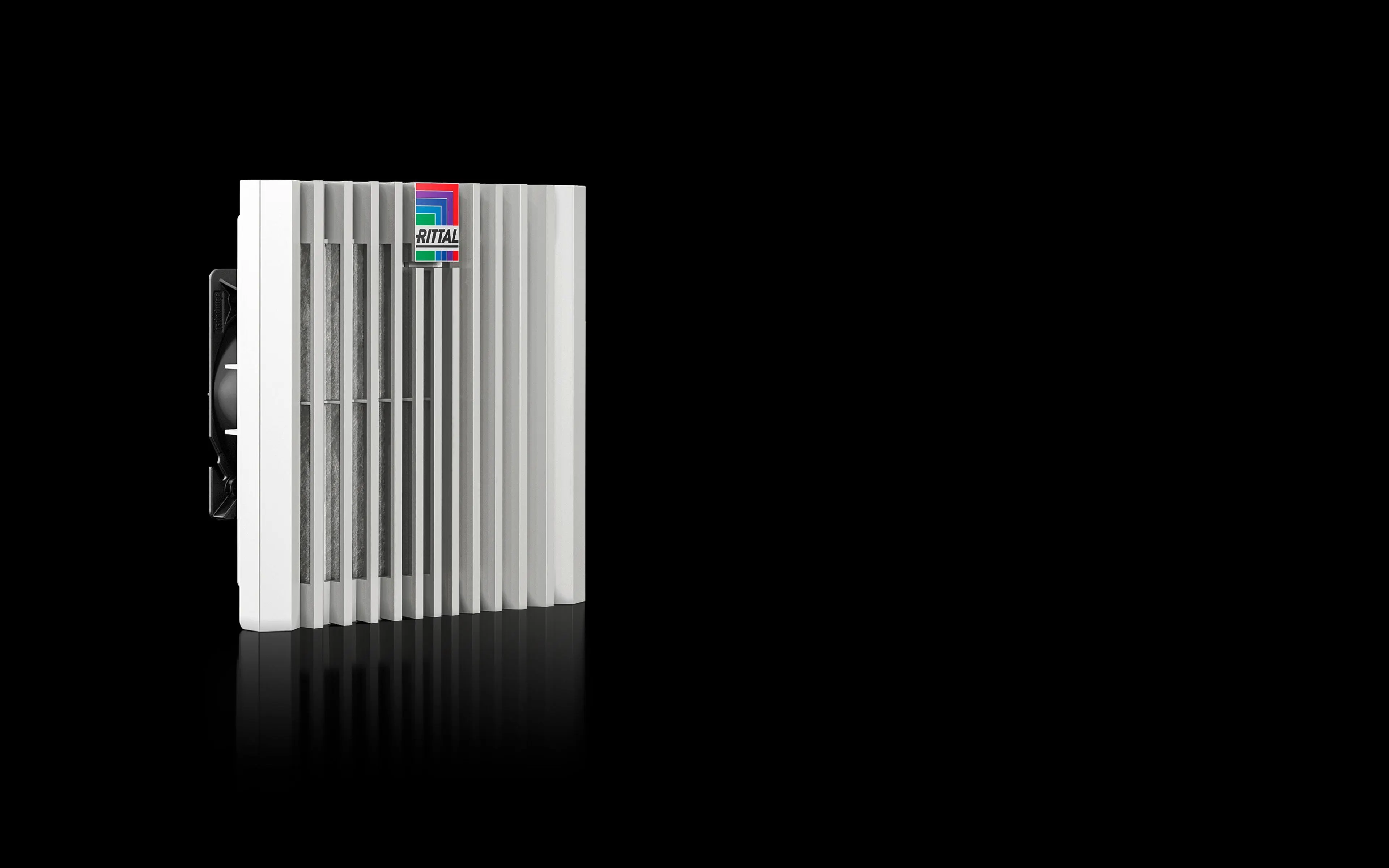

3239724 Rittal: SK Blue e+ fan-and-filter unit, 110 m³/h, 24 V (DC), WHD 204 x 204 x 105 mm, RAL 7035
Article number
SK 3239.724
Design
wall-mounted
Product description
Fan-and-filter units with diagonal fan technology have superior pressure stability and ensure a more constant air throughput. The diagonal direction of outflow ensures more even heat dissipation from the enclosure.
Benefits
Maximum air throughput via pleated filter included in the delivered state
Colour
RAL 7035
Supply includes
Complete unit ready to install, including pleated filter
Fan
Axial, DC motor
Air throughput, unimpeded airflow (with chopped-fibre filter)
With DC: 100 m³/h
Air throughput, unimpeded airflow (with pleated filter)
With DC: 110 m³/h
Air throughput with matching outlet filter including chopped-fibre filter
With DC: 75 m³/h
Air throughput with matching outlet filter including pleated filter
With DC: 92 m³/h
Rated operating voltage
24 V (DC)
Power consumption Pel
With DC: 5.7 W
Rated current max.
With DC: 0.27 A
Dimensions
Width: 204 mm | Height: 204 mm | Depth: 105 mm
Installation depth
84 mm
Mounting cut-out
Cut-out width: 177 mm | Cut-out height: 177 mm
IP protection category to IEC 60 529
IP54 with chopped-fibre filter/pleated filter
Protection category NEMA
Type 12 with chopped-fibre filter/pleated filter
Pre-fuse
Miniature circuit-breaker/fuse: 2 A
Note
With the fan-and-filter unit 3237.XXX, electrical connection is made via two single wires (length approx. 300 mm) on the unit, for all other fan-and-filter units, a screwless spring terminal is used
Operating temperature range
-15 °C...55 °C
Storage temperature range
-30 °C...70 °C
Noise level
With DC: 51 dB(A)
Weight/pack
0.66 kg
Packs of
1 pc(s).
Customs tariff number
84145915
EAN
4028177998179
ETIM 9
EC000320
ETIM 8
EC000320
ECLASS 8.0
27180716
Product description
SK Blue e+ fan-and-filter unit, 110 m³/h, 24 V (DC), WHD 204 x 204 x 105 mm, RAL 7035
