3239824
Part Number: 3239824
Product Information
Extended Description

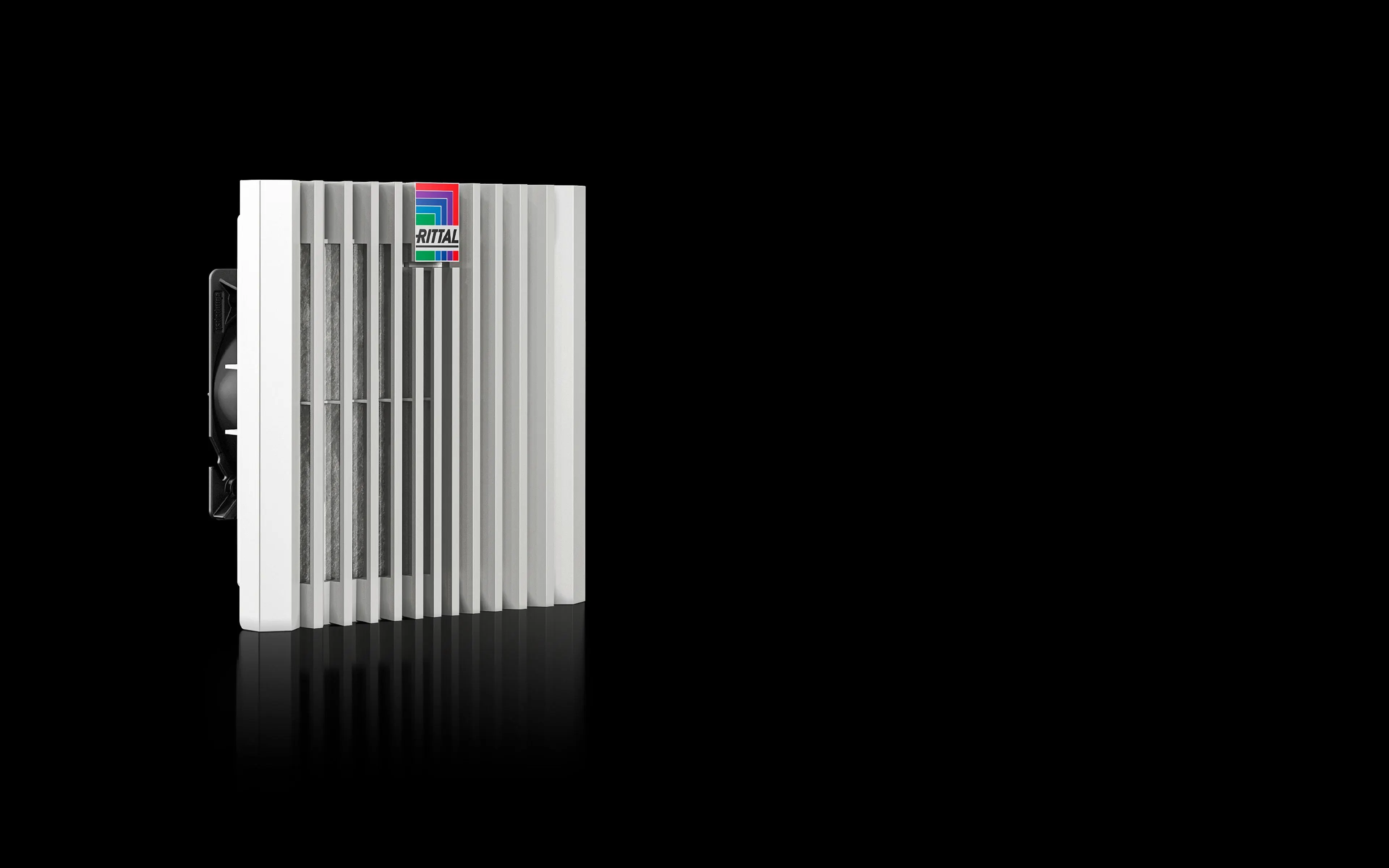

3239824 Rittal: SK Blue e+ fan-and-filter unit, EMC, 100 m³/h, 24 V (DC), WHD 204 x 204 x 105 mm, RAL 7035
Article number
SK 3239.824
Design
wall-mounted | EMC
Product description
EMC fan-and-filter units offer a high shielding/attenuation effect and meet requirement category 2 to EN 61587-3.
Benefits
Easy filter changes, thanks to a new opening mechanism on the louvred grille
Colour
RAL 7035
Supply includes
Complete unit ready to install, including EMC filter mat
Fan
Axial, DC motor
Air throughput, unimpeded airflow (with chopped-fibre filter)
With DC: 100 m³/h
Air throughput with matching outlet filter including chopped-fibre filter
With DC: 75 m³/h
Rated operating voltage
24 V (DC)
Power consumption Pel
With DC: 5.7 kW
Rated current max.
With DC: 0.27 A
Dimensions
Width: 204 mm | Height: 204 mm | Depth: 105 mm
Installation depth
84 mm
Mounting cut-out
Cut-out width: 177 mm | Cut-out height: 177 mm
IP protection category to IEC 60 529
IP54 with chopped-fibre filter
Protection category NEMA
Type 12 with chopped-fibre filter
Pre-fuse
Miniature circuit-breaker/fuse: 2 A
Note
To improve energy efficiency and extend the service life of the devices, we recommend the use of thermostats or temperature displays
Operating temperature range
-15 °C...55 °C
Storage temperature range
-30 °C...70 °C
Noise level
With DC: 51 dB(A)
Weight/pack
0.66 kg
Packs of
1 pc(s).
Customs tariff number
84145915
EAN
4028177985537
ETIM 9
EC000320
ETIM 8
EC000320
ECLASS 8.0
27180716
Product description
SK Blue e+ fan-and-filter unit, EMC, 100 m³/h, 24 V (DC), WHD 204 x 204 x 105 mm, RAL 7035
