Part Number: 3240810
Product Information
Extended Description

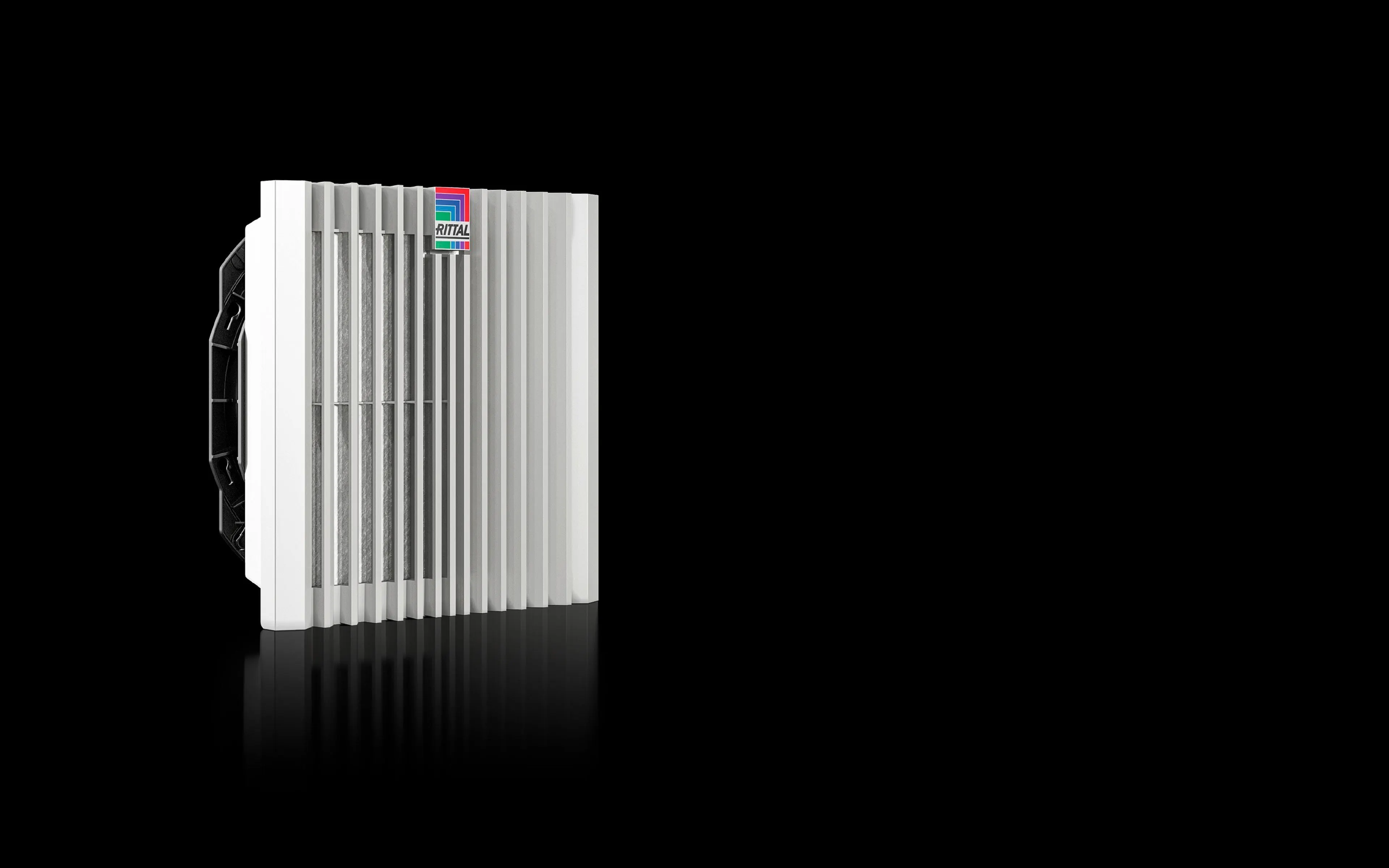

3240810 Rittal: SK Blue e+ fan-and-filter unit, EMC, 175/157 m³/h, 115 V, 1~, 50 Hz/60 Hz, WxHxD 255 x 255 x 129 mm, RAL 7035
Article number
SK 3240.810
Design
wall-mounted | EMC
Product description
EMC fan-and-filter units offer a high shielding/attenuation effect and meet requirement category 2 to EN 61587-3.
Benefits
Easy filter changes, thanks to a new opening mechanism on the louvred grille
Colour
RAL 7035
Supply includes
Complete unit ready to install, including EMC filter mat
Fan
Diagonal, shaded pole motor
Air throughput, unimpeded airflow (with chopped-fibre filter)
At 50 Hz: 175 m³/h | At 60 Hz: 157 m³/h
Air throughput with matching outlet filter including chopped-fibre filter
At 50 Hz: 130 m³/h | At 60 Hz: 112 m³/h
Rated operating voltage
115 V, 1~, 50 Hz/60 Hz
Power consumption Pel
At 50 Hz: 35.5 W | At 60 Hz: 38.2 W
Rated current max.
At 50 Hz: 0.41 A | At 60 Hz: 0.42 A
Dimensions
Width: 255 mm | Height: 255 mm | Depth: 129 mm
Installation depth
108 mm
Mounting cut-out
Cut-out width: 224 mm | Cut-out height: 224 mm
IP protection category to IEC 60 529
IP54 with chopped-fibre filter
Protection category NEMA
Type 12 with chopped-fibre filter
Pre-fuse
Miniature circuit-breaker/fuse: 4 A
Note
To improve energy efficiency and extend the service life of the devices, we recommend the use of thermostats or temperature displays
Operating temperature range
-30 °C...55 °C
Storage temperature range
-30 °C...70 °C
Noise level
At 50 Hz: 48 dB(A) | At 60 Hz: 45 dB(A)
Weight/pack
1.82 kg
Packs of
1 pc(s).
Customs tariff number
84145915
EAN
4028177998087
ETIM 9
EC000320
ETIM 8
EC000320
ECLASS 8.0
27180716
Product description
SK Blue e+ fan-and-filter unit, EMC, 175/157 m³/h, 115 V, 1~, 50 Hz/60 Hz, WxHxD 255 x 255 x 129 mm, RAL 7035
